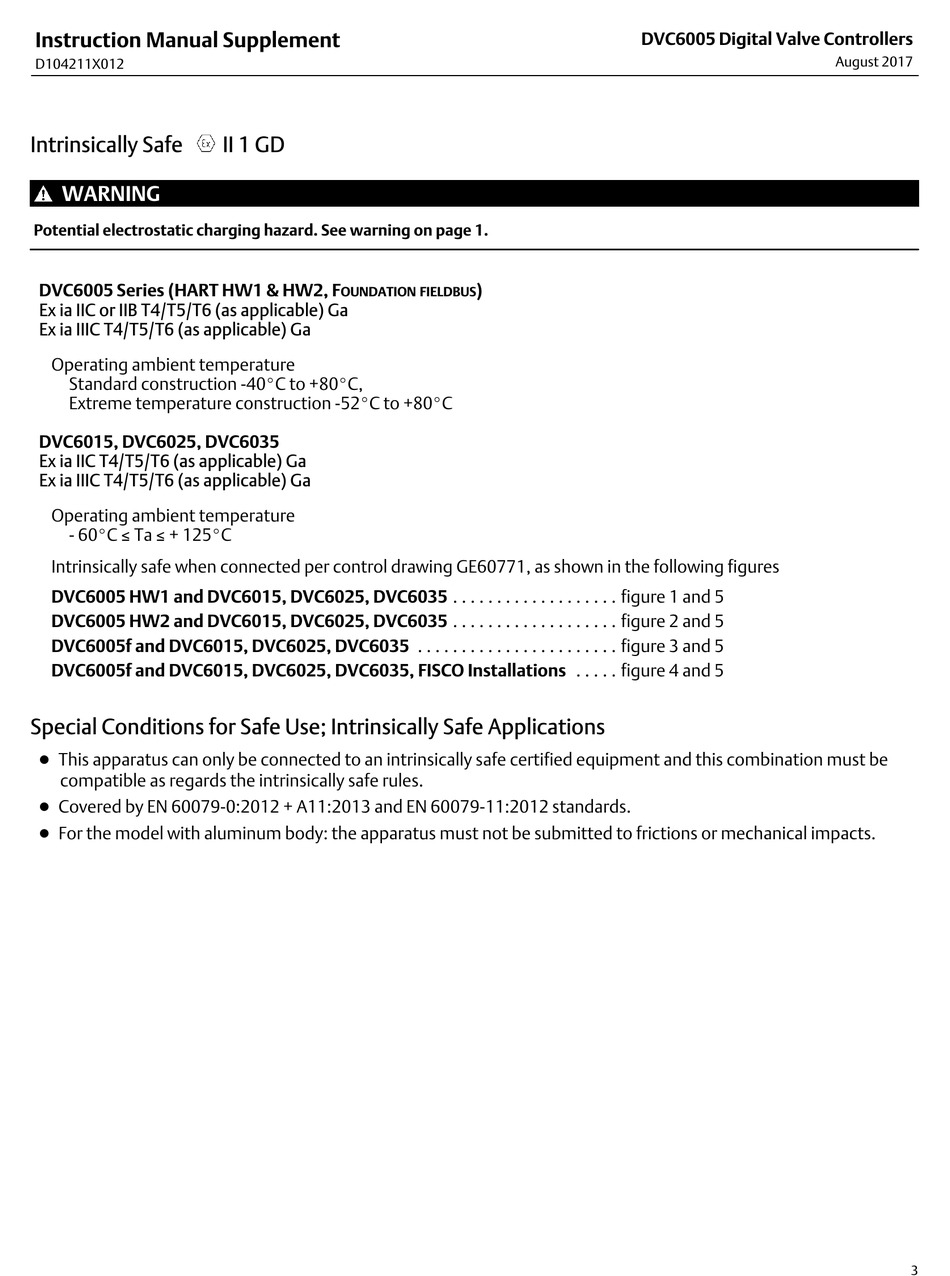

Instruction Manual Supplement
D104211X012
Intrinsically Safe
WARNING
Potential electrostatic charging hazard. See warning on page 1.
DVC6005 Series (HART HW1 & HW2, F
Ex ia IIC or IIB T4/T5/T6 (as applicable) Ga
Ex ia IIIC T4/T5/T6 (as applicable) Ga
Operating ambient temperature
Standard construction -40_C to +80_C,
Extreme temperature construction -52_C to +80_C
DVC6015, DVC6025, DVC6035
Ex ia IIC T4/T5/T6 (as applicable) Ga
Ex ia IIIC T4/T5/T6 (as applicable) Ga
Operating ambient temperature
- 60_C ≤ Ta ≤ + 125_C
Intrinsically safe when connected per control drawing GE60771, as shown in the following figures
DVC6005 HW1 and DVC6015, DVC6025, DVC6035
DVC6005 HW2 and DVC6015, DVC6025, DVC6035
DVC6005f and DVC6015, DVC6025, DVC6035
DVC6005f and DVC6015, DVC6025, DVC6035, FISCO Installations
Special Conditions for Safe Use; Intrinsically Safe Applications
D This apparatus can only be connected to an intrinsically safe certified equipment and this combination must be
compatible as regards the intrinsically safe rules.
D Covered by EN 60079­0:2012 + A11:2013 and EN 60079­11:2012 standards.
D For the model with aluminum body: the apparatus must not be submitted to frictions or mechanical impacts.
II 1 GD
OUNDATION FIELDBUS
)
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . .
DVC6005 Digital Valve Controllers
figure 1 and 5
figure 2 and 5
figure 3 and 5
figure 4 and 5
August 2017
3
