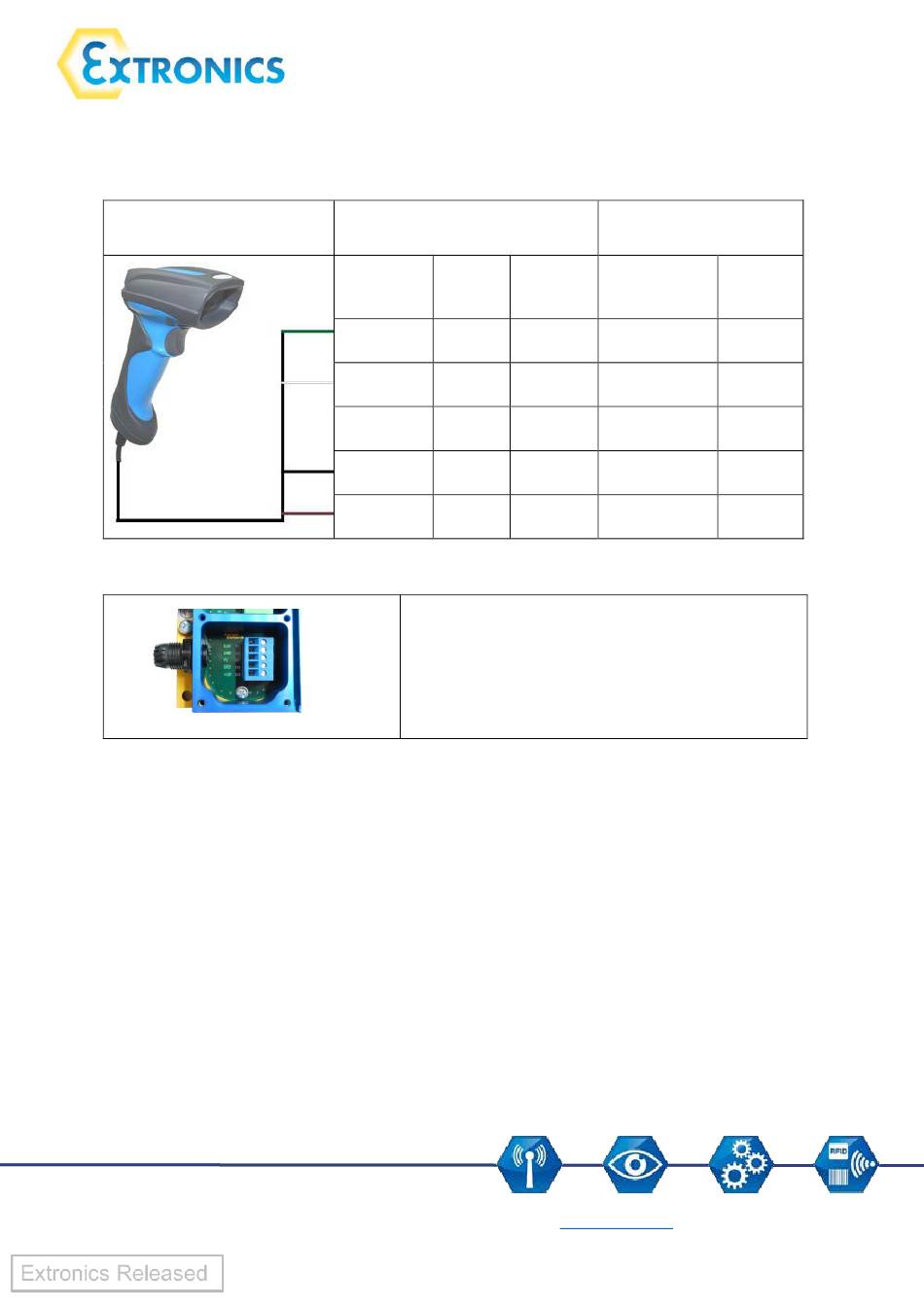

5.5 Direct connection of scanner without plug connection to the USB iSCANPS –
connection with cable end sleeve
Pin assignment of scanner
Extronics Limited
1 Dalton Way, Midpoint 18, Middlewich, Cheshire, UK. CW10 0HU
Tel: +44 (0) 845 277 5000 Fax: +44 (0)845 277 4000 E-mail: info@extronics.com Web:
USB connection cable
(iSCAN1XXCAB3, 4)
RJ45 Pin Wire
assignment colours
2 Green
10 White
4 Black
7 Brown
Intrinsically safe connection box
of the USB iSCANPSX power supply
after removal of the wires of the plug connection
Power supply
(iSCANPS2, 4, 6, 8)
Definition Connection
terminal
power supply
D+ X9
D- X10
X11
GND X12
+UB X13
www.extronics.com
Definition
D+
D-
PE
GND
+UB
