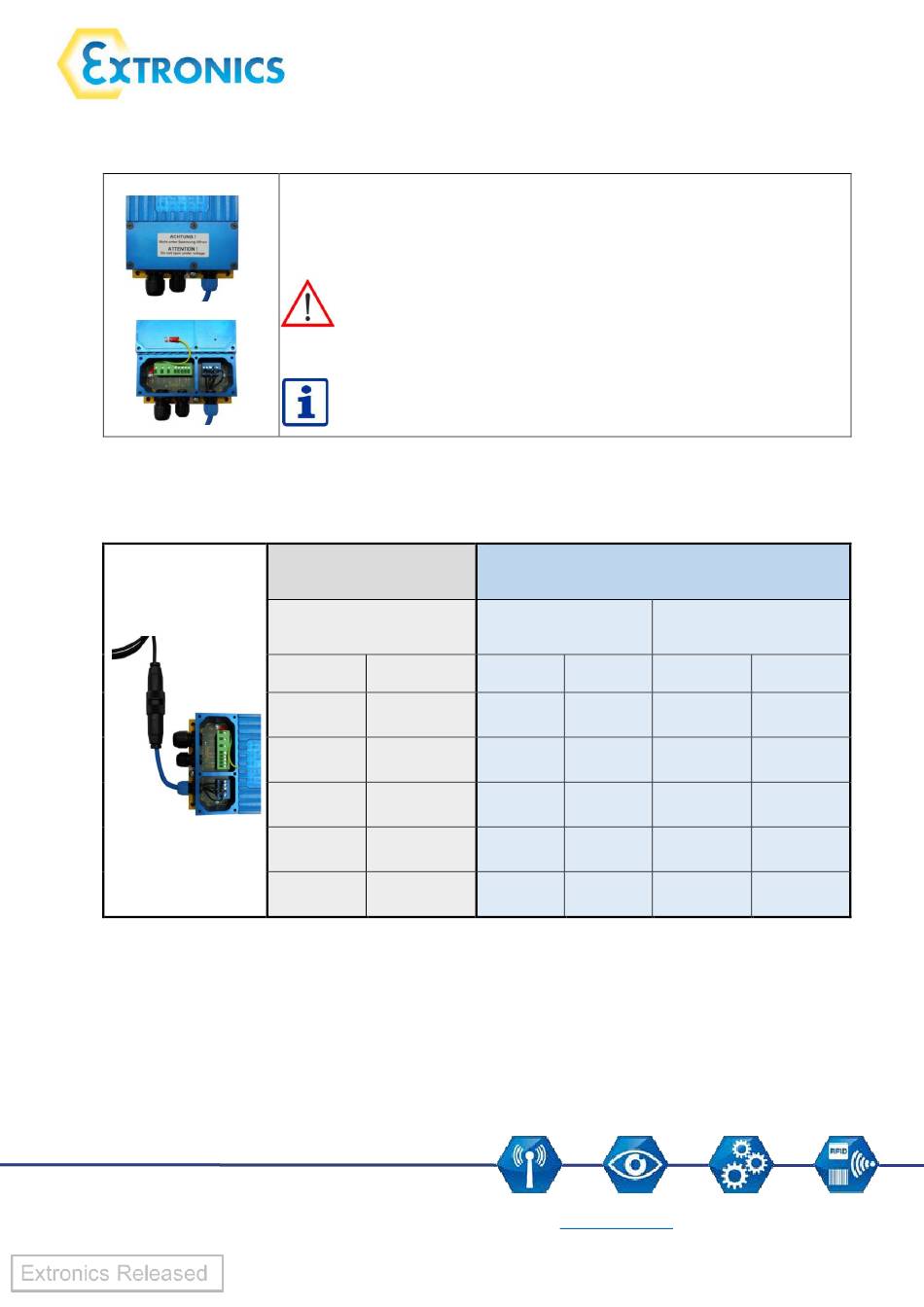

5.4 Connection of USB iSCANPSX power supply
Pin assignment of the plug connector and the pin assignment of the direct connections to the
power supply iSCANPSX:
Extronics Limited
1 Dalton Way, Midpoint 18, Middlewich, Cheshire, UK. CW10 0HU
Tel: +44 (0) 845 277 5000 Fax: +44 (0)845 277 4000 E-mail: info@extronics.com Web:
The terminal assignment is located underneath the removable cover at the
front of the power supply.
Caution: Do not open enclosure in the hazardous area.
Before operating the device in a hazardous area you have to ensure
that the enclosure has been closed fully and all screws have been
tightened.
Cables may only be connected by trained staff.
USB cable
iSCAN1XXCAB3, 4
Pin assignment
connection coupling
Pin Definition
3 D+
2 D-
4 GND
1 +UB
Power supply
iSCANPS2, 4, 6, 8
Pre-assembled
Connection coupling
Pin Wire
3 3
2 4
4 2
1 1
www.extronics.com
Connection box
Definition Number
D+ X9
D- X10
PE X11
GND X12
+UB X13
