ASSEMBLY INSTRUCTIONS
®
RiverRidge

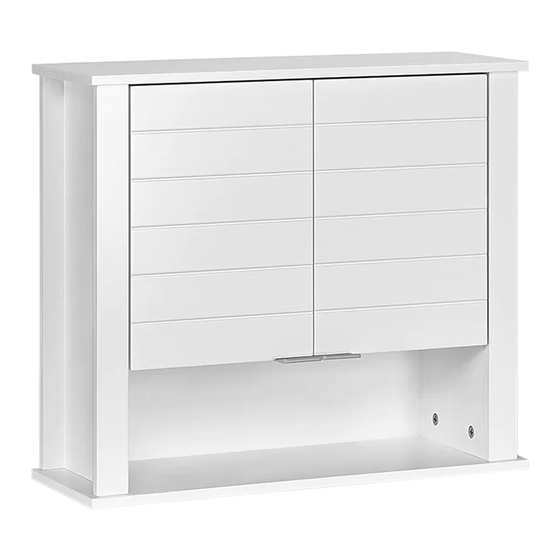

Madison Two-Door Wall Cabinet
ITEM #: 06-109 White
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken in
unpacking and assembling this item to keep small parts away from children.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RiverRidge Madison 06-109
Summary of Contents for RiverRidge Madison 06-109

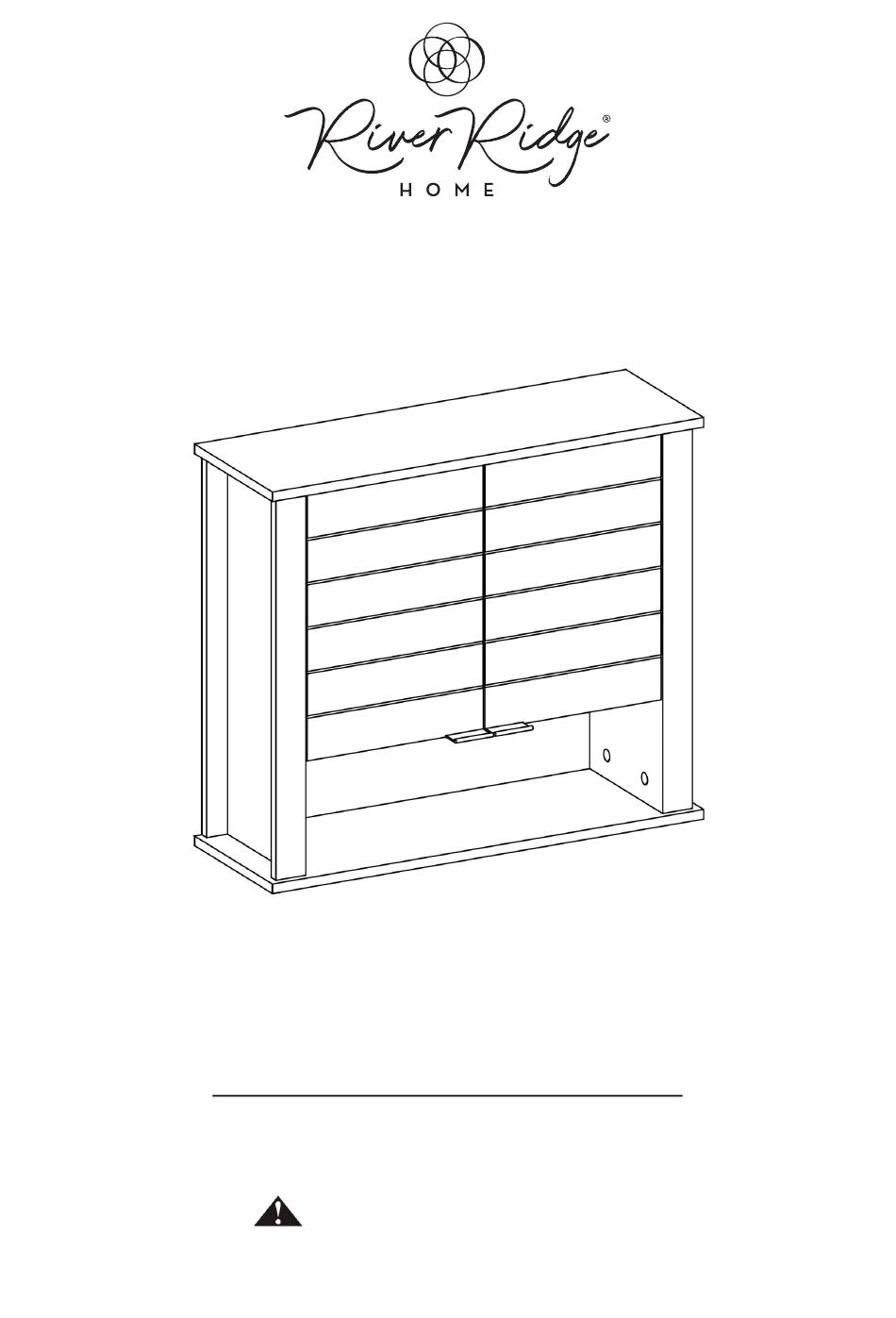

- Page 1 ASSEMBLY INSTRUCTIONS ® RiverRidge Madison Two-Door Wall Cabinet ITEM #: 06-109 White ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF OR A TOTAL OF 60 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS OR 60 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH. MORE THAN 20 POUNDS PER SHELF OR 60 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM THE WALL AND CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board Bottom Board Left Side Panel Right Side Panel Rear Cross Bar Shelf Adjustable Shelf Left Door Right Door Upper Back Panel Lower Back Panel... - Page 4 PARTS LIST PARTS QTY DESCRIPTION 12PCS Cam Bolt 12PCS Cam Lock 6PCS Wood Dowel (6 x 30mm) Metal Shelf Holder 4PCS 4PCS Hinge 2PCS Handle 28PCS Screw (4 x 12mm) Plastic Connection Strip 14PCS Screw (2.5 x 10mm) 2PCS Plastic Anchor 2PCS Screw (5 x 45mm) 2PCS...
- Page 5 STEP 1 1. Screw 4 cam bolts (A) into pre-threaded holes on top board (1). 2. Screw 4 cam bolts (A) into pre-threaded holes on bottom board (2). STEP 2 1. Screw 2 cam bolts (A) into pre-threaded holes on left side panel (3). 2.
- Page 6 STEP 4 1. Insert 2 wood dowels (C) into wood dowel holes on top board (1). 2. Attach top board (1) to left side panel (3), right side panel (4) and rear cross bar (5) by inserting wood dowels into wood dowel holes on rear cross bar (5) and inserting cam bolts into cam lock holes on left side panel (3) and right side panel (4).
- Page 7 STEP 6 1. Attach 2 hinges (E) to left door (8) by inserting 4 screws (G) through holes on hinges (E), then tighten to left door (8). 2. Attach 1 handle (F) to left door (8) by inserting 2 screws (G) through holes on handle (F), then tighten to left door (8).
- Page 8 STEP 8 1. Place drawing on wall in desired position and drill 2 holes through hole positions on drawing. 2. Insert 2 plastic anchors (J) into the holes. 3. Align holes on cabinet with holes on wall, then insert 2 screws (K) through holes on back of cabinet and tighten cabinet to wall.
- Page 9 Cabinet! Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. ® To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com RiverRidge ®...
