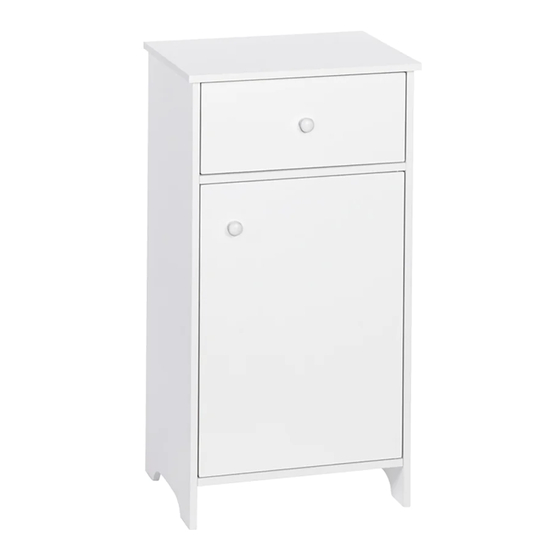

RiverRidge® MEDORD SINGLE DOOR FLOOR CABINET
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children.
WARNING
Young children can be seriously injured or killed if furniture tips over. Don't use this
item for a TV stand or place heavy objects on top of item. Always use angle-braces or
anchors to secure furniture to the wall.
ASSEMBLY INSTRUCTIONS
ITEM# 06-102 WHITE
ITEM# 06-103 ESPRESSO
ADULT ASSEMBLY REQUIRED
SEE FULL WARNING ON PAGE 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RiverRidge MEDORD 06-102
Summary of Contents for RiverRidge MEDORD 06-102
- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge® MEDORD SINGLE DOOR FLOOR CABINET ITEM# 06-102 WHITE ITEM# 06-103 ESPRESSO ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children.
- Page 2 Send requests for missing or damaged parts by email to: customer.service@ssi-rr.com or call toll free 1-(844)-223-5201 or order parts on line at www.riverridgehome.com THIS CABINET WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS OR 75 POUNDS TOTAL WEIGHT.
-
Page 3: Parts List
PARTS LIST DESCRIPTION TOP BOARD LEFT SIDE PANEL RIGHT SIDE PANEL CROSS BAR BACK BOARD DOOR ADJUSTABLE SHELF BOTTOM BOARD DRAWER FRONT BOARD DRAWER LEFT SIDE PANEL DRAWER RIGHT SIDE PANEL DRAWER BACK BOARD DRAWER BOTTOM BOARD... - Page 4 PARTS DESCRIPTION 10PCS CAM BOLT 5x35mm 10PCS CAM LOCK 15x10mm 4PCS WOOD DOWEL MAGNET 6PCS SCREW 3x14mm 2PCS METAL BRACKET 2PCS SCREW 3x10mm 4PCS SHELF HOLDER 5PCS SCREW 4x35mm MAGNET PLATE 2PCS DOOR PIN 2PCS SCREW 4x25mm 2PCS KNOB PLASTIC LOCK STRIP PLASTIC ANCHOR 4PCS PLASTIC BRACKET...
- Page 5 STEP 1 STEP 1 1. Screw 4 cam bolts (A) into pre-threaded holes on top board (1). 2. Attach 1 metal bracket (F) to top board (1) by inserting 1 screw (G) through hole on metal bracket (F) and tighten to top board (1). 3.
- Page 6 STEP 3 STEP 3 1. Attach magnet (D) to cross bar (4) by inserting 2 screws (E) through holes on magnet (D) and tighten to cross bar (4). 2. Insert 2 wood dowels (C) into wood dowel holes on left side panel (2). 3.
- Page 7 STEP 5 STEP 5 1. Insert 2 wood dowels (C) into wood dowel holes on cross bar (4) and bottom board (8). 2. Attach right side panel (3) to cross bar (4) and bottom board (8) by inserting wood dowels (C) into wood dowel holes on right side panel (3).
- Page 8 STEP 7 STEP 7 1. Screw 4 cam bolts (Q) into pre-threaded holes on drawer front board (9). 2. Attach drawer left side panel (10) and drawer right side panel (11) to drawer back board (12) by inserting 4 screws (I) through holes on drawer left side panel (10) and drawer right side panel (11), then tighten to drawer back board (12).
- Page 9 STEP 9 STEP 9 1. Attach drawer slider (V) and (W) to bottom of assembled drawer by inserting 4 screws (S) through holes on drawer slider (V) and (W), then tighten to bottom of assembled drawer. STEP 10 STEP 10 1.
- Page 10 STEP 11 STEP 11 1. Attach 4 brackets (P) to back of cabinet by inserting 4 screws (E) through holes on brackets (P) and tighten to cabinet. STEP 12 STEP 12 1. Place drawing with hole position on wall in desired location and drill 1 hole through the hole position on the drawing.
