RiverRidge 02-188 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. RiverRidge Manuals
  4. Indoor Furnishing
  5. 02-188
  6. Assembly instructions manual

RiverRidge 02-188 Assembly Instructions Manual

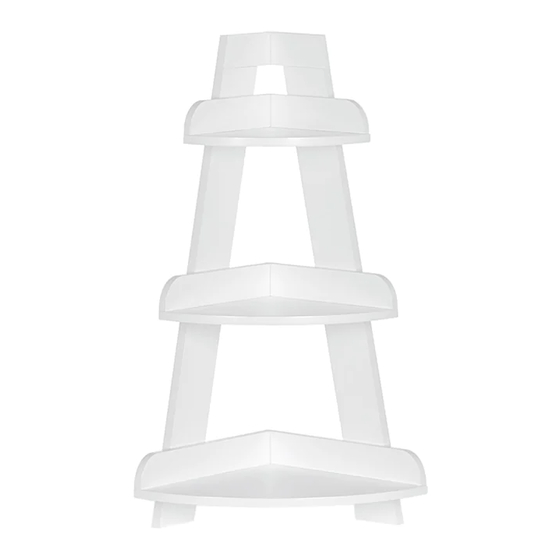

Corner ladder wall shelf, white/gray
Hide thumbs

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
RiverRidge
Corner Ladder Wall Shelf
®
ITEM #: 02-188/06-132 White
ITEM #: 02-189/06-133 Gray
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.
