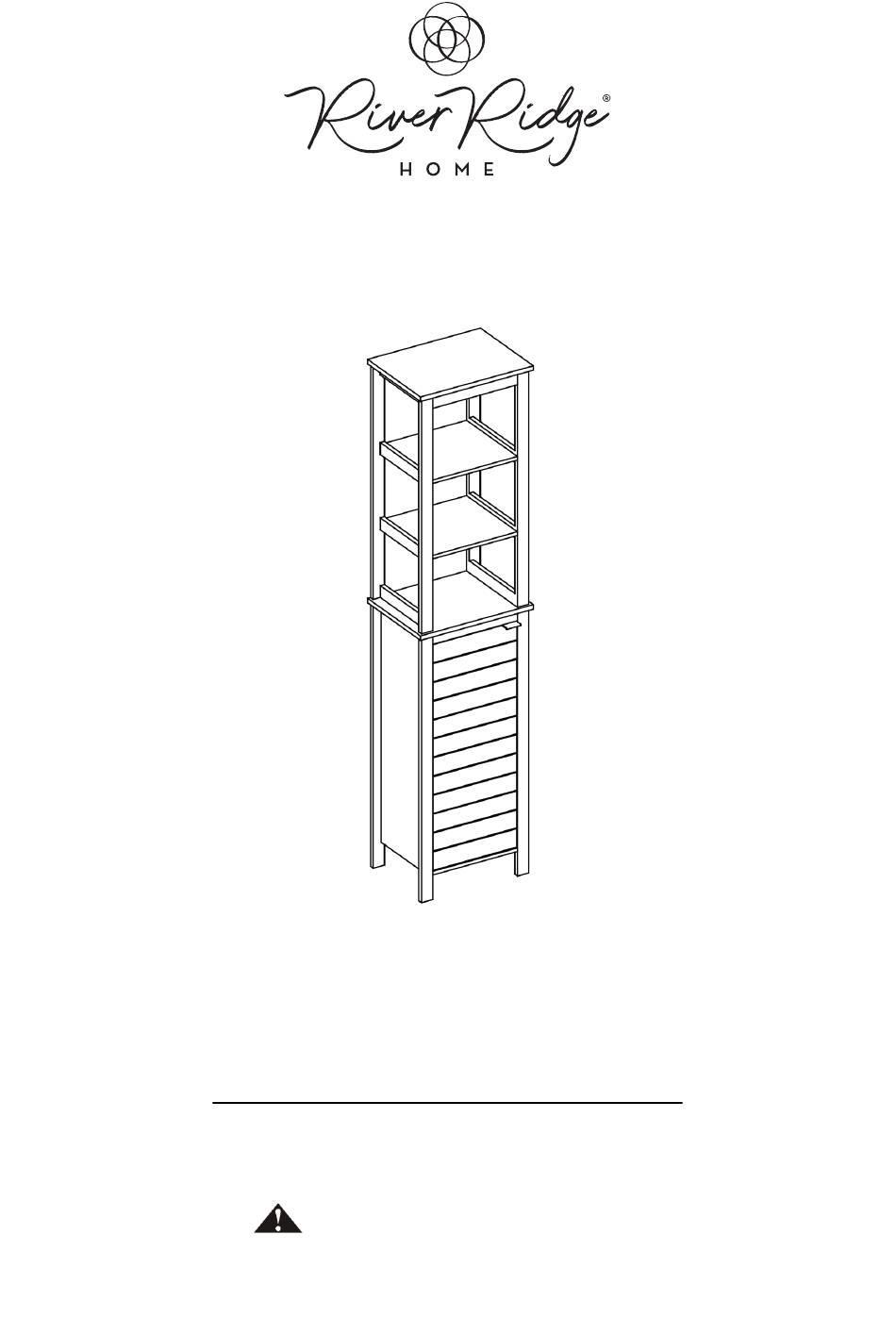

ASSEMBLY INSTRUCTIONS

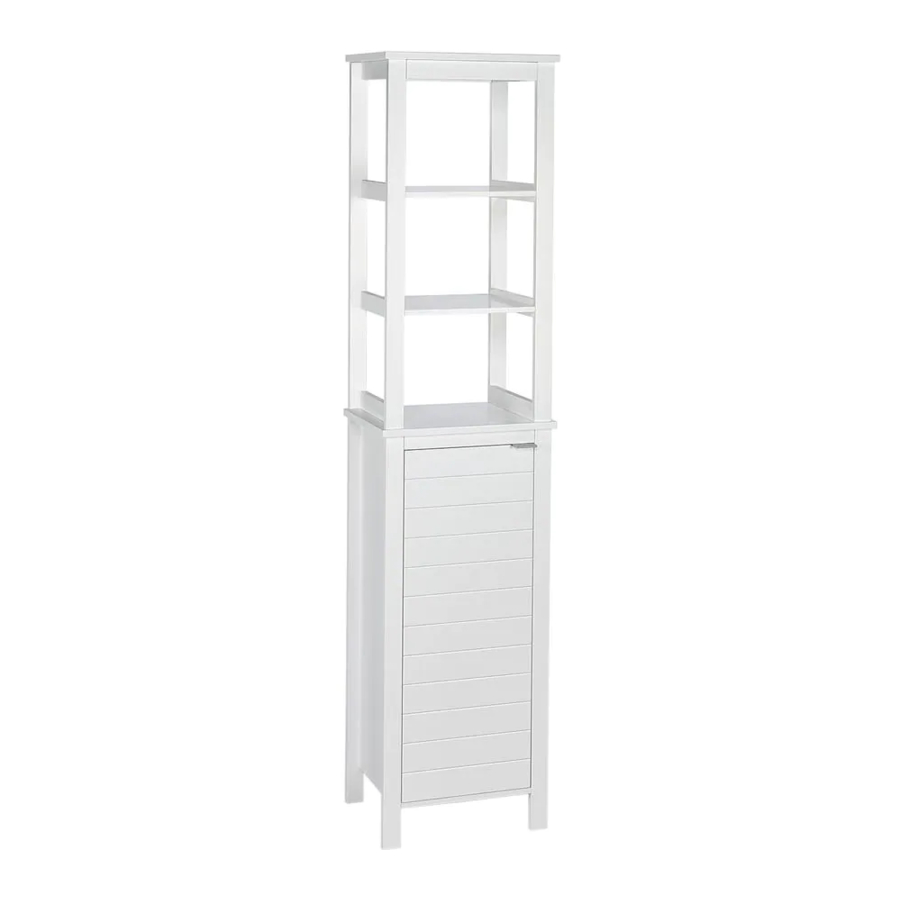

RiverRidge
®
Madison Tall Cabinet
ITEM #: 06-108 White
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken in
unpacking and assembling this item to keep small parts away from children.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Madison Tall Cabinet 06-108 and is the answer not in the manual?

Questions and answers

Related Manuals for RiverRidge Madison Tall Cabinet 06-108

Summary of Contents for RiverRidge Madison Tall Cabinet 06-108

  • Page 1 ASSEMBLY INSTRUCTIONS RiverRidge ® Madison Tall Cabinet ITEM #: 06-108 White ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children.
  • Page 2 THIS SHELF UNIT WILL HOLD UP TO 20 POUNDS PER SHELF OR A TOTAL OF 120 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 20 POUNDS OR 120 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 20 POUNDS PER SHELF OR 120 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM THE WALL AND CAUSE SERIOUS INJURY OR DEATH.

  • Page 3: Parts List

    PARTS LIST DESCRIPTION Top Board 2PCS Upper Shelf Middle Connection Board Lower Shelf Lower Adjustable Shelf Bottom Board Upper Front Cross Bar Lower Cross Bar 2PCS Upper Side Frame Lower Left Side Panel Lower Right Side Panel Door Back Board Upper Back Cross Bar...
  • Page 4 PARTS LIST PARTS DESCRIPTION 24PCS Cam Bolt 24PCS Cam Lock 32PCS Wood Dowel (6 x 30mm) Metal Shelf Holder 4PCS 2PCS Hinge Handle 14PCS Screw (4 x 12mm) 2PCS Screw (5 x 45mm) 4PCS Screw (4 x 35mm) 14PCS Screw (2.5 x 10mm) 2PCS Plastic Anchor TOOLS NEEDED FOR ASSEMBLY: FLAT &...
  • Page 5 STEP 1 1. Screw 4 cam bolts (A) into pre-threaded holes on top board (1). 2. Screw 4 cam bolts (A) into pre-threaded holes on middle connection board (3). STEP 2 1. Screw 4 cam bolts (A) into pre-threaded holes on upper side frame (9). 2.
  • Page 6 STEP 4 Insert 8 wood dowels (C) into wood dowel holes on upper side frame (9). Attach upper side frame (9) to upper front cross bar (7) and upper shelves (2) by inserting wood dowels (C) into wood dowel holes on upper front cross bar (7), upper back cross bar (14) and inserting cam bolts (A) into cam lock holes on upper shelves (2).
  • Page 7 STEP 6 1. Insert 6 wood dowels (C) into wood dowel holes on lower left side panel (10). 2. Attach lower Left side panel (10) to lower cross bar (8), lower shelf (4) and bottom board (6) by inserting wood dowels (C) into wood dowel holes on lower cross bar (8) and inserting cam bolts and wood dowels into cam lock holes on lower shelf (4) and bottom board (6).
  • Page 8 STEP 8 1. Attach back board (13) to cabinet by inserting 14 screws (J) through holes on back board (13), then tighten to back of cabinet. STEP 9 1. Attach 2 hinges (E) to door (12) by inserting 4 screws (G) through holes on hinges (E), then tighten to door (12).
  • Page 9 STEP 10 Door Adjustments 1. Attach door (12) to cabinet by inserting 8 screws (G) through holes on hinges (E), then tighten to lower left side panel (10). 2. Note: Tightening screw in position “a” will adjust door up or down; tightening screw in position “b” will adjust door to or from cabinet and tightening screw in position “c”...
  • Page 10 STEP 12 1. Insert 4 metal holders (D) into holes at desired positions. 2. Place lower adjustable shelf (5) onto metal holders (D). ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children.
  • Page 11 Cabinet! Thank you for purchasing this RiverRidge ® Home item. We hope you enjoy it and consider purchasing other RiverRidge ® items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com RiverRidge ®...
