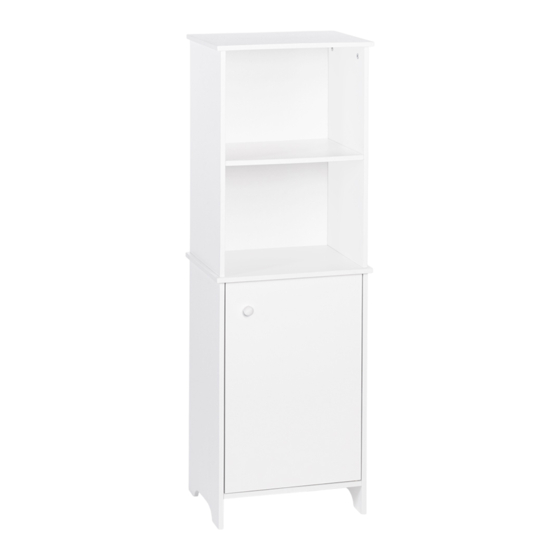

RiverRidge® MEDFORD TALL CABINET
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children.
WARNING
Young children can be seriously injured or killed if furniture tips over. Don't use this
item for a TV stand or place heavy objects on top of item. Always use angle-braces or
anchors to secure furniture to the wall.
ASSEMBLY INSTRUCTIONS
ITEM# 06-106 WHITE
ITEM# 06-107 ESPRESSO
ADULT ASSEMBLY REQUIRED
SEE FULL WARNING ON PAGE 2
Advertisement
Related Manuals for RiverRidge 06-106
Summary of Contents for RiverRidge 06-106
- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge® MEDFORD TALL CABINET ITEM# 06-106 WHITE ITEM# 06-107 ESPRESSO ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children.
- Page 2 Send requests for missing or damaged parts by email to: customer.service@ssi-rr.com or call toll free 1-(844)-223-5201 or order parts on line at www.riverridgehome.com THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 100 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS OR 100 POUNDS TOTAL WEIGHT.
-
Page 3: Parts List
PARTS LIST DESCRIPTION TOP BOARD UPPER LEFT SIDE PANEL UPPER RIGHT SIDE PANEL TOP SHELF MIDDLE CONNECTION BOARD DOOR ADJUSTABLE SHELF BOTTOM BOARD LOWER LEFT SIDE PANEL LOWER RIGHT SIDE PANEL 2PCS UPPER BACK BOARD LOWER BACK BOARD... - Page 4 PARTS DESCRIPTION 14PCS CAM BOLT 14PCS CAM LOCK 8PCS WOOD DOWEL MAGNET 10PCS SCREW 3x14mm 2PCS METAL BRACKET 2PCS SCREW 3x10mm 4PCS SHELF HOLDER 5PCS SCREW 4x35mm MAGNET PLATE 2PCS DOOR PIN SCREW 4x25mm KNOB PLASTIC LOCK STRAP PLASTIC ANCHOR 8PCS PLASTIC BRACKET TOOLS NEEDED FOR ASSEMBLY: FLAT &...
- Page 5 STEP 1 STEP 1 1. Screw 4 cam bolts (A) into pre-threaded holes on top board (1). 2. Attach 1 metal bracket (F) to top board (1) by inserting 1 screw (G) through hole on metal bracket (F) and tighten to top board (1). 3.
- Page 6 STEP 4 STEP 4 1. Attach magnet plate (J) to door (6) by inserting 1 screw (G) through hole on magnet plate (J) and tighten to door (6). 2. Attach knob (M) to door (6) by inserting 1 screw (L) through hole on door (6) and tighten to knob (M). 3.
- Page 7 STEP 6 STEP 6 1. Slide 1 upper back board (11) into grooves on upper left side panel (2), upper right side panel (3) and top shelf (4). 2. Insert 2 wood dowels (C) into wood dowel holes on upper left side panel (2) and upper right side panel (3).
- Page 8 STEP 8 STEP 8 1. Insert 1 wood dowel (C) into wood dowel hole on lower left side panel (9). 2. Attach bottom board (8) to lower left side panel (9) by inserting wood dowel (C) into wood dowel hole and inserting cam bolts (A) into cam lock holes on bottom board (8).
- Page 9 STEP 10 STEP 10 1. Insert 4 shelf holders (H) into holes on lower left side panel (9) and lower right side panel (10) and make sure all 4 holders are on same level. 2. Place adjustable shelf (7) onto shelf holders (H). STEP 11 STEP 11 1.
- Page 10 STEP 12 STEP 12 1. Place drawing with hole position on wall in desired location and drill 1 hole through the hole position on the drawing. 2. Insert plastic anchor (O) into hole and attach metal bracket (F) to plastic anchor (O) by inserting 1 screw (I) through hole on metal bracket (F) and tighten to plastic anchor (O).
