- Page 1 DYSCOVI SYSTEMS RPE LIMITED Company code 16303375, account №260075014037759 In “UKREXIMBANK” in Kyiv MFI 380333, tax number 163033726585 95-S Vidradniy avenue, Kyiv, Ukraine, 03061. Phone +38044 507 02 07. Fax +38044 507 02 02. www.bitrek.com.ua, sales@bitrek.com.ua Vehicles Tracking Device BI-520L TREK Operating manual Version 2019.09.1...
-
Page 2: Table Of Contents
Introduction ..................3 Safety requirements within installation and maintenance of "BI-520L TREK" tracking device ..................3 Transportation and storage ................ 3 Warranty ....................3 Device ....................3 Purpose ....................3 Operation principles .................. 4 Technical specifications ................5 Design of tracking device ................6 Supply package .................. -
Page 3: Introduction
Transportation and storage shall comply with requirements specified by the signs on the packages. Warranty Warranty period of operation of tracking device "BI-520L TREK" is 12 months from the date of sale of the device. The warranty obligations of the manufacturer are valid if the consumer observes the requirements of this manual. -
Page 4: Operation Principles
Tracking device "BI-520L TREK" shall be applied to solve issues of navigation, remote control and monitoring of a vehicle or other remote object. The tracking device is designed to be installed on any mobile or remote stationary object in order to: ... -
Page 5: Technical Specifications
20 Relative humidity of air (80±15)% 21 Dimensions (L x W x H) (96 x 60 x 14) mm 22 Weight of the device 65 gram 23 Housing protection class IP54 24 Housing material Plastic ABS UL94V0 www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07... -
Page 6: Design Of Tracking Device

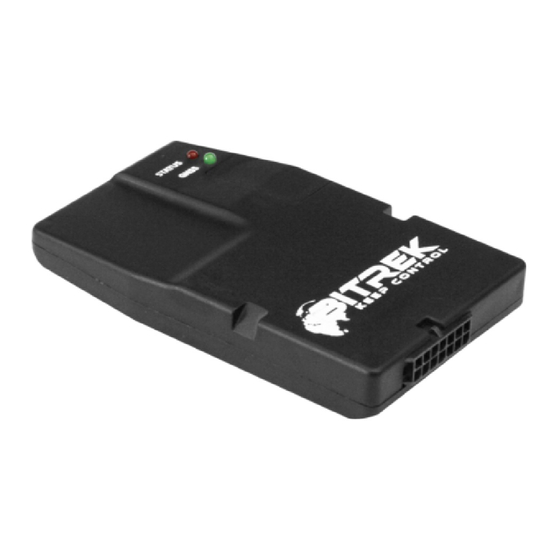

Figure 1. Figure 1 - Appearance and design of the device. Supply package The tracking device "BI-520L TREK" is provided with the following set: 1. Tracking device "BI-520L TREK" - 1 piece. 2. Connection cable - 1 piece. -
Page 7: Connector For Power Supply And Peripherals
Location and numbering of contacts are shown in Figure 3. Marking of connector pins for power supply, sensors and peripherals is shown in Table 2. Figure 3 - Location and numbering of contact elements. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07... -
Page 8: Assembly, Commissioning
Power supply wires are laid through the maintenance holes in the body of the vehicle from the regular battery location to the place of installation of the tracking device. Power wires are connected to the corresponding battery terminals. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07... -
Page 9: Device To Computer Connection
SIM-card slot. To access the socket, remove the side cover of the device. Procedure of connection of USB-UART converter cable is shown in Figure 4. Figure 4 - Connection of the cable of USB-UART converter to the device "BI- 520L TREK". www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07... -
Page 10: Description Of Indication Elements
Adjustment of "BI-520L TREK" device Basic information The tracking device "BI-520L TREK" can be configured in following ways: 1. With a direct connection of the device to a computer. -
Page 11: List Of Information Commands To Operate The Device
(not to be confused with the IP address of the server); GSM - level of GSM signal (1 - minimum, 5 - maximum); Roaming - SIM-card in roaming (0 - home network, 1 - roaming). www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07... - Page 12 Example of response: «DO1: 0 VPSV: 12996mV VBAT: 4121 AIN1: 37mV», where: DO1: 0 - current state of the discrete output; VPSV - external power supply, millivolts; VBAT – internal battery voltage, millivolts; AIN1: 37mV - analog input voltage, millivolts. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
- Page 13 Val - current value of parameter. Example of the command to request APN of the device (a parameter that contains the APN device has ID 0242) - getparam 0242; Example of response: «Param ID 0242 Val: gps.utel.ua». www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
-
Page 14: List Of Control Commands To Operate The Device
Command to be sent - setparam ####; Parameter ID (####) consists of four digits and indicates the number of the parameter. All configurable parameters are specified in the list of device parameters (see Appendix 1 Appendix www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07... - Page 15 Example of command to update the software: «BOOT fw.bitrek.ua,80,*.bin;» , where: «HOST» - (fw.bitrek.ua,) - address of server locating the update files; «PORT» - (80,) - port of server locating the update files; «Firmware» - (*.bin;) - binary update file, where * - the firmware version, .bin - file extension.
-
Page 16: Basic Configuration
When sending commands via SMS, set the login and password of SMS access. To set the login use ID 0252 parameter, to set the password use ID 0253. To set the login and password, any SMS command shall have the following structure to be sent: www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07... -
Page 17: Adjustment Of I/O Elements
SMS with commands. Adjustment of I/O elements The tracking device "BI-520L TREK" is able to collect, process and send to the server the data received from various sensors. Each sensor is an I/O element and has a group consisting of 6 parameters for setting. For example, to set the value of power supply voltage level to the server, use group of parameters of ID 0410/0411/0412/0413/0414/0415. - Page 18 Parameter 3 - Lower limit - set the lower limit of the I/O element. Parameter 4 - Set the type of the generated event: 0 - Returning to the range. At a specific range of sensor values (range of values is specified as www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
- Page 19 Example: The lower voltage limit is set to 0, the upper limit is set to 10 V (10 000 mV). Rising of the voltage above 10 V will generate the event (see Figure 6). www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
- Page 20 5 - Monitoring + leaving the range. When there is generated the event after leaving the range, the actual value of the sensor starts to be www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
-
Page 21: Notifications
SMS, shall be defined as a trigger for outgoing SMS messages. In addition to the SMS message you can add customized text, where the text length shall not exceed 30 characters in the Latin alphabet. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07... -
Page 22: Roaming Options
Roaming options The tracking device "BI-520L TREK" is able to operate in two modes: in the home network mode and in the operating mode with a predetermined list of authorized operators. Operation mode is set with ID 0917 parameter. In the home network mode (ID 0917 = 0), the device makes attempts to register in a home network of installed SIM-card. -
Page 23: Appendix 1 - Device Parameters
PORT of backup server 20127 Operation with the ConfServEna 0908 1 byte configuration server (0 - disabled, 1 - enabled) IP or DNS of WEB configuration configurator.bitrek. settingsHost 0220 string server com.ua PORT of WEB configuration settingsPort 0221 2 byte... - Page 24 Period of readout by time at Day Period 0903 2 byte second ignition on Period of readout by time at Night Period 0011 2 byte second ignition off Dist Period 0012 2 byte Period of readout by distance www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
- Page 25 1 byte km/hour detection Axel Sleep Sleep mode by accelerometer 0911 1 byte Enable (0 - disabled, 1 - enabled) Weit_sleep_tim Timeout to go to sleep mode 4007 2 byte eout by accelerometer www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
- Page 26 0268 string Authorized telephone number Phone8 0269 string SMS Login 0252 string Access login by SMS SMS Password 0253 string Access password by SMS DevicePIN 0910 string Access password to the device 11111 www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
- Page 27 SIM-card) Time synchronization via NTP NTP_Ena 0909 1 byte (1 – enabled, 0 – disabled) GPRS_stayalive 0907 2 byte GPRS session lifetime min. Notification Authorization of outgoing voice RingEnable 0913 1 byte calls www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
- Page 28 0957 2 byte analog input No. 1 filtering (1 - c.u. off; 2 - 65535) Coefficient of median filtering Ain1Per 0959 1 byte for analog input No. 1 (from 1 c.u. to 256) www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
-
Page 29: Appendix 2 - List Of I/O Elements
Operator code ModemStat 0750/0751/0752/0753/0754/0755 Modem status Registration status in the GSM GSM Stat 0760/0761/0762/0763/0764/0765 network Registration status in the GPRS GPRS net stat 0770/0771/0772/0773/0774/0775 network GPRS content 0780/0781/0782/0783/0784/0785 Activation status of GPRS content stat www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07... - Page 30 When using the Wialon IPS protocol, the values of the parameters id_Send 44, 45, 47 are transferred in “g” When using the Teltonika protocol, the values of the parameters id_Send 44, 45, 47 are transferred in “g * 100” www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
- Page 31 Added new I/O element IDconf 0907 11.01.2019 Ver.2019.01.1 Added detailed description of the parameter ID_Send 240 21.02.2019 Ver.2019.02.1 Added detailed description of id_Send parameters 44, 45, 47 05.09.2019 Ver.2019.09.1 Added description of parameters ID_Conf 4018, 4019 www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
