OOO NPP "DISC SYSTEMS"
EDRPOU 16303375, a/c No. 260075014037759
in PAO "UKREKSIMBANK" in Kiev
MFO 380333, INN 163033726585
95-C Otradny Prospekt, Kiev, 03061, Ukraine, phone +38044 507 02 07, fax 038044 507 02 02 www.bitrek.com.ua, sales@bitrek.com.ua
Phone +38044 507 02 07. Fax +38044 507 02 02. www.bitrek.com.ua,
sales@bitrek.com.ua

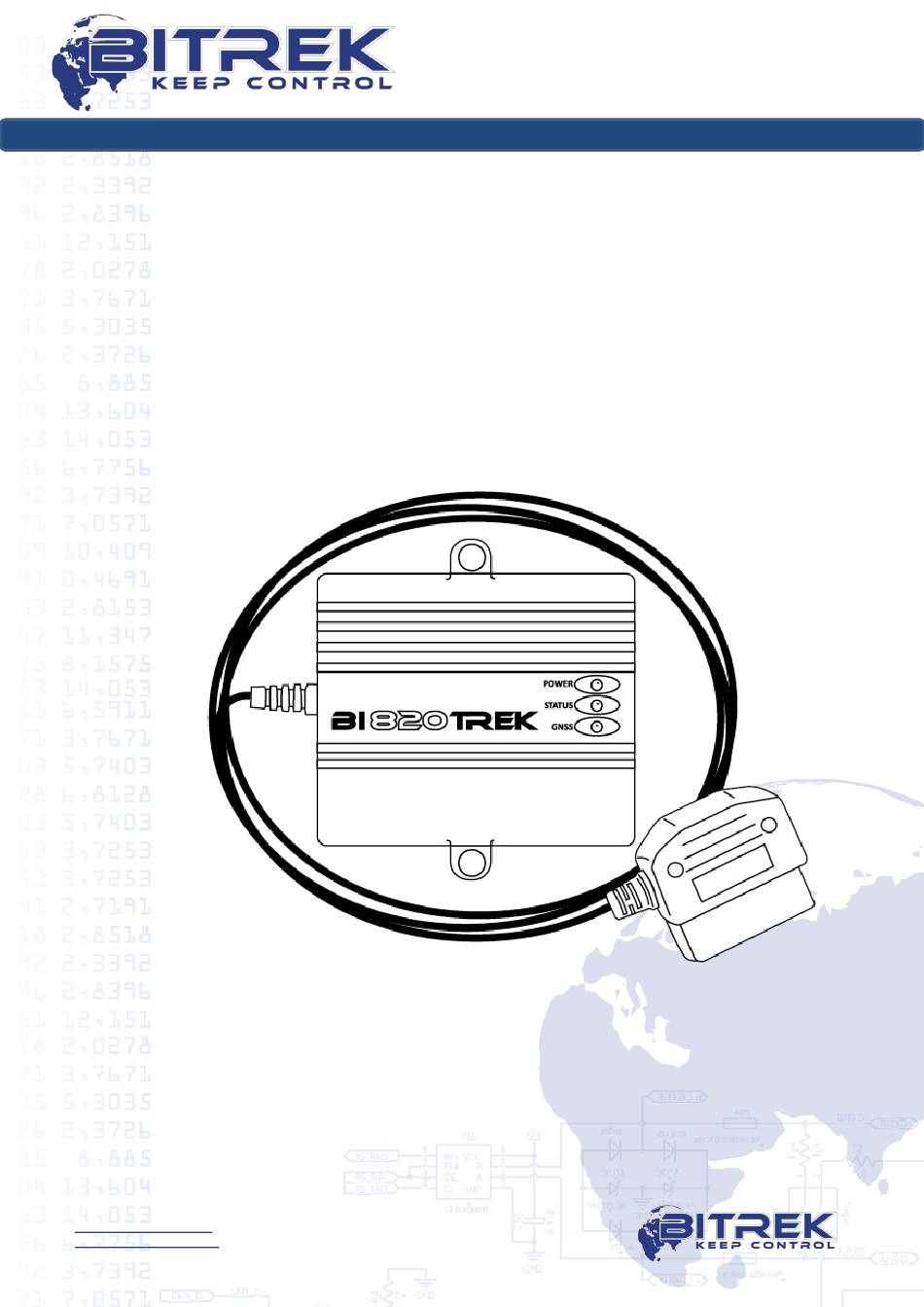

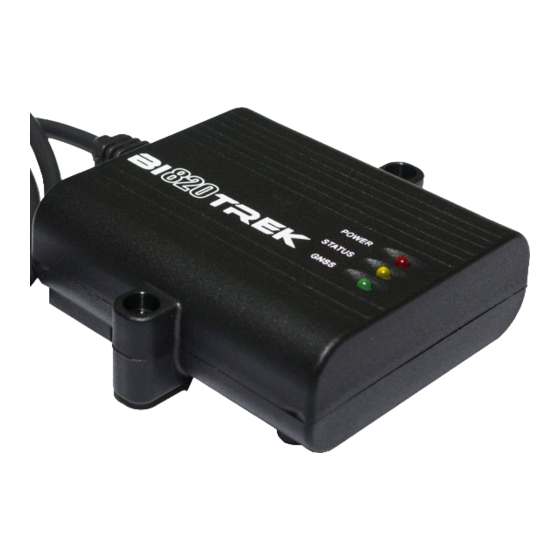

Vehicles Tracking Device
BI-820OBD TREK
Operating Manual
Version 2018.11.1
www.bitrek.com.ua
sales@bitrek.com.ua
+380 44 507 02 07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BI-820OBD TREK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BITREK BI-820OBD TREK

Summary of Contents for BITREK BI-820OBD TREK

  • Page 1 EDRPOU 16303375, a/c No. 260075014037759 in PAO "UKREKSIMBANK" in Kiev MFO 380333, INN 163033726585 95-C Otradny Prospekt, Kiev, 03061, Ukraine, phone +38044 507 02 07, fax 038044 507 02 02 www.bitrek.com.ua, sales@bitrek.com.ua Phone +38044 507 02 07. Fax +38044 507 02 02. www.bitrek.com.ua, sales@bitrek.com.ua...

  • Page 2: Table Of Contents

    Table of Contents Introduction .................... 3 Safety Requirements for Installation and Maintenance of Tracking Device "BI-820OBD TREK" ..............3 Transportation and Storage ..............3 Warranty ..................... 3 Device ....................3 Intended Use of the Device..............3 Principle of Operation ................4 Specifications ..................

  • Page 3: Introduction

    Device Intended Use of the Device Tracking device BI-820OBD TREK is used to solve problems of navigation and control over the transport standard. The device is intended for use on moving objects equipped with OBD-II diagnostic connector and is used to solve problems: •...

  • Page 4: Principle Of Operation

    Data transfer standard 850/900/1800/1900 GSM network communication GPRS, SMS channel GPRS klass GPS and GSM antennas Внутренние Navigation system type GPS или GPS/ГЛОНАСС Connection standard to the onboard OBD-II computer of the vehicle www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 5: Tracking Device Design

    От -30°С до +80°С Dimensions (W х L х H) 85 х 95 х 33 mm Weight 200 gr. Housing protection class IP65 Tracking device design Fig. 1. Appearance and Dimensions of Tracking Device BI-820OBD TREK. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 6: Scope Of Delivery

    Scope of Delivery 1. Tracking Device BI-820OBD TREK - 1 pc. 2. Certificate – 1 pc. 3. Warranty sheet – 1 pc. 4. Packing box – 1 pc. Preparation for Operation Inserting SIM–Card To operate on a GSM network, a SIM-card has to be inserted into the device.

  • Page 7: Contact Assignment

    Contact assignment Fig. 2. BI-820OBD TREK Contact Pins Table 2. Pin legends Signal type Purpose number legend P-GND Power Common wire (ground) Power Signal ground «CAN_H» signal CAN-H Input/Output (J-2284) Data transmission/reception line K Line Input/Output (SAE) «CAN_L» signal CAN-L...

  • Page 8: Connection To A Computer

    Fig. 3. BI-820OBD TREK Connection Diagram A terminal program can be used for data exchange with the device. Terminal configuration settings: bit rate – 115,200 bps, data bit – 8, stop bit –...

  • Page 9: Indicators Description

    The commands are delimited with semicolon delimiter. SMS commands entered to the tracking device should be of the following format: <login><space><password><space><command1>;<space><co mmand2>;<space><commandN>; Example of an SMS command: abcd 1234 getgps; getstatus; www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 10: Configuring The Device

    If there is no authorized phone number enabled, SMS with commands will be received from any phone number. Configuring the Device The BI-820OBD TREK Tracking Device can be configured by one of the methods below: 1. Using a direct connection between the device and a computer.
  • Page 11 Deletion of all records saved none setparam Set a parameter by its ID #### BOOT #,#,# Update of device firmware Auto bus scan and setting canobdset available parameters Delete all previously set bus canobdclr parameters www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 12: Detailed Description Of Information Commands

    GPS: 1 Sat: 7 Lat: 50.2535 Long: 30.2622 Alt: 147 Speed: 0 Dir: 77 Date: 2018/4/30 Time: 12:33:45 Command of request for link with device coordinates – getmap; Example of a response: "www.biakom.com/maps/q=50.420209,30.428448,12,0" www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 13: Detailed Description Of Controlling Commands

    Restoration of profile parameters defaults – rstallprof; There is no response to this command. Once the command is received, all profile parameters are restored to their default values. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 14 ID data to the device. This command can be sent in two ways: via BITREK Configurator on the Commands tab -> Controller or by sending an SMS message canobdset;...

  • Page 15: Basic Device Configuration

    Once a mobile carrier SIM-card is inserted and power supply is connected, the device needs to be configured for transferring data to the server. When the Bitrek Configurator is used, all configuration settings will be divided into groups:  Server and GPRS ...

  • Page 16: Configuring I/O Components

    SMS with the commands. Configuring I/O Components The BI-820OBD TREK Tracking Device can collect, process and send data obtained from different sensors to the server. Each sensor is an I/O component and has a group consisting of 6 parameters for configuration.
  • Page 17 Parameter 2 - Upper threshold – setting the upper threshold of the I/O component; Parameter 3 - Lower threshold – setting the lower threshold of the I/O component; www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 18 Example: Lower threshold of input voltage is set to 0 V, the upper threshold is 10 V (10000 mV). If the input voltage increases over 10 V, the event will be generated (Figure 5). www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 19 4 - Monitoring + Going Within Range. When a Going Within Range event is generated, actual value from the sensor starts to be transmitted to the server in the monitoring mode. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 20: Configuring Alarms

    The device takes one attempt to make an outbound call per each trigger activation. Alarm configuration settings are specified in the Security section of Addendum 1. Authorized phone number Phone0 is specified as the ID 0261 parameter. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 21: Description Of Operator Selection Modes

    Configuring Roaming Settings For the device to appropriately operate on roaming networks, respective operating mode must be configured and the list of enabled networks must be specified. Select respective mode: setparam 0917 1; www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 22 0179 <GPRS password>; ATTENTION! If you specify the list of enabled operators, but do not specify APN, GPRS login, GPRS password for each of them, the device will not work in roaming. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 23: Use Of Backup Server

    Use of Backup Server The BI-820OBD TREK Tracking Device supports the use of a backup server (Host2 Port2). The ID=196 parameter is used for this case and by default is set to 0. If 0196 is set to 0, only Host1 and Port1 are used.

  • Page 24: Addendum 1. Device Parameters

    Connect Try Time between connection 0905 none 2 byte sec. 0 - 65535 Interval attempts Connect Time between serial Serial 0906 none 2 byte sec. 0 - 65535 attempts to connect Interval www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 25 Acceleration meter Z- Delta Z 0283 none 1 byte c.u. 1 - 256 direction deviation angle Start Move Timeout for movement 0284 none 2 byte 0 - 65535 Timeout start by acceleration meter sec. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 26 2 - GLONASS only; Safety Phone0 0261 none String Authorized phone number 0 +xxxxxxxxxxxx Phone1 0262 none String Authorized phone number 1 +xxxxxxxxxxxx Phone2 0263 none String Authorized phone number 2 +xxxxxxxxxxxx www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 27 Service Period of regular device Reboot Per 0186 none 1 byte hour 1 - 256 reboot 0 - complete; 1 - Reboot Type 0187 none 1 byte Type of device reboot modem only; www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 28 Alarms Enabling outbound voice 0 - disabled; 1 - RingEnable 0913 none 1 byte calls enabled; ID of I/O component OutCall 0914 none 2 byte triggering outbound voice Trigger call www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 29 0 – disabled; 1 - Selection 0917 none 1 byte Enabling carrier selection enabled Enable 0020… UsIpTable none String List of enabled carriers xxxxx 0059 0060… List of APNs of enabled UsAPNTable none String 0099 carriers www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 30 CAN BUS baud rate Kbit/s 4 = 33333 CAN_Baud 5 = 50000 6 = 83000 7 = 83333 8 = 100000 0 – gasoline Fuel_type 4011 Нет 1 byte Fuel type 1 – diesel www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 31: Addendum 2. List Of I/O Components

    0440… pcbTemp 4 byte Device temperature 0445 0500… realOdometr 4 byte Relative virtual odometer 0505 0710… Odometr 4 byte Absolute virtual odometer 0715 0680… Transmission of carrier's OperCode 4 byte none 0685 code www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 32 0 - no SIM detected; 1 - SIM detected; 2 - SIM 0790… SIM_Stat 1 byte SIM card status none detected, but not 0795 ready; 3 - SIM detected and ready www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 33 1 - home network; 2 - not registered, GPRS_net 0770… GPRS network registration 1 byte none but searching for Stat 0775 status carriers; 3 - registration disabled; 4 - status unknown; 5 - roaming; www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 34 2 byte c.u. 0 - 9999 0805 determination 0 - undefined Type of used interface 3320… 1 - CAN CAN/KLINE 1 byte CAN/KLINE c.u. 3325 2 - KLINE 14230 3 - KLINE 9141 www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 35: Addendum 3. List Of Available Obd-Ii Parameters

    Ignition status Calculated engine load value A*100/255 Engine coolant temperature) A-40 °C Intake manifold absolute pressure Vehicle speed km/h Intake air temperature A-40 °C Fuel level A*100/255 Barometric pressure Ambient air temperature A-40 °C www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 36 Relative accelerator pedal position A*100/255 Hybrid battery pack remaining life A*100/255 Engine oil temperature A - 40 °C Engine RPM Run time since engine start seconds Distance traveled with malfunction indicator lamp (MIL) on www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 37 Distance traveled since codes cleared Absolute load value A*100/255 MAF air flow rate A/100 grams/sec Time since trouble codes cleared minutes Engine fuel rate A*0.05 Odometer VSS Odometer MAF fuel consumption rate A*0,1 www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 38 Document version Date Version Note 12.06.2018 Ver.2018.06.1 Basic document 09.07.2018 Ver.2018.11.1 Changed the firmware update port number www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
