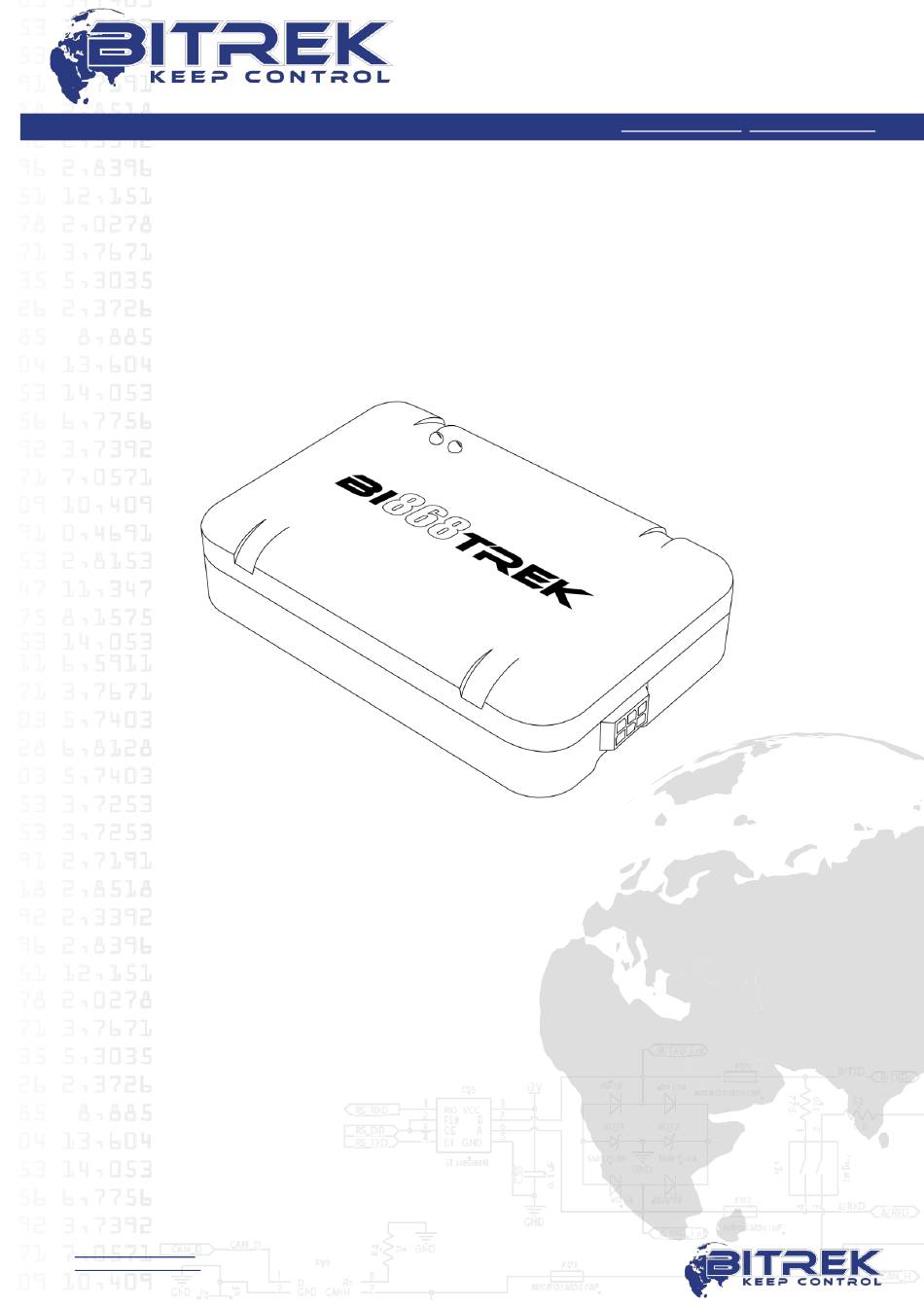

DYSCOVI SYSTEMS RPE LIMITED
Company code 16303375, account №260075014037759
In "UKREXIMBANK" in Kyiv
MFI 380333, tax number 163033726585
95-S Vidradniy avenue, Kyiv, Ukraine, 03061. Phone +38044 507 02 07. Fax +38044 507 02 02. www.bitrek.com.ua, sales@bitrek.com.ua

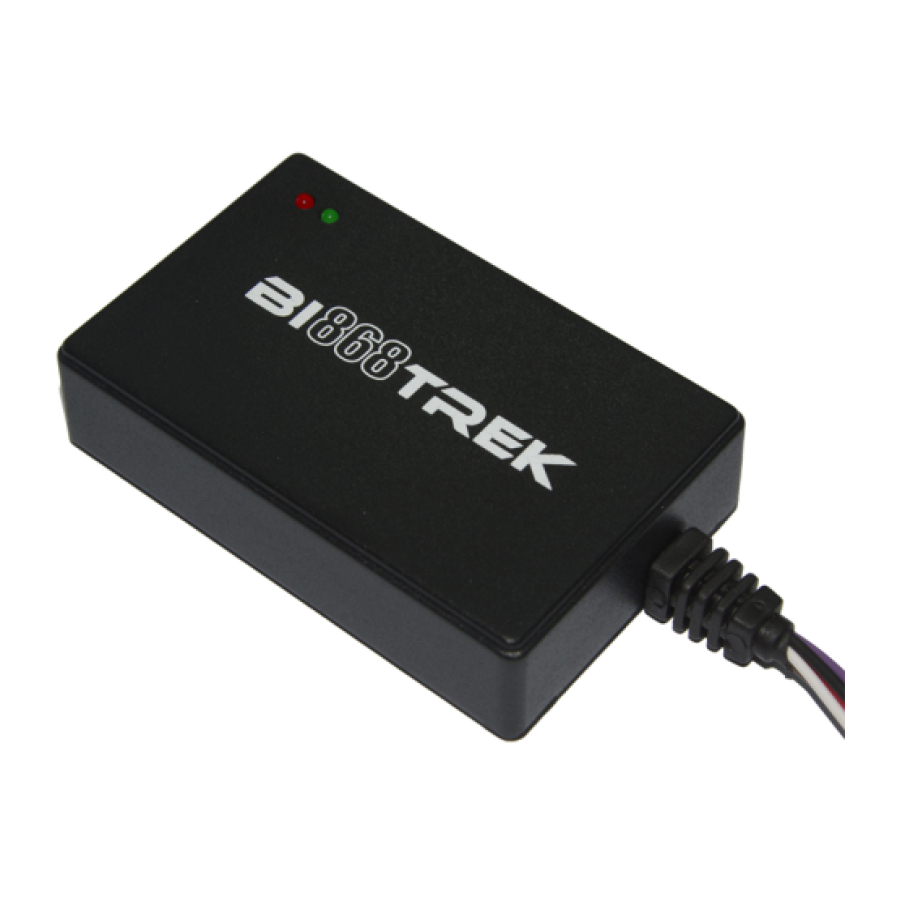

Vehicles Tracking Device
BI-868 TREK HW2
Operating manual
Version 2019.11.1
www.bitrek.com.ua
sales@bitrek.com.ua
+380 44 507 02 07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BI-868 TREK HW2 and is the answer not in the manual?

Questions and answers

Related Manuals for BITREK BI-868 TREK HW2

Summary of Contents for BITREK BI-868 TREK HW2

  • Page 1 Company code 16303375, account №260075014037759 In “UKREXIMBANK” in Kyiv MFI 380333, tax number 163033726585 95-S Vidradniy avenue, Kyiv, Ukraine, 03061. Phone +38044 507 02 07. Fax +38044 507 02 02. www.bitrek.com.ua, sales@bitrek.com.ua Vehicles Tracking Device BI-868 TREK HW2 Operating manual Version 2019.11.1...

  • Page 2: Table Of Contents

    Electrical connections ............... 8 Device to computer connection ............8 Description of indication elements ............. 9 Adjustment of "BI-868 TREK HW2" device ..........10 Basic information ................10 List of information commands to operate the device ......11 List of control commands to operate the device ......... 13 Basic configuration ................

  • Page 3: Introduction

    Warranty Warranty period of operation of tracking device "BI-868 TREK HW2" is 12 months from the date of sale of the device. The warranty obligations of the manufacturer are valid if the consumer observes the requirements of this manual.

  • Page 4: Device

    Device Purpose Tracking device "BI-868 TREK HW2" shall be applied to solve issues of navigation, remote control and monitoring of a vehicle or other remote object. The tracking device is designed to be installed on any mobile or remote stationary object in order to: ...

  • Page 5: Technical Specifications

    80 % at +30 °C 23 Dimensions (W х L х H) 93 х 60 х 25 mm 24 Net weight 120 g 25 Weight gross 130 g 26 Housing protection class IP54 www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 6: Design Of Tracking Device

    HW2" are shown in Figure 1. Figure 1 - Appearance and design of the device. Supply package The tracking device "BI-868 TREK HW2" is provided with the following set: 1. Tracking device "BI-868 TREK HW2" - 1 piece. 2. Connection cable - 1 piece.

  • Page 7: Connector For Power Supply And Peripherals

    LEDs to face up. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 8: Electrical Connections

    UART output socket is located on the board of the device. To access the socket, remove the cover of the device. Procedure of connection of USB-UART converter cable is shown in Figure 3. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 9: Description Of Indication Elements

    Figure 3 - Connection of the cable of USB-UART converter to the device "BI-868 TREK HW2". To work with the USB-UART converter, install the appropriate device drivers. They can be downloaded from the official website: http://www.ftdichip.com To exchange data with the device, use a terminal program. Settings of the terminal: speed - 115200 bit/second, data bit - 8, stop bit - 1, no parity check, no flow control.

  • Page 10: Adjustment Of "Bi-868 Trek Hw2" Device

    Adjustment of "BI-868 TREK HW2" device Basic information The tracking device "BI-868 TREK HW2" can be configured in following ways: 1. With a direct connection of the device to a computer. 2. Remotely, using SMS commands. 3. Remotely, using the configuration server.

  • Page 11: List Of Information Commands To Operate The Device

    GPS - data status by GPS (1 - valid, 0 - invalid); Sat - number of satellites visible to the device; Lat - latitude (last known latitude); Long - longitude (last known longitude); www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 12 0» , where: IMEI (xxxxxxxxxxxxxxx) - identification number (IMEI) of the device; APN (gps.utel.ua) - access point to connect GPRS (shall be requested from the operator); Login (none) - access login to GPRS www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 13: List Of Control Commands To Operate The Device

    #,#,# Update of device software Set the mode of operation of digital setdigout # output Out 1 Activation of the safety locking of ignitionoff ignition Deactivation of the safety locking ignitionon of ignition www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 14 Example of command to update the software: «BOOT fw.bitrek.ua,80,*.bin;» , where: «HOST» - (fw.bitrek.ua,) - address of server locating the update files; «PORT» - (80,) - port of server locating the update files; «Firmware» - (*.bin;) - binary update file, where * - the firmware version, .bin - file extension.

  • Page 15: Basic Configuration

    All adjustable parameters of the device are divided into groups:  Server and GPRS.  Tracking.  Security.  Service.  Voice communication. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 16: Security Settings

    When using this function, the device will respond to SMS from the stored in the memory authorized phone numbers only. If the login and password are set by SMS, they shall be specified in each SMS with commands. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 17: Adjustment Of I/O Elements

    Adjustment of I/O elements The tracking device "BI-868 TREK HW2" is able to collect, process and send to the server the data received from various sensors. Each sensor is an I/O element and has a group consisting of 6 parameters for setting.
  • Page 18 Parameter 4 - Set the type of the generated event: 0 - Returning to the range. At a specific range of sensor values (range of values is specified as follows - lower limit of the range is recorded to the corresponding www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 19 Figure 5 - Generation of event by leaving the range. 2 - Returning/leaving to/of the range. Event is generated every time when the actual value of the sensor is out of the limits of the predetermined range. www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 20 It is measured in milliseconds (X*50 ms, i.e., while setting 10, the constant will be equal to 10*50=500 ms). List of all I/O components of the device, available for configuration, is provided in Appendix www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 21: Notifications

    30 characters in the Latin alphabet. Roaming options The tracking device "BI-868 TREK HW2" is able to operate in two modes: in the home network mode and in the operating mode with a predetermined list of authorized operators. Operation mode is set with ID 0917 parameter.

  • Page 22: Appendix 1 - Device Parameters

    2 byte PORT of backup server 20127 Operation with the configuration ConfServEna 0908 1 byte server (0 - disabled, 1 - enabled) IP or DNS of WEB configuration configurator.bitrek settingsHost 0220 string server .com.ua settingsPort 0221 2 byte PORT of WEB configuration server...
  • Page 23 Period of readout by time at Day Period 0903 2 byte second ignition on Period of readout by time at Night Period 0011 2 byte second ignition off Dist Period 0012 2 byte Period of readout by distance www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 24 Timeout according to the accelerometer Minimum GPS speed for motion Min_GPS_Speed 0918 1 byte km/hour detection GSM-module sleep mode by Axel Sleep Enable 0911 1 byte accelerometer (0 - disabled, 1 - enabled) www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 25 Authorized telephone number 4 Phone5 0266 string Authorized telephone number 5 Phone6 0267 string Authorized telephone number 6 Phone7 0268 string Authorized telephone number 7 Phone8 0269 string Authorized telephone number 8 www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 26 Authorization to set the number ErrSatNum 0992 1 byte of satellites at the loss of GPS signal Number of rings before automatic ringNum 0912 1 byte response (to check the SIM-card) www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 27 UsipTable 0020..0057 string operators List of APN of authorized UsAPNTable 0060..0097 string operators List of GPRS logins of authorized UsLoginTable 0100..0137 string operators List of GPRS passwords of UsPassTable 0140..0177 string authorized operators www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 28 Coefficient of median filtering for Ain1Per 0959 1 byte analog input No. 1 (from 1 to c.u. 256) Coefficient of median filtering for Ain2Per 0980 1 byte analog input No. 2 (from 1 to c.u. 256) www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...

  • Page 29: Appendix 2 - List Of I/O Elements

    0500/0501/0502/0503/0504/0505 Relative odometer Odometr 0710/0711/0712/0713/0714/0715 Absolute odometer GPSPower 0450/0451/0452/0453/0454/0455 Availability of GPS-signal GSMCSQ 0470/0471/0472/0473/0474/0475 Level of GSM signal OperCode 0680/0681/0682/0683/0684/0685 Operator code Modem status ModemStat 0750/0751/0752/0753/0754/0755 0 - not active; 1 - active; www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 30 1 - activated; Transfer of SIM-card status 0 - no SIM detected; SIM stat 0790/0791/0792/0793/0794/0795 1 - SIM detected; 2 - SIM detected, but not ready; 3 - SIM detected and ready; www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 31 When using the Wialon IPS protocol, the values of the parameters id_Send 44, 45, 47 are transferred in “g” When using the Teltonika protocol, the values of the parameters id_Send 44, 45, 47 are transferred in “g * 100” The Eco Driving algorithm is supported by devices version 868v5 and higher www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
  • Page 32 Document version Date Document version Note 26.11.2019 2019.11.1 Basic document www.bitrek.com.ua sales@bitrek.com.ua +380 44 507 02 07...
