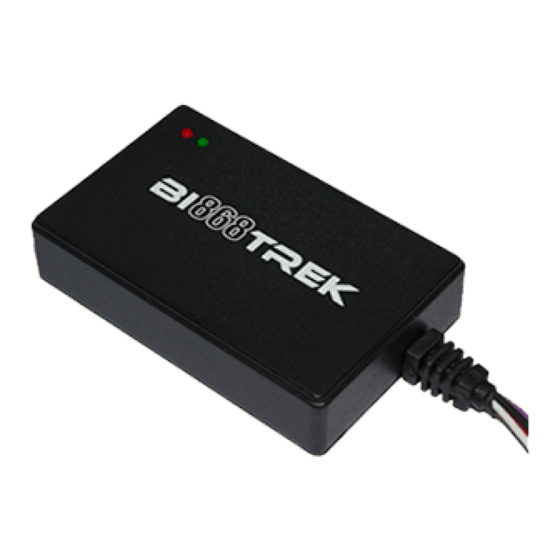

BITREK BI 868 TREK User Manual

Hide thumbs

Advertisement

Table of Contents

DYSCOVI SYSTEMS RPE LIMITED
Company code 16303375, account №260075014037759
in «UKREXIMBANK» in Kyiv
MFI 380333, tax number 163033726585
95-S Vidradniy avenue, Kyiv, Ukraine, 03061. Phone +38044 507 02 07. Fax +38044 507 02 02. www.bitrek.eu, sales@bitrek.eu

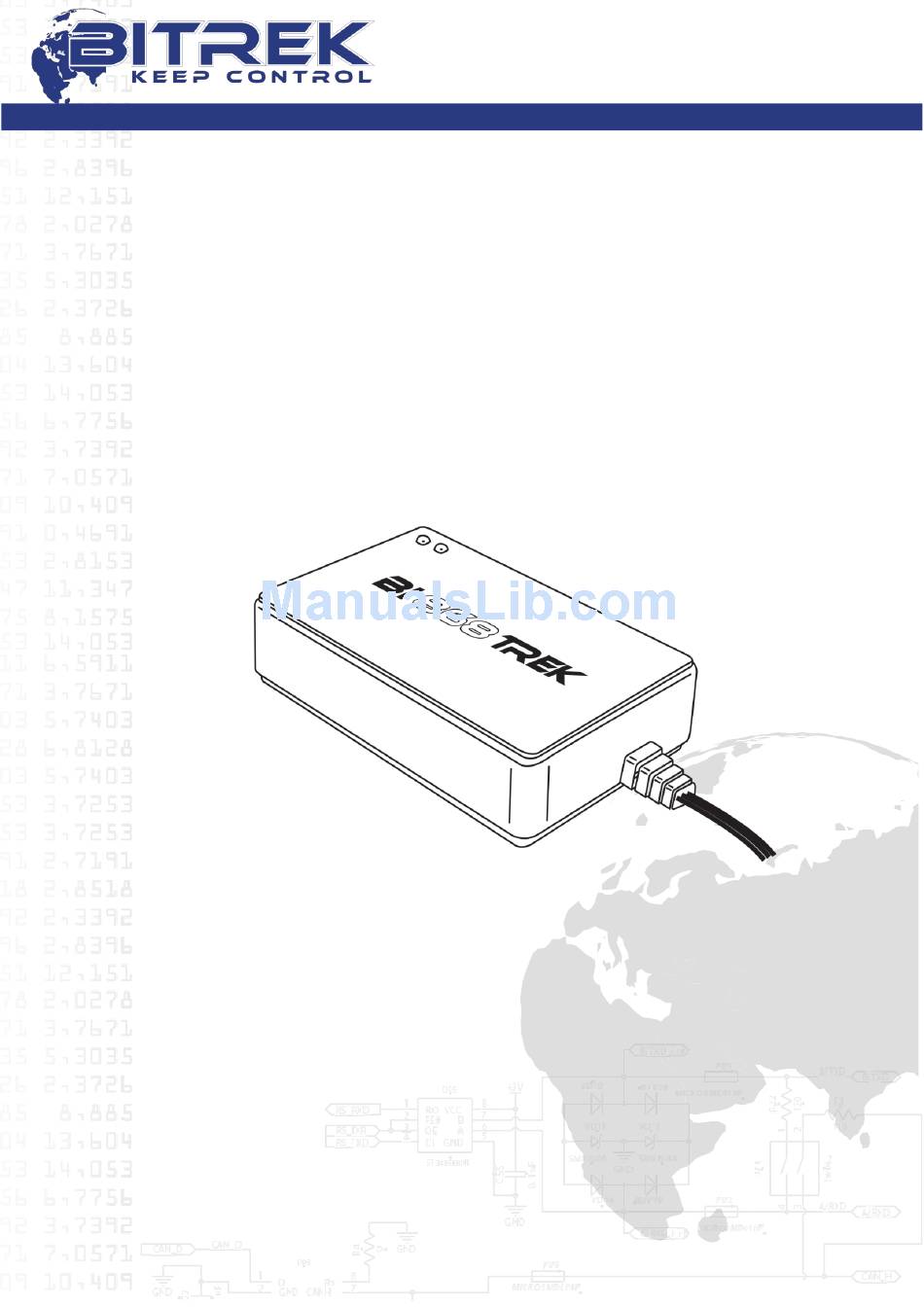

USER MANUAL

GPS TRACKER
BI 868 TREK
Version 2015.11.1.
Kyiv, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BI 868 TREK and is the answer not in the manual?

Questions and answers

Related Manuals for BITREK BI 868 TREK

Summary of Contents for BITREK BI 868 TREK

  • Page 1: User Manual

    DYSCOVI SYSTEMS RPE LIMITED Company code 16303375, account №260075014037759 in «UKREXIMBANK» in Kyiv MFI 380333, tax number 163033726585 95-S Vidradniy avenue, Kyiv, Ukraine, 03061. Phone +38044 507 02 07. Fax +38044 507 02 02. www.bitrek.eu, sales@bitrek.eu USER MANUAL GPS TRACKER BI 868 TREK Version 2015.11.1.

  • Page 2: Table Of Contents

    5.Technical characteristics ................7 6.Pin assignment ..................... 8 7.Device configuration ..................9 8.LED description ................... 14 9.Tracker installation ..................15 10.Important points during equipment configuration .......... 16 11.Conclusion ....................17 Appendix 1....................18 www.bitrek.eu support@bitrek.eu +380 44 507 02 07...

  • Page 3: Introduction

    . Our team does everything possible to make you satisfied with your choice, and make every effort for your comfortable work with our equipment. We present to your attention the user manual of the BI 868 TREK device (“tracker” on further). Here you will find information about the whole operation process of the tracker –...

  • Page 4: Purpose

    The tracker is used for online vehicle tracking and control using different satellite tracking systems and transmission the data via mobile communication with the support of additional sensors connection. BI 868 TREK is using on moving and stationary objects which have the power supply. BI 868 TREK is using for: ...

  • Page 5: Appearance

    3. Appearance Appearance of BI 868 TREK and antennas connectors is shown in figure 3.1: Picture 3.1. BI 868 TREK appearance www.bitrek.eu support@bitrek.eu +380 44 507 02 07...

  • Page 6: Package Contents

    4. Package contents BI 868 TREK has the following package contents:  GPS tracker for moving objects BI 868 TREK – 1 pc.  Technical passport– 1 pc.  Guarantee card – 1 pc.  Packing box – 1 pc.

  • Page 7: Technical Characteristics

    2MB (65 000 records) Built-in battery 1 000mA Operating battery от -30 °С до +80 °С Dimensions (W х L х H) 90 х 58 х 21 mm Weight 110 g. Ingress Protection IP54 www.bitrek.eu support@bitrek.eu +380 44 507 02 07...

  • Page 8: Pin Assignment

    Black An_in1 White An_in2 Brown Ignition Blue Out1 Purple Picture 6.1. BI 868 TREK pin assignment Color Contact name Type of signal Contact purpose «+» On-board power supply (nominal + Vсс Power supply voltage 12 V or 24 V) Black...

  • Page 9: Device Configuration

    7. Device configuration To configure the device you need to have BITREK CONFIGURATOR software, which is available for free download from official BITREK websites www.bitrek.eu or www.bitrek.com.ua. System requirements:  Windows XP and newer;  Framework 4 and newer*;  From 1024 MB of random access memory;...
  • Page 10 GSM-modems supported models *:  BITREK GSM-modem  Cinterion MC35i GSM-modems, which were tested with BITREK CONFIGURATOR. BITREK CONFIGURATOR can work with any GSM-modem, connected to the COM-port of PC. Activated SIM-card with available SMS and GPRS services must be inserted in tracker.
  • Page 11 7.3. BITREK CONFIGURATOR general description 7.3.1. Interface Picture 7.6. BITREK CONFIGURATOR main window Instruments Workspace Status bar 7.3.2. Instruments: 2 3 4 5 6 7 9 10 Picture 7.7. BITREK CONFIGURATOR instruments Model selection of connected device. Depending on the model different parameters and commands in configurator workspace are available.
  • Page 12 Send via modem. By pressing this button, all marked parameters and commands will be sent to the tracker via connected GSM-modem by SMS. 7.3.3. Status bar. Picture 7.8. BITREK CONFIGURATOR status bar Tracker connection status Modem connection status Progress bar Language selection www.bitrek.eu...
  • Page 13 7.3.4. Help On each tab BITREK CONFIGURATOR there is an icon with a built-in help in which you can find answers to your questions about the hardware settings for this tab: Picture 7.9. BITREK CONFIGURATOR built-in help When reassembling the tracker battery should be placed between the connectors XP1 and XP2.

  • Page 14: Led Description

    Blinks 1 time in Connection is not active 0.5 seconds Blinks 1 time in Connection is not active, 0.2 seconds modem in is a sleep mode Satellites OK, location Blinks 1 time in identified 2 seconds www.bitrek.eu support@bitrek.eu +380 44 507 02 07...

  • Page 15: Tracker Installation

    Tracker connection is making according to the picture 6.1. During the welding work in the vehicle, be sure that tracker is disconnected from power supply and from the periphery. www.bitrek.eu support@bitrek.eu +380 44 507 02 07...

  • Page 16: Important Points During Equipment Configuration

    10.3. Not removed PIN code verification on the SIM-card. 10.4. Not activated GPRS service on the SIM-card. 10.5. Sending incorrect commands via BITREK Configurator. During trackers operation the following factors influence on its correct work: 10.6. Incorrect or unqualified device installation.

  • Page 17: Conclusion

    11. Conclusion Dear Partners! We hope sincerely that the information about the tracker BI 868 TREK, described in this document, helped to answer all the questions and you were able to solve the tasks in front of you. If you have suggestions, comments or any other questions about working with our equipment, you can always appeal BITREK helpdesk in any convenient way.

  • Page 18: Appendix 1

    Appendix 1. BI 868 TREK parameters Name Capacity Possible values Units Default value Description Server ipsHost0 String IP или DNS 193.193.165.165 Main server IP address ipsPort0 2 byte PORT 20127 Main server PORT enaSecondHost 1 byte 0-disabled; 1-enabled; Reserve server enabling...
  • Page 19 String SMS access login smsUsPass String SMS access password Phone0 String +хххххххххххх Authorized phone number Phone1 String +хххххххххххх Authorized phone number Phone2 String +хххххххххххх Authorized phone number Phone3 String +хххххххххххх Authorized phone number www.bitrek.eu support@bitrek.eu +380 44 507 02 07...
  • Page 20 Reboot type only; errSatNum 1 byte from 1 to 256 Pcs. Satellites quantity if no GPS Rings number before auto ringNum 1 byte from 1 to 256 Pcs. answer (for SIM checking) Сервис www.bitrek.eu support@bitrek.eu +380 44 507 02 07...
  • Page 21 4 byte Absolute virtual odometer Movement state by Movement 510...515 1 byte accelerometer GPSPower 450...455 2 byte Pcs. Satellites GPSSpeed 490...495 2 byte km/h Speed by GPS Jamming 940...945 1 byte Jamming state www.bitrek.eu support@bitrek.eu +380 44 507 02 07...
  • Page 22 3 – registration disabled; 4 – status N/D; 5 – registered in roaming; 0 – GPRS content not GPRS content activation GPRSStat 780...785 1 byte activated; 1 - GPRS status content activated; www.bitrek.eu support@bitrek.eu +380 44 507 02 07...
  • Page 23 1 byte from 1 to 256 Pcs. quantity in series Waiting period between connTryInt 2 byte 0 — 65535 Sec. attempts in series Waiting period between connSerInt 2 byte 0 — 65535 Pcs. series www.bitrek.eu support@bitrek.eu +380 44 507 02 07...
