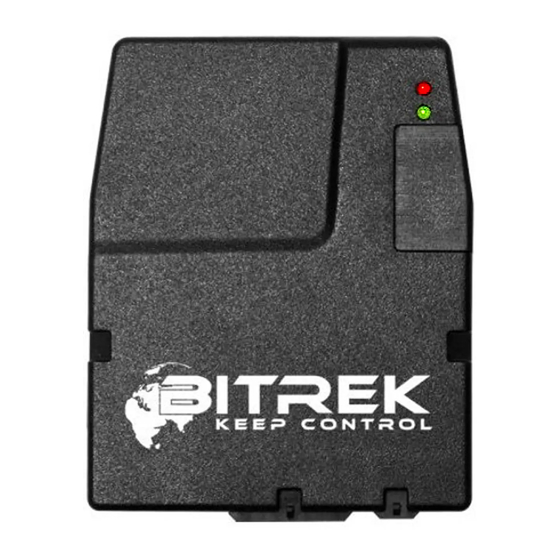

BITREK BI 530R TREK Operating Manual

Tracking device for moving objects
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Research and Production Enterprise "DISC SYSTEMS" LTD
EDRPOU 16303375, a/c No.260075014037759
at PJSC "UKREXIMBANK" in c. Kyiv
MFO 380333, TIN 163033726585
03061, Ukraine, c. Kyiv, 95-S Otradny ave., Telephone +38044 507 02 07. Fax +38044 507 02 02. www.bitrek.com.ua, sales@bitrek.com.ua

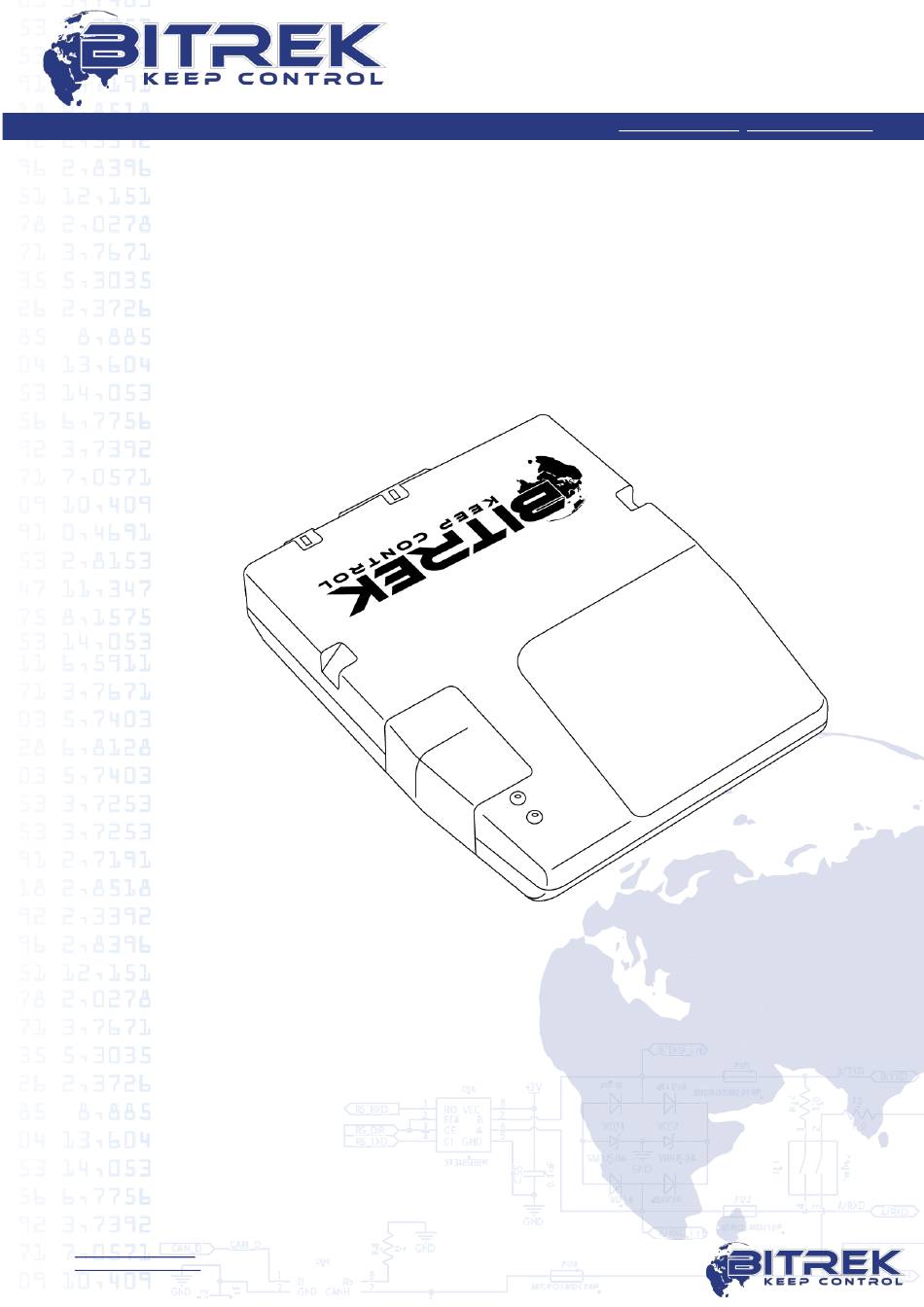

Tracking device
for moving objects
BI 530R TREK
Operating manual
Version 2017.03.1
www.bitrek.com.ua
sales@bitrek.com.ua
+380 44 507 02 07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BI 530R TREK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BITREK BI 530R TREK

Summary of Contents for BITREK BI 530R TREK

  • Page 1 EDRPOU 16303375, a/c No.260075014037759 at PJSC "UKREXIMBANK" in c. Kyiv MFO 380333, TIN 163033726585 03061, Ukraine, c. Kyiv, 95-S Otradny ave., Telephone +38044 507 02 07. Fax +38044 507 02 02. www.bitrek.com.ua, sales@bitrek.com.ua Tracking device for moving objects BI 530R TREK Operating manual Version 2017.03.1...

  • Page 2: Table Of Contents

    Content Introduction ..........................3 Safety requirements within installation and maintenance of "BI 530R TREK" tracking device ..3 Transportation and storage ......................... 3 Warranty.............................. 3 Device ............................4 Purpose ..............................4 Operation principles ..........................4 Technical specifications ........................5 Supply package ............................ 6 Preparation for operation, commissioning ..................

  • Page 3: Introduction

    Introduction Safety requirements within installation and maintenance of "BI 530R TREK" tracking device Technical staff involved in installation of tracking device is in charge for compliance with security measures, as well as the staff responsible for equipment at the work area.

  • Page 4: Device

    Device Purpose Tracking device "BI 530R TREK" shall be applied to solve issues of navigation, remote control and monitoring of a vehicle or other remote object. The tracking device is designed to be installed on any mobile or remote stationary object in order to: ...

  • Page 5: Technical Specifications

    Technical specifications Table 1 - Technical specifications Technical Name specification Data transmission standard GSM 900/1800 GSM network communication channel GPRS, SMS SIM-cards quantity SIM-card format Micro-SIM GPRS class LBS, GPS or LBS, Type of navigation system GPS/GLONASS GSM and GPS antennas Internal Auxiliary digital interfaces RS-485...

  • Page 6: Supply Package

    Figure 1. Figure 1 - Appearance and design of the device. Supply package The tracking device "BI 530R TREK" is provided with the following set: 1. Tracking device "BI 530R TREK" - 1 piece. 2. Connection cable - 1 piece.

  • Page 7: Connectors For Power Supply And Peripherals

    Figure 2 - Installation of SIM-card into the device. Connectors for power supply and peripherals The rear panel of the tracking device contains sockets for connecting cables. Connecting cables in turn have outlets for power, analog, digital, discrete sensors and actuating mechanisms. Location of sockets and numbering of contacts are shown in Figure 3.
  • Page 8 Figure 3 - Location of sockets and numbering of contact elements. Table 2 - Designation of contact elements Name of Type of Contact element Colour contact signal assignment Power Black Common wire (ground) supply Discrete input with active Brown DAT low Input "0"...

  • Page 9: Assembly, Commissioning

    Assembly, commissioning Assembly recommendations Zone of installation of tracking device shall enable the connecting of the pin to it and disable the possibility of accidental damage to the device, moisture, impact of high temperature. Recommended location for installation in the vehicle is an empty space under the dashboard inside the vehicle;...
  • Page 10 Figure 4 - Connection of the cable of USB-UART converter to the device "BI 530R TREK". Once connected, the device will transmit data about its state to the terminal. In addition, the user is able to use a terminal program to send commands to a device and receive response to them.

  • Page 11: Description Of Display Bodies

    Adjustment of "BI 530R TREK" device Basic information The tracking device "BI 530R TREK" can be configured in following ways: 1. With a direct connection of the device to a computer.
  • Page 12 Read the value of the device's internal getio sensors flush Request of device profile parameters getparam Read the value of the parameter by its ID #### Notes to Table 3. Information about current state of the device Command to be send - getstatus; Example of response: «Data Link: 1 GPRS: 1 IP: xxx.xxx.xxx.xxx GSM: 4 Roaming: 0»...
  • Page 13 Request of the version of the device software Command to be send - getver; Example of response: «BI-520R Ver: 3.92» Read the values of the device's sensors. Command to be send - getio; Example of response: «DL1: 1 DH1: 0 DH2: 0 DO1: 0 DO2: 0 VPSV: 12996mV VBAT: 4290mV AIN1: 37mV AIN2: 38mV»...

  • Page 14: List Of Control Commands To Operate The Device

    Example of the command to request APN of the device (a parameter that contains the APN device has ID 0242) - getparam 0242; Example of response: «Param ID 0242 Val: gps.utel.ua». List of control commands to operate the device Table 4 - List of control commands to operate the device Availability Command Description...
  • Page 15 Example of response: «Param ID #### New Val: #» , where: Param ID – ID of parameter to be set up; New Val – assigned value of parameter. Example of the command to set APN of the device (a parameter that contains the APN device has ID 0242) - setparam 0242 gps.utel.ua;...

  • Page 16: Basic Configuration

    Activate/deactivate the safety locking of ignition. Command to activate safe locking – ignitionon; Command to deactivate safe locking – ignitionoff; In case of activation of secure locking the discrete output Out 1 will be activated if the speed according to GPS is less than 5 km/h. Examples of response: «Set RQS To Ignition On»...

  • Page 17: Adjustment Of I/O Elements

    SMS with commands. Adjustment of I/O elements The tracking device "BI 530R TREK" is able to collect, process and send to the server the data received from various sensors. Each sensor is an I/O element and has a group consisting of 6 parameters for setting. For example, to set the value of power supply voltage level to the server, use group of parameters of ID 0410/0411/0412/0413/0414/0415.
  • Page 18 4 - monitoring + entering the range; 5 - monitoring + leaving the range; 6 - monitoring + return to/leaving the range; 7 - generation of the event to change the input value to a predetermined value; 8 - generation of the event to change the input value to a predetermined value + monitoring Averaging constant...
  • Page 19 Figure 5 - Generation of event by returning to the range. 1 - Leaving the range. The event will be generated if the actual sensor value is outside the predetermined range. Example: The lower voltage limit is set to 0, the upper limit is set to 10 V (10 000 mV).
  • Page 20 Figure 7 - Generation of event by returning/leaving to/of the range. 3 - Monitoring. When this mode is selected, data will be transmitted continuously, the events will not be generated. 4 - Monitoring + entering the range. When there is generated the event after entering the range, the actual value of the sensor starts to be transmitted to the server in the monitoring mode.

  • Page 21: Notifications

    30 characters in the Latin alphabet. Roaming options The tracking device "BI 530R TREK" is able to operate in two modes: in the home network mode and in the operating mode with a predetermined list of authorized operators.

  • Page 22: Configuring The Device To Work With The Rfid Reader By Rcs Sova Protocol On Rs-485 Bus

    Configuring the device to work with the RFID reader by RCS SOVA protocol on RS-485 bus "BI 530R TREK" tracking device enables work with RFID reader using SOVA protocol RS-485 bus. By default, the device is programmed to poll RFID reader at the 9th address.
  • Page 23 Filtered and unfiltered values are passed by different I/O elements (see Appendix In addition, if fuel level sensors are equipped with a built-in temperature sensor, possible obtain these data and transfer them to the server (see Appendix...

  • Page 24: Appendix 1 - Device Parameters

    0908 1 byte configuration server (0 - disabled, 1 - enabled) IP or DNS of WEB configurator. settingsHost 0220 string configuration server bitrek.com.ua PORT of WEB configuration settingsPort 0221 2 byte 55755 server Period of connection to WEB settingsTimeOut 0222...
  • Page 25 Connect Try Waiting period between the 0905 2 byte second Interval attempts in the series Connect Serial Period to wait between 2 byte second Interval attempts series Switching Host 2 Permission to use backup 1 byte Port 2 server Type of data transfer ProtokolType 1 byte protocol to the server (0 -...
  • Page 26 Number of attempts to send Send Amount Del 0356 1 byte data to the server before deletion Send Confirm Time to wait for a response 0357 1 byte second Time from the server Angle of deviation of the Delta X 0281 1 byte degree...
  • Page 27 Security Authorized telephone Phone0 0261 string number 0 Authorized telephone Phone1 0262 string number 1 Authorized telephone Phone2 0263 string number 2 Authorized telephone Phone3 0264 string number 3 Authorized telephone Phone4 0265 string number 4 Authorized telephone Phone5 0266 string number 5 Authorized telephone...
  • Page 28 Jamming Jamming Level of detection of 0806 1 byte c.u. Level jamming event Permission to send SMS JammingEna 0807 1 byte about jamming (0 - disabled, 1 - enabled) Service Period of the regular reboot Reboot Per 0186 1 byte hour of the device Type of device reboot...
  • Page 29 ID of I/O element - trigger to send an SMS to SMSTrigger 0816 2 byte authorized phone number when the events occur Text added to the SMS (no SMSText 0817 string more than 30 characters in the Latin alphabet) Roaming Operator 0917 1 byte...
  • Page 30 ID at Name of Grade of Measureme configurati Parameter purpose Default value parameter parameter nt unit Parameters for I/O elements setting Service authorization RFID reader via RCS SOVA protocol by RS-485 bus at 9 network address RFID Ena 0915 1 byte and control of digital outputs (10 - monitoring, without...
  • Page 31 Software switching of the ignition between the IgnInput 5006 string discrete inputs (1 - DAThigh 1, 2- DAThigh 2) ID at Name of Grade of Measureme configurati Parameter purpose Default value parameter parameter nt unit Kalman rate for the analog AIN1 0957 2 byte...

  • Page 32: Appendix 2 - List Of I/O Elements

    Appendix 2 - List of I/O elements ID at Name of transmiss ID at configuration Purpose parameter 0410/0411/0412/0413/0414/0415 Power supply voltage VBAT 0420/0421/0422/0423/0424/0425 Battery power PCB_Temp 0440/0441/0442/0443/0444/0445 Device temperature GPSSpeed 0490/0491/0492/0493/0494/0495 Speed by GPS Movement 0510/0511/0512/0513/0514/0515 State of motion realOdometr 0500/0501/0502/0503/0504/0505 Relative odometer Odometr...
  • Page 33 ID at Name of transmiss ID at configuration Purpose parameter Polling of filtered fuel level sensor fuelLevel2 0590/0591/0592/0593/0594/0595 (2 network address) Polling of filtered fuel level sensor fuelLevel5 0850/0851/0852/0853/0854/0855 (5 network address) Polling of filtered fuel level sensor fuelLevel6 0860/0861/0862/0863/0864/0865 (6 network address) Polling of unfiltered fuel level sensor fuelLevelUnfilt1...
  • Page 34 ID at Name of transmiss ID at configuration Purpose parameter iMCC 4010/4011/4012/4013/4014/4015 Positioning by base stations* iMNC 4020/4021/4022/4023/4024/4025 Positioning by base stations* iLAC 4030/4031/4032/4033/4034/4035 Positioning by base stations* iCellID cell_id 4040/4041/4042/4043/4044/4045 Positioning by base stations* Rx_level rx_level 4050/4051/4052/4053/4054/4055 Positioning by base stations* Socket_stat 5020/5021/5022/5023/5024/5025 Status of server connection socket...
  • Page 35 Document version Date Document version Note 1/19/2018 Ver 0.1 Basic document...
