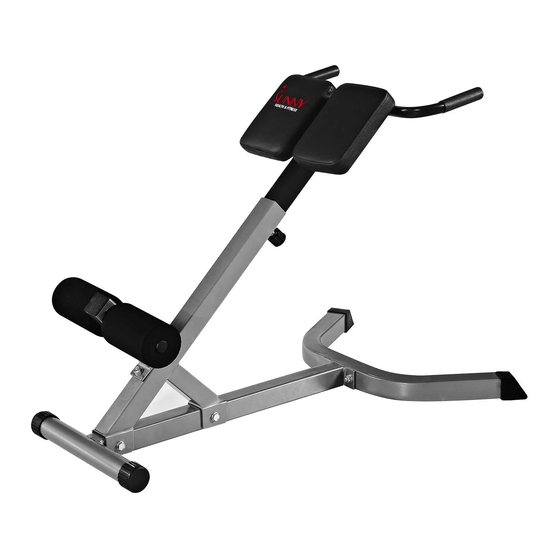

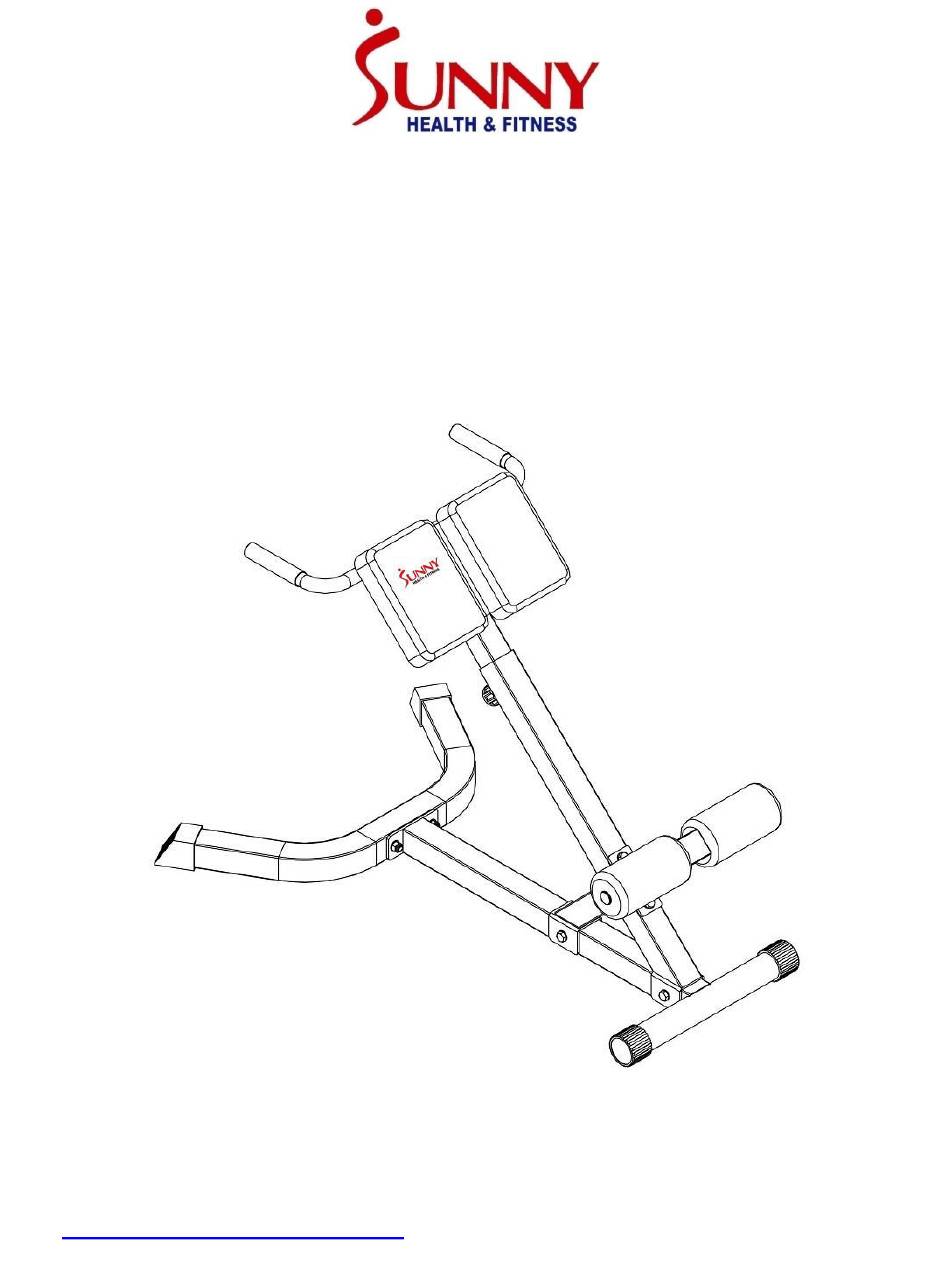

- Page 1 HYPEREXTENSION ROMAN CHAIR SF-BH6504 USER MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...
- Page 2 IMPORATANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.
- Page 3 EXPLODED DRAWING...
- Page 4 PARTS LIST TOOLS SPANNER WRENCH 2 PCS...
- Page 5 ASSEMBLY INSTRUCTIONS STEP: 1 Attach the Stabilizer (No. 2) to the Main Frame (No. 1) using 2 Bolts (No. 9), 4 Washers (No. 11) and 2 Lock Nuts (No. 13). Tighten and secure with Spanner Wrench. STEP: 2 Attach the Roller Tube Assembly (No. 5) to the Angle Support Frame (No. 3) using 2 Bolts (No.
- Page 6 STEP: 3 Attach the Angle Support Frame (No. 3) to the Main Frame (No. 1) using 2 Bolts (No. 9), 4 Washers (No. 11) and 2 Lock Nuts (No. 13). Tighten and secure with Spanner Wrench.
- Page 7 STEP: 4 Attach the Support Pads (No. 7) to the Handle Assembly (No. 4) using 4 Bolts (No. 10) and 4 Washers (No. 12). Tighten and secure with Spanner Wrench. Loosen and remove the Pull Pin (No. 14) located on the Angle Support Frame (No. 3) and insert the Handle Assembly (No.
- Page 8 MAINTENANCE IMPORTANT: Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that the equipment is maintained regularly. Any components found to be worn and/or damaged should be replaced before continuing use of the equipment.
