Summary of Contents for Sunny SF-BH6505

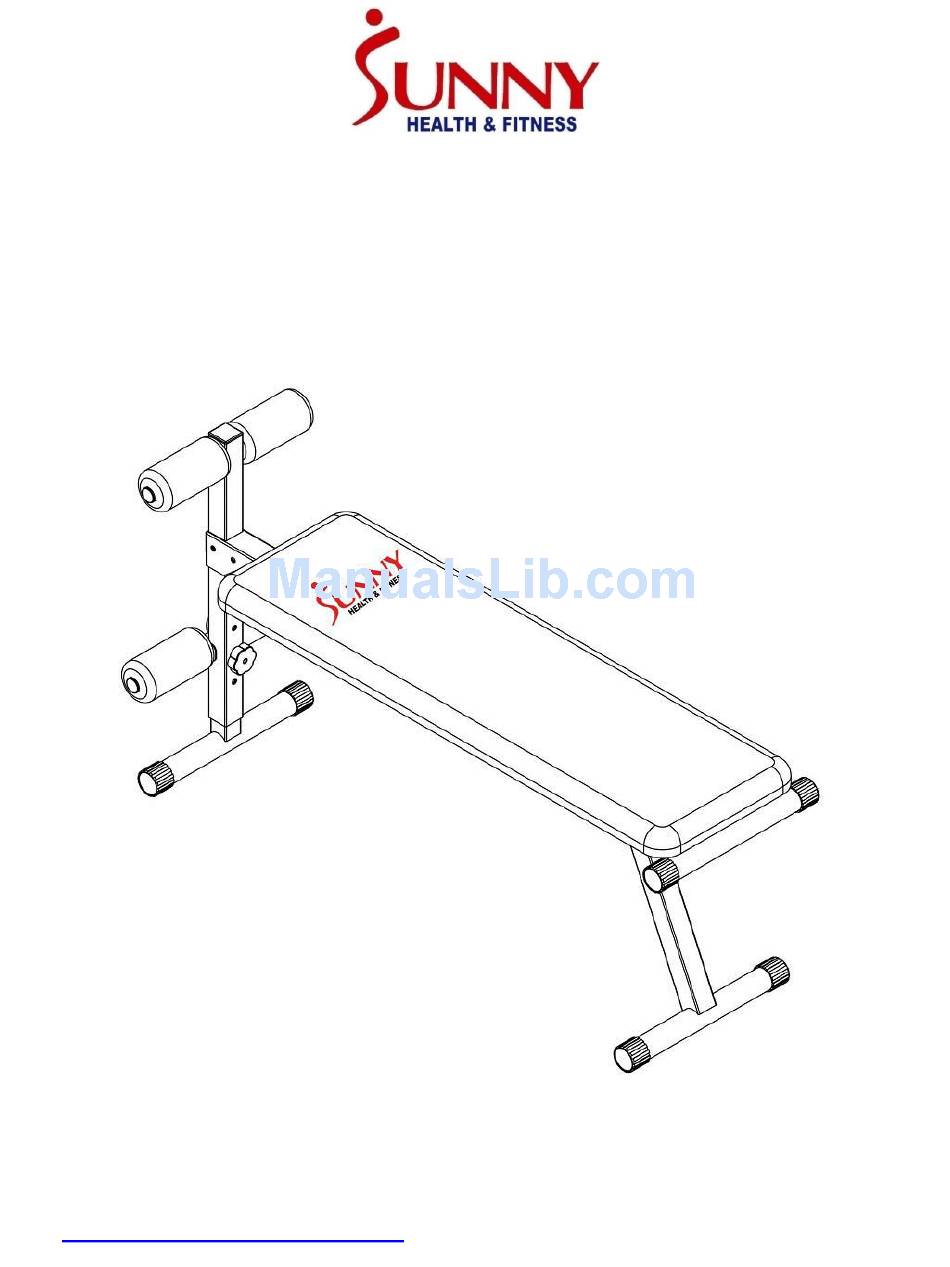

- Page 1 2 IN 1 FLAT/SIT-UP BENCH SF-BH6505 USER MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. -
Page 3: Exploded Drawing
EXPLODED DRAWING... -
Page 4: Parts List
PARTS LIST M8*50 TOOLS SPANNER WRENCH 2 PCS... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP: 1 Insert the Upright Extension (No. 1) into the Main Upright (No. 2). Adjust the height of the bench by sliding the Upright Extension (No. 1) upward or downward. Set the Upright Extension (No. 1) to the desired height, ensuring that the holes from both posts are properly aligned with each other. - Page 6 STEP: 2 Attach the Rear Leg Support (No. 5) to the Main Frame (No. 4) by sliding the connecting section of the rear leg support onto the top end of the main frame. NOTE: The top side of the Main Frame (No. 4) contains two openings (one on each side) the holes on the connecting section of the Rear Leg Support (No.
- Page 7 STEP: 3 Attach the Main Upright (No. 2) to the Main Frame (No. 4) using 1 Bolt (No. 10), 2 Bolts (No. 11), 6 Washers (No. 14) and 3 Lock Nuts (No. 13). Tighten and secure with Spanner Wrench. NOTE: When attaching the Main Upright (No. 2) to the Main Frame (No. 4) you must slide the connection point on the Main Upright (No.
- Page 8 STEP: 4 Attach the Padded Bench (No. 6) to the Main Frame (No. 4) using 4 Bolts (No. 12) and 4 Washers (No. 14), tighten and secure with Spanner Wrench. Insert the Foam Roller Cross Bar (No. 7) through the hole on the Main Upright (No. 2).
-
Page 9: Bench Positions
BENCH POSITIONS STANDARD FLAT POSITION DECLINED POSITION... -
Page 10: Maintenance
MAINTENANCE IMPORTANT: Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that the equipment is maintained regularly. Any components found to be worn and/or damaged should be replaced before continuing use of the equipment.
