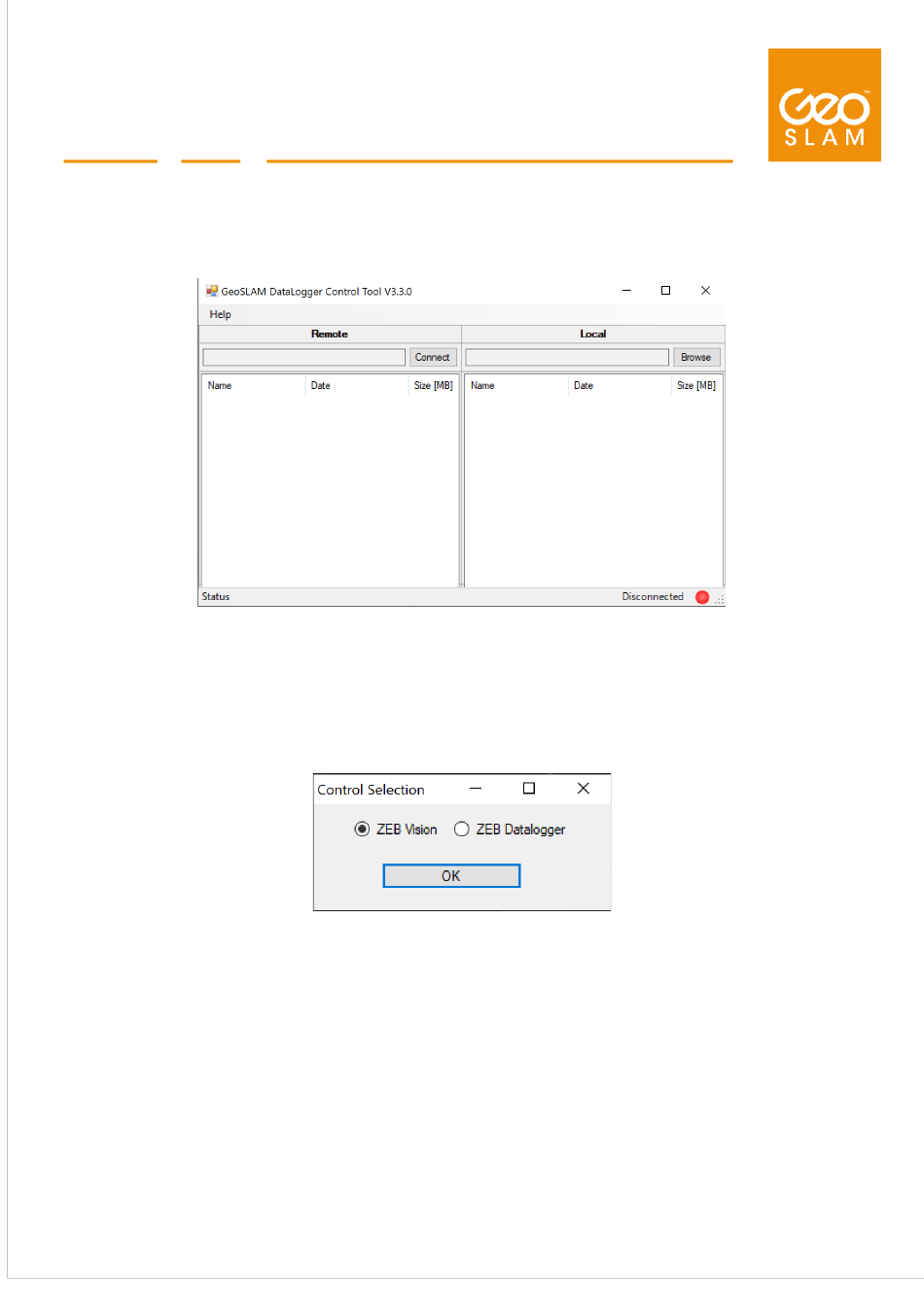

Figure 2. Geoslam Control Tool; Figure 3. Control Selection - GeoSlam ZEB Vision Firmware Update Manual

1. Connect the ZEB Horizon scanner to the datalogger using the main cable and power
on the system as normal.
2. Connect the camera to a PC as outlined in the ZEB Vision User Guide.
3. Open -> GeoSLAM Control Tool (Figure 2).

Figure 2. GeoSLAM Control Tool.

4. Select -> Connect, to open the Control Selection (Figure 3)

Figure 3. Control Selection.

5. Select -> ZEB Vision.
6. Select -> OK, to continue.
7. Input -> 169.254.0.206, at the IP address popup to detect the camera (Figure 4).
Page 5
