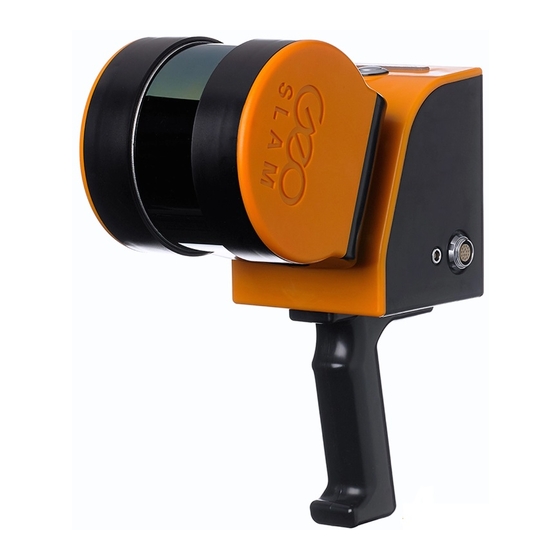

GeoSlam ZEB Horizon Hardware Manual
Uav mount
Hide thumbs
Also See for ZEB Horizon:
- Hardware user's manual (24 pages) ,
- Hardware manual (11 pages) ,
- Quick start manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for GeoSlam ZEB Horizon
Summary of Contents for GeoSlam ZEB Horizon
- Page 1 ZEB Horizon UAV Mount Hardware Guide Instructions for system installation on Freefly Systems Alta series UAV Version 1.0 Page 1...
- Page 2 GeoSLAM Ltd. GeoSLAM Ltd. provides this manual “as is”, without warranty of any kind and reserves the right to make improvements and/or changes to the product described in this manual at any time and without notice.
- Page 3 Notation Information that supplements or clarifies text. A caution that actions, operation or configuration may lead to incorrect or improper use of the hardware/software. A warning that actions, operation, or configuration may result in regulatory noncompliance, safety issues or equipment damage. Italics are used for unique terminology and part numbers, and Italics for emphasis.
- Page 4 Contents Part 1- Overview ........................6 Part 2 – Installation and Configuration ................. 6-8 Part 3 – Troubleshooting and Maintenance ................8 List of Figures Figure 1: Tith to UAV plate ...................... 6 Figure 2: ZEB and Data Logger to UAV plate ................. 7 Figure 3: Horizon Alta X UAV Plate ..................
- Page 5 Part 1- Overview This document describes how to install GeoSLAM’s ZEB Horizon portable laser scanner on the Freefly Systems Alta UAV. Part 2 – Installation and Configuration Step 1 Attach the Alta M4 ‘Toad in the Hole’ mount to the UAV plate (GS_510296) using the four...
- Page 6 Attached the ZEB Horizon and Data Logger to the UAV plate using the eight M4x12 slotted thumb screws provided as shown in Figure 2 below. Use a flat headed screwdriver to ensure all fastenings are secure. Figure 2: ZEB and Data Logger to UAV plate...
- Page 7 Part 3 - Troubleshooting and Maintenance In the event of a problem that cannot be resolved using the information supplied, please contact GeoSLAM. You can also gain assistance through the support page on our website: http://geoslam.com/support For further assistance, contact GeoSLAM Technical Support by telephone or email. Our Customer Support personnel will discuss your situation, determine the cause of the problem and provide the appropriate technical help.
