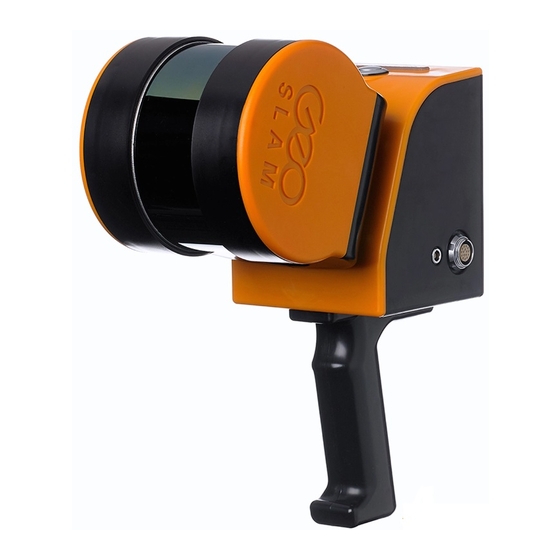

GeoSlam ZEB Horizon Quick Start Manual

3. 3.
To end the scan return Datalogger
to your start location. light sequence
Press and hold the
function button until the
STATUS DATA
rotation stops.
Once the orange data
LED is off the data is
ready for download.
4. 4.
Once the orange Data
Datalogger
LED is off the data is light sequence
ready for download.
Simply insert the USB
STATUS DATA
stick
Once the green LED is
off the data is on your
USB stick and ready to
be processed. Now you
can turn the system off
(press and hold the po-
wer button) or start up a
new scan.
Charging the batteries
Plug the charger into the AC mains – the LED light
will glow green.
Plug the charger lead firmly into the battery the LED
light will change to red to indicate charging.
When the LED light changes back to green, the
battery is fully charged.
For more information, troubleshooting and
best pratice guides, visit
geoslamacademy.com
