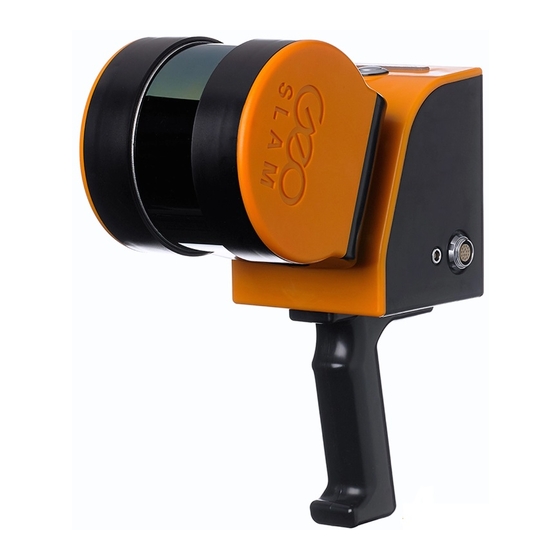

GeoSlam ZEB Horizon Hardware Manual
Installation onto a dji matrice 600 series uav using geoslam's quick release uav mount
Hide thumbs
Also See for ZEB Horizon:
- Hardware user's manual (24 pages) ,
- Hardware manual (7 pages) ,
- Quick start manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for GeoSlam ZEB Horizon
Summary of Contents for GeoSlam ZEB Horizon
- Page 1 ZEB Horizon UAV Mount Hardware Guide for DJI Matrice 600 series UAV. Instructions for installation. Version 1.0 Page 1...
- Page 2 GeoSLAM Ltd. GeoSLAM Ltd. provides this manual “as is”, without warranty of any kind and reserves the right to make improvements and/or changes to the product described in this manual at any time and without notice.
- Page 3 some states/jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply to the user. Version 1.0 Page 3...
- Page 4 Notation Information that supplements or clarifies text. A caution that actions, operation or configuration may lead to incorrect or improper use of the hardware/software. A warning that actions, operation, or configuration may result in regulatory noncompliance, safety issues or equipment damage. Italics are used for unique terminology and part numbers, and Italics for emphasis.
-
Page 5: Table Of Contents
Figure 4 – Upper and lower mount sections……………………………………………………………………...………8 Figure 5 – Attach the anti-vibration upper section of the UAV Mount……………………………………..8 Figure 6 – ZEB Horizon lower plate mounting points x 8…………………………………………………………...9 Figure 7 – Joining upper and lower sections of the UAV Mount………………………………………………10 Version 1.0... -
Page 6: Part 1- Overview
This document provides the basic information required to install the ZEB Horizon laser scanning system onto a DJI Matrice 600 series UAV using GeoSLAM’s quick release UAV Mount. For detailed information on the ZEB Horizon scanner refer to the ZEB Horizon User Guide. List of Parts: •... -
Page 7: Figure 2 - Loosen The Rail Clamps
• Loosen the four clamps which hold the two main rails in place and slide them out. Figure 2 – Loosen the rail clamps. • Remove the clamps themselves from the four posts. Access the screw head via the hole in the bottom of the clamp. Figure 3 –... -
Page 8: Figure 4 - Upper And Lower Mount Sections
On the central post of the UAV Mount, open the locking lever (D in Figure 4) and push in the sprung catch (E in Figure 3) to separate the upper (anti-vibration plate) and lower (ZEB Horizon plate) sections. Figure 4 – Upper and lower mount sections. -
Page 9: Figure 6 - Zeb Horizon Lower Plate Mounting Points X 8
Figure 6 – ZEB Horizon lower plate mounting points x 8. • Cable the system as instructed in the ZEB Horizon User Guide using the 0.85m short main cable provided to connect the scanner head to the data logger. •... -
Page 10: Figure 7 - Joining Upper And Lower Sections Of The Uav Mount
Figure 7 – Joining upper and lower sections of the UAV Mount. • Use the locking lever (labelled D in Figure 4) to secure into the desired position. The system can be mounted with either the scanning head or the data logger towards the direction of flight. -
Page 11: Part 3 - Troubleshooting And Maintenance
In the event of a problem that cannot be resolved using the information supplied, please contact the GeoSLAM support team. For further assistance, contact GeoSLAM Technical Support by telephone or email. Our Customer Support personnel will discuss your situation, determine the cause of the problem and provide the appropriate technical help.
