Summary of Contents for SCORPION SR-i900 Series

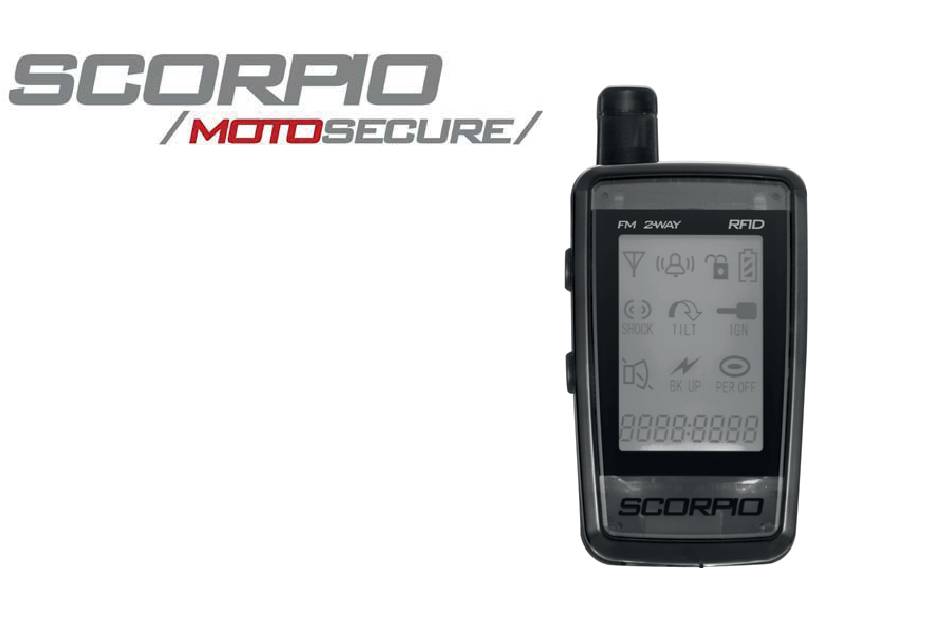

  • Page 1 SR-i900 Series V9.3...
  • Page 2 Installation User’s Guide Transceiver Information Optional Accessories Appendix...
  • Page 3: Table Of Contents

    Table of Contents Installation Component List Planning the Installation Panic / Stop Trigger Installation Diagram Auto Disarm Installation Warnings and Notes Manual Disarm Mounting the Components Manual Arm Routing the Antenna Wire Programming and Customizing Making Connections Instructions Color Code Chart Entering Programming mode Using the T tap Connectors Selecting Perimeter Sensor Default...
  • Page 4 Manual Override Procedure Programming Personal Override Code Enter Programming Mode Select number of flashes for Code Using Code in case of lost remote Transceiver Information Alarm Triggers Range Confirmation Signal Checking Violation Display Transceiver Battery Information Low Battery Stages Optional Accessory Instructions Perimeter Sensor (SN 5) Back up Battery Ignition Disable / Anti hijack Unit...
  • Page 5: Installation

    Installation Components Component Check List TRS-9 MCM-9 RFID antenna AC Adapter GEN-1 Adapter TRS-9 GEN-1(Bag) Transceiver T-taps x4 ACC-1(Bag) Velcro Pieces x2 Zip Ties x4 ACC-1 Dust Cap x1 HAR-1 (Bag) MCM-9 RFID HAR-1 antenna Planning the Installation Check that your motorcycle battery is fully charged. Check the layout of the motorcycle for placement of components.
  • Page 6: Installation Diagram

    --------------------- Installation Diagram --------------------...
  • Page 7: Installation Warnings And Notes

    Installation Warnings and Notes : Connect the (HAR-1) harness to the MCM only after installation is completed. Make sure remote is closed to bike to avoid a trigger. Note: When the main harness (HAR-1) is plugged in, the siren should chirp. If the siren does not chirp; check the alarm inline fuse, connection to battery (+),and connection to ground (-).
  • Page 8: Color Code Chart

    --------------------- Skip this page if using Factory Connector Kit -------------------- Color Codes: (Color codes are not always valid. Always verify before making connections) Ground (-) Tail Light Left Turn Signal Right Turn Signal Honda Green Brown Orange Blue Kawasaki Black Green Grey Suzuki...
  • Page 9: User's Guide

    User’s Guide Charging Instructions We recommend that the transceiver be charged for up to 12 hours to insure full life of the battery. 1. Plug in provided charger into the transceiver. System Status 2. While the transceiver is charging the Alert Type icon will scroll from empty to full.
  • Page 10: Operating Instructions

    Operating Instructions The SR-i900, by default, will be in auto arm mode and will activate with the perimeter sensor off and the siren on, five seconds after turning the ignition key off. Auto Disarm Auto Arm Siren: Turn ignition key Walk next to Siren: Chirp 1 Time...
  • Page 11: Programming And Customizing Instructions

    Programming and Customizing Instructions Entering Programming Mode Programmable Press button 2 Press button 2 options will be again to scroll Twice quickly displayed. through to enter The selected programmable programming icon will flash options mode Press button 1 to select icon Note.
  • Page 12: Selecting Transceiver Alert Type

    Selecting Transceiver Alert Type (Audible/Silent/Vibrate) Enter programming mode. Scroll to the the icon, press button 1 to select. The LCD will display the current settings. To program follow these steps: – Transceiver will vibrate and Press Press button 1 to sound when a trigger occurs button 2 to scroll between the...
  • Page 13: Selecting Siren Default

    Selecting Siren Default Enter programming mode. Scroll to the icon and press button 1 to enter the siren menu. The LCD will display the current setting. To program follow these steps: Press Press button 1 to button 2 to scroll between the –...
  • Page 14: Encoding The Transceiver

    Encoding a Transceiver Note: The transceivers are programmed from the factory. Encoding is only necessary should the transceiver lose its code and will not arm or disarm the security system or if a second or replacement remote is obtained. Unplug HAR-1 from the MCM-9 and plug it back in, the siren will chirp 2 times and the lights will flash 2 times.
  • Page 15: Additional Information

    Additional Information Sensor Memory Display When the system is disarmed the turn signals will flash to indicate if there has been an alarm trigger. The lights will flash once to indicate that the system has been disarmed, additional flashes indicate that the following trigger has occurred: 1 flash then 1 additional flash Shock Trigger...
  • Page 16: Manual Override Procedure

    Manual Override Procedure Programming Personal Override code (This feature will work on most but not all bikes) A personal override code will be a sequence of left – right - left turn signal flashes that can be used if the remote is lost to disable the alarm: Enter programming Mode Manually disarm system Turn ignition on –...
  • Page 17: Transceiver Information

    Transceiver Information Alarm Triggers When the system is triggered, the siren will sound and the turn signal lights will flash. The transceiver’s LCD will display the following messages: If bike is bumped, the LCD will display icon. The siren on the bike will sound for 5 seconds and the lights will flash.
  • Page 18: Range Confirmation Signal

    RCS (Range Confirmation Signal) If the transceiver is within range of the MCM and the alarm is activated, the LCD will display icon. If the transceiver does not receive the RCS; the icon will not appear. Checking Violation Display with Time Stamp If no alarm triggers in memory, all If the system was triggered, the last triggered sensor icons will be displayed...
  • Page 19: Transceiver Battery Information

    Transceiver Battery Information The receiver consists of two functions RFID functions and Two-way FM communication. Low Battery Stages It’s recommended that the transceiver be charged daily. If the transceiver is not charged daily the following stages will occur. Low Battery: When the battery is low the icon will cycle from 3 bars to 2 bars to 1 bar.
  • Page 20 Optional Accessories: Perimeter Sensor (SN-5) Back-up Battery (BAT-5) Ignition Disable (RID-5)
  • Page 21: Perimeter Sensor (Sn 5)

    Perimeter Sensor (SN-5) Mounting the SN-5 The Perimeter sensor uses high frequency microwave technology to detect mass density movement around the motorcycle. The signal can transmit through the seat, fiberglass, leather and plastic, but not metal. It is recommended to place this sensor under the seat as close as possible to the center of the motorcycle.
  • Page 22: Back Up Battery

    Back-up Battery (BAT-5) The back-up battery provides the system the ability to transmit information and activate the siren when power is interrupted. If power is ever interrupted while the system is activated the back-up battery will be engaged. The transceiver will receive a trigger and the siren will sound in 30 second increments.
  • Page 23: Ignition Disable / Anti Hijack Unit

    Ignition Disable / Anti-hijack Module (RID-5) Installation Cut the Ignition / Engine control wire (refer to options on page 22) Attempt to start bike to test if correct wire is selected. If bike starts the wrong wire is selected. (contact Aritronix for assistance) If bike does not start, correct wire was selected continue to step 3.
  • Page 24 Ignition / Engine Control Wire Options: Option #1: Positive lead wire on fuel pump Option #2: Positive lead wire on fuel injection system Option #3: Positive wire that goes to the ignition fuse in fuse box. This should be either a 10 or 15 amp fuse labeled IGN.
  • Page 25: Appendix

    Appendix...
  • Page 26: Troubleshooting Guide

    Troubleshooting guide Problem Possible Cause Solution Will not arm Verify connection from MCM to RFID RFID antenna not connected antenna Verify connection to power lead and Power or ground not connected ground connection Verify connection to 12 volt wire with Orange wire not connected key on.
