Bike
KTM RC 390
Year
2017-Current
Notes
Where not supplied use original fittings
Estimated Fitting Time: 60 Minutes
1
4
3
NO.
PART NO.
DESCRIPTION
1
RSC414

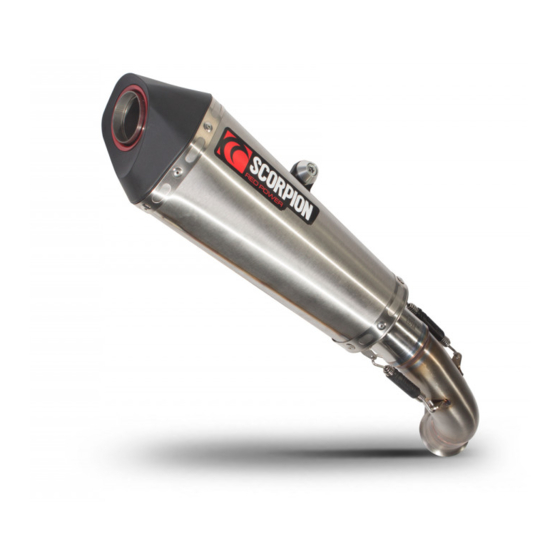

Serket Taper Silencer
2
CP956
Connecting Pipe
Fit Kit - Z039.10614
3
Z017.10076
M8 x 40mm Cap Head Bolt
4
Z026.20068
Alloy Bolt Finisher
5
Z017.10825
M8 x 25mm Washer
6
Z017.10062
M8 Nyloc Nut
7
Z028.10030
Rubber Coated Spring
NOTE:
ENSURE SCORPION SYSTEM IS CLEAR OF MOVING PARTS AND ALL ORIGINAL FUNCTIONS WORK CORRECTLY.
STAY CONNECTED TO RED POWER.
Part No.
Fit Kit
dB Killer
6
5
//
FITTING INSTRUCTIONS
RKT-89
Z039.10614
SCEXDBK37 - (TYPE WW)
7
2
QTY
E-MARK
DATE
1
ISSUE
1
AUTHORISED
1
1
1
1
2
7
E11 00522
19/10/17
00
M.Ydlibi
