SCORPION RKT-72 Fitting Instructions

Box: PLOCK 2
BIKE
KTM 125 Duke / Duke 200
YEAR
2011 - 16 / 2012 - 16
NOTES Remove original bolt behind heel plate then fit item 9
1
L AR G E L ANDS C AP E B ADG E
Z019.10110
7
6
1 Serket Conical Silencer RSC 214
2 2 x Red Power Springs (Z028.10030)
3 Connecting Pipe CP653
4 2 x M8 Nyloc Nut (Z017.10062)
5 3 x M8 x 17mm Washer (Z017.10831)
6 M8 x 25mm Caphead Bolt (Z017.10073)
7 Aluminium Bolt Finisher (Z026.20068)
NOTE: ENSURE SCORPION SYSTEM IS CLEAR OF MOVING PARTS AND ALL ORIGINAL FUNCTIONS WORK CORRECTLY.
A
PART NO.
FIT KITS
DB-Killer
5
10
4
12
2
2
8 40-43mm Band Clamp (Z016.10007)
9 M6 x 20mm Hex Head Bolt (Z017.10611)
10 Silencer Mounting Bracket (Z015.30940)
11 M8 x 20mm Caphead Bolt (Z017.10072)
12 M6 x 12mm Washer (Z017.10617)
FITTING INSTRUCTIONS 1/2
RKT-72
Z039.20428
SCEXDBK23 - (Type V)
9
3
E-MARK
ISSUE NO.
DATE
AUTHORISED
CHECKED
A) Remove original exhaust from
bike, taking care to keep all original
components in a safe place.

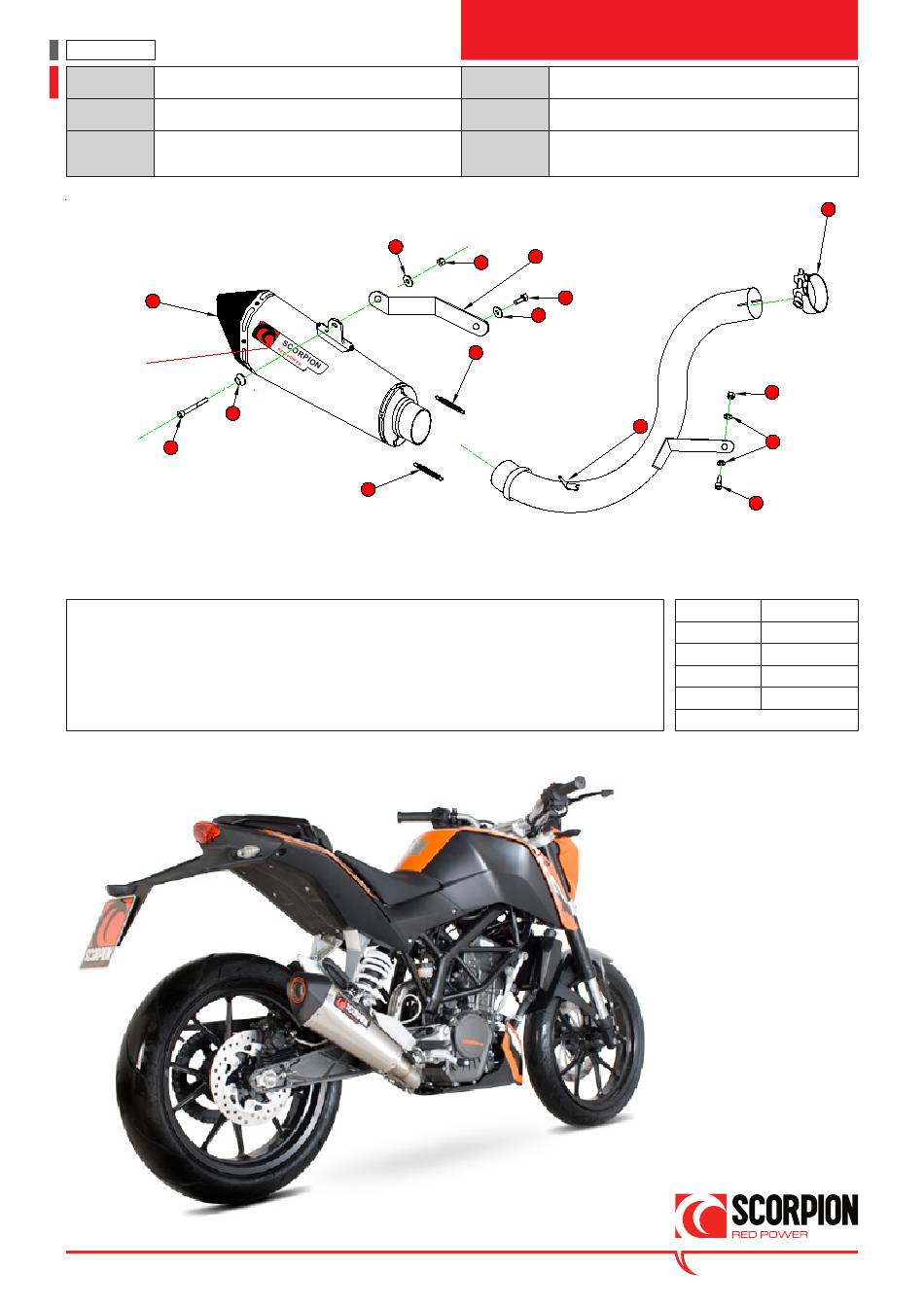

B) Refit Scorpion exhaust as per
line diagram above.
C) When fitted take bike for a short
ride to ensure all functions are
correct.
D) When bike & exhaust are cool
enough check all nuts and bolts are
still secure.
Cleaning instructions overleaf:
8
4
5
11
SC24 e4 2167
05
18/10/2018
J.Harkin
scorpion-exhausts.com
