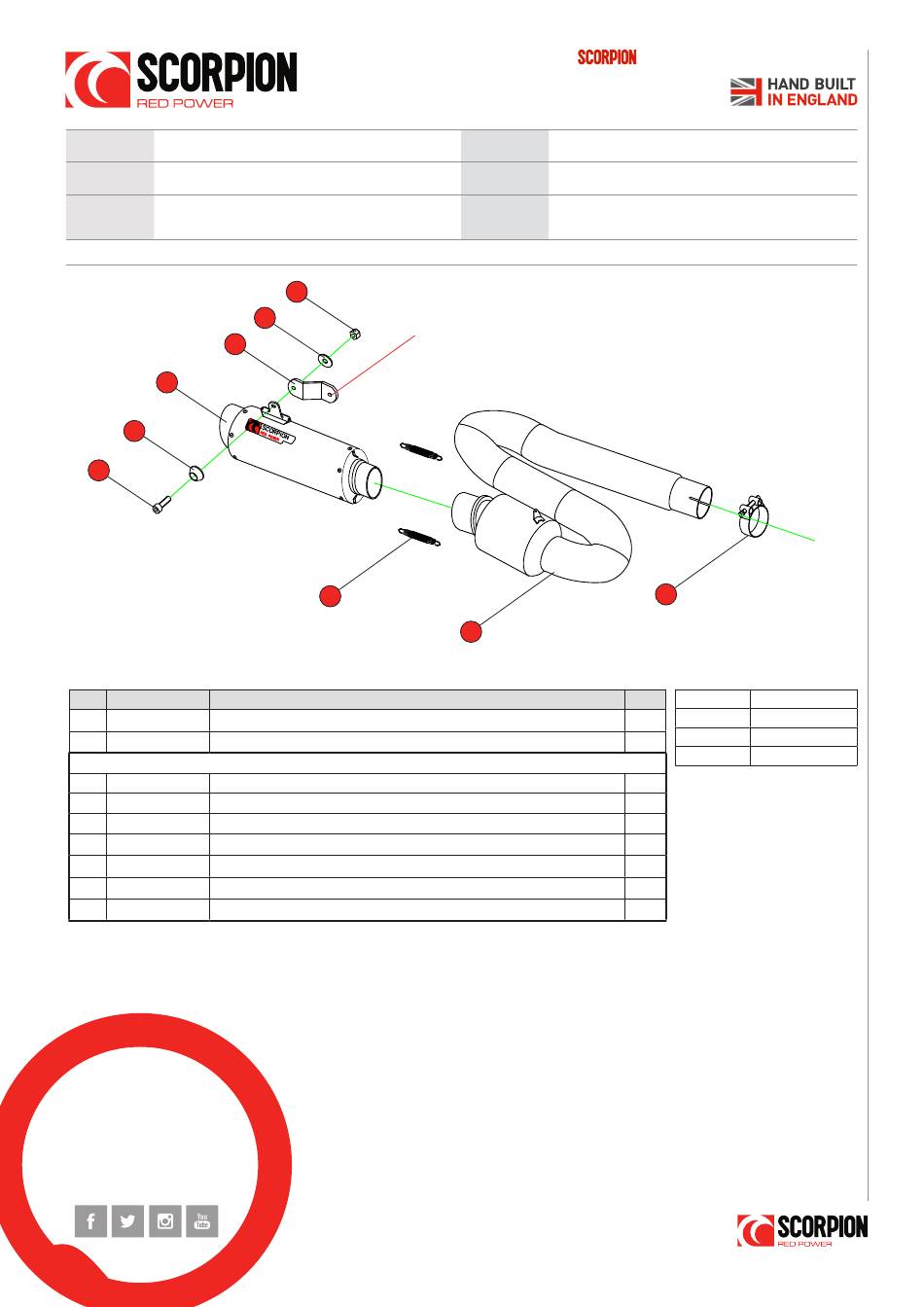

SCORPION TR-1001 Fitting Instructions

Triumph street triple 2017-2019

Advertisement

Bike
Triumph Street Triple
Year
2017-2019

Notes

Where not supplied use original fittings
Fits to S, R & RS models.
Estimated Fitting Time: 60 Minutes
5
1
4
3
NO.
PART NO.
DESCRIPTION
1
SC408
RP1-GP Silencer
2
CP954
Connecting Pipe
Fit Kit - Z039.10610
3
Z017.10073
M8 x 25mm Cap Head Bolt
4
Z026.20068
Alloy Bolt Finisher
5
Z015.31323
Mounting Bracket
6
Z017.10825
M8 x 25mm Washer
7
Z017.10062
M8 Nyloc Nut
8
Z028.10030
Rubber Coated Spring
9
Z016.10008
43-47mm Clamp
STAY CONNECTED TO RED POWER.
7
Bracket fits behind the original mounting point.
6
Use original fittings.
8
//
Part No.
TR-1001
Z039.10610
Fit Kit
dB Killer
SCEXDBK30 - (Type PP)
2
QTY
1
1
1
1
1
1
1
2
1
FITTING INSTRUCTIONS
9
E-MARK
e11 00521
DATE
26/05/20
ISSUE
02
AUTHORISED
M.YDLIBI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-1001 and is the answer not in the manual?

Questions and answers

Summary of Contents for SCORPION TR-1001

  • Page 1 FITTING INSTRUCTIONS Bike Part No. TR-1001 Triumph Street Triple Z039.10610 Year 2017-2019 Fit Kit Notes dB Killer SCEXDBK30 - (Type PP) Where not supplied use original fittings Fits to S, R & RS models. Estimated Fitting Time: 60 Minutes Bracket fits behind the original mounting point.
  • Page 2 D) Unscrew the second original silencer mounting bolt. E) Remove the silencer from the bike. F) Following the diagram above, loosely fit the Scorpion system. G) Check the clearance between the pipework and the rear tyre, this requires a minimum spacing 45mm.
  • Page 3 FITTING INSTRUCTIONS Bike Part No. TR-1001 Triumph Street Triple Year Fit Kit Z039.10610 2017-Current Notes dB Killer SCEXDBK30 - (Type PP) Where not supplied use original fittings Fits to S, R & RS models. I) Looking from the rear of the bike ensure the silencer does not protrude past the foot peg.
  • Page 4 Merci d’avoir choisi un echappement Scorpion. Entretien de votre silencieux: Ne pas utiliser de solvants ou de produits abrasifs! Muchas gracias por adquirir un Silencioso Scorpion. Le recomendamos no limpiar el silencioso con productos abrasivos o aquellos que contengan disolventes.
