1

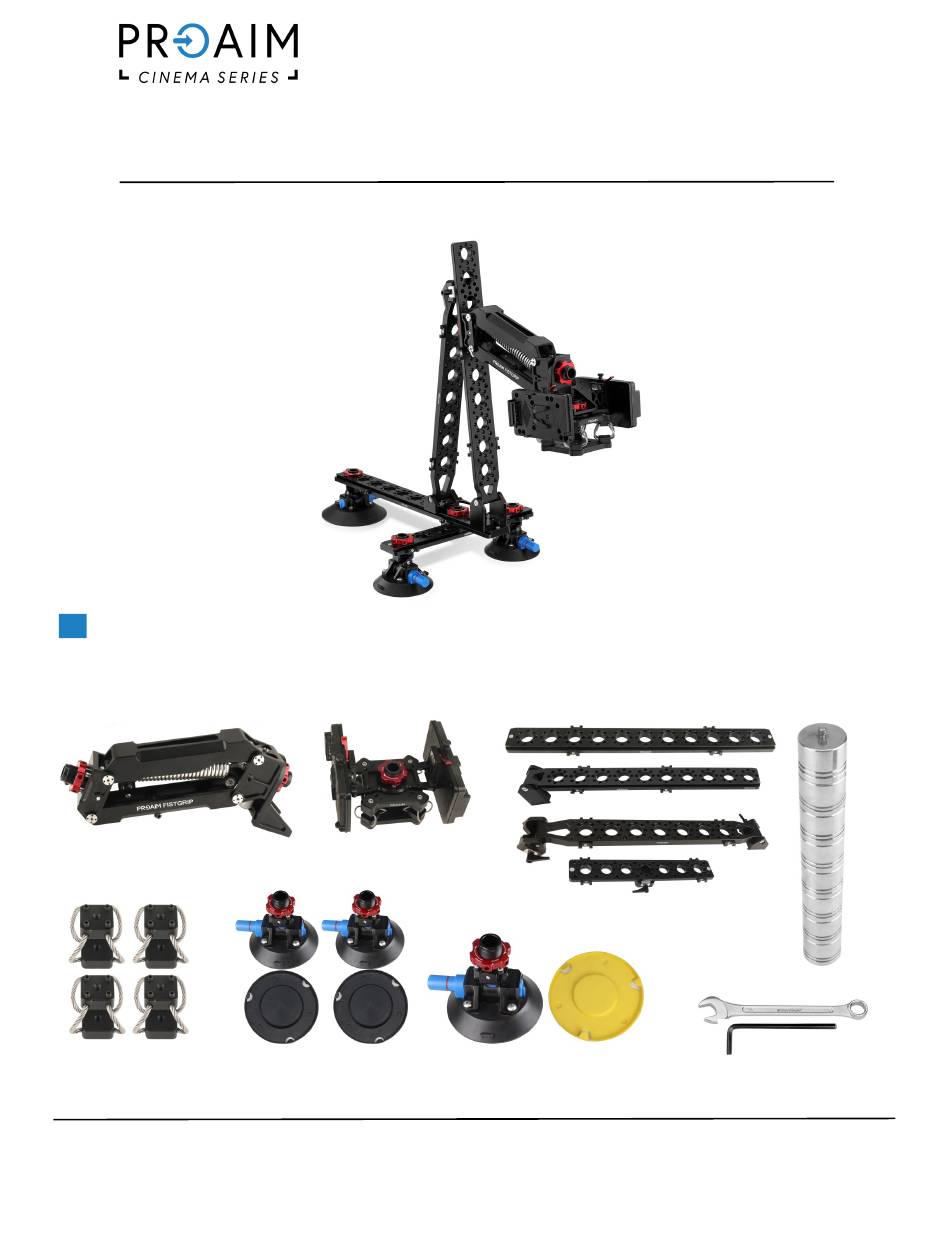

Fistgrip Car Mount with Shock Absorbing System
(GP-FTGP-01)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Shock-Absorbing Head with
Shock-Absorbing Arm
2 x V-Mount Battery Plate
4 x Dovetail Plates
8 x Counterweight
4 x Shock-Absorbing
1 x Spanner (Size:13)
2 x Small Suction Cup
1 x Large Suction Cup with
Adapter
1 x L-Type Allen key (4mm)
with Dust Cover (Black)
Dust Cover (Yellow)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Related Manuals for PROAIM GP-FTGP-01
Summary of Contents for PROAIM GP-FTGP-01
- Page 1 Fistgrip Car Mount with Shock Absorbing System (GP-FTGP-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 1 x DJI - QR Plate 2 x Safety Belt (Pair) Flight Case P-QRG Fistgrip Car Mount Setup • Remove the blue dust cover of the Suction Car Mount. NOTE: All suction cups come with dust covers to protect grippers from dust & provide maximum surface adhesion.
- Page 3 • Tighten the assembly with the castle ring and also, tighten and attach the other rings. • Properly tighten the castle ring with the help of the Allen key, as shown in the image. • Loosen the center castle ring of the dovetail plate, and then remove it.
- Page 4 • Secure it with the castle ring, and then tighten it using the Allen key. • Loosen the knob on the dovetail plate and then push the push-pin button of the other plate. • Attach the dovetail plate by sliding it onto the other plate.
- Page 5 Larger Section Cup Assembly • Remove the yellow dust cover of Suction Car Mount. • Loosen and remove the castle ring on the suction cup. • Insert the suction cup into the end hole of the dovetail plate, and then mount it on your vehicle’s bonnet.
- Page 6 • Loosen and remove the castle ring of the shock absorbing arm. • Match the shock absorbing arm to the free holes of the dovetail plate, and then insert it. Secure it from the back end of the dovetail plate using the castle ring. •...
- Page 7 • Match the threads of the shock absorbing head with DJI-QR plate to insert the bolts and then tighten them using the Allen key. • Then attach the (P-QRG) plate with Ronin Gimbal (Not Included) and tighten it properly with the help of a screw driver. •...
- Page 8 • Insert the safety belt into one of the holes of the dovetail plate and then tie it into a strong knot. • Insert the other end of the belt into the ratchet, as shown in the image. • Fasten the hook onto your vehicle. •...
- Page 9 And any of them can be used in range of load capacity of heavy & light ranged. YOUR PROAIM FISTGRIP CAR MOUNT WITH SHOCK ABSORBING SYSTEM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase.
