PROAIM VCTR-CM Assembly Manual

Camera mount system for camera cart

Camera Mount System for Camera Cart

(VCTR-CM)

A s s e m b l y M a n u a l

What's In The Box

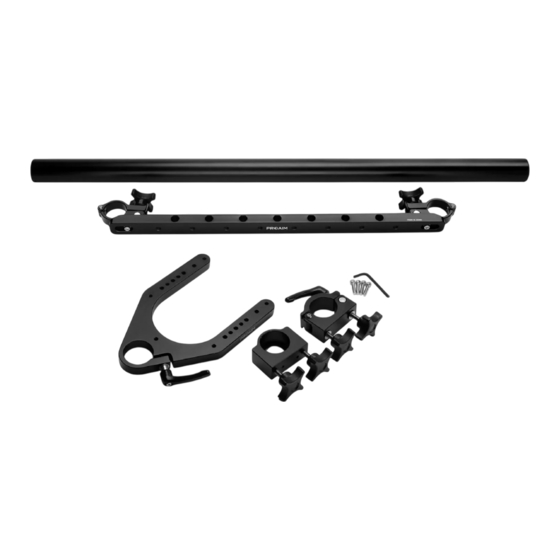

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Accessory Cross-Bar

91cm Rod

3/16mm Allen key,

1/4 x 25mm Bolt

Clamp A

Clamp B

Horseshoe

Mount

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the VCTR-CM and is the answer not in the manual?

Page 1 Camera Mount System for Camera Cart (VCTR-CM) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Camera Mount System Setup • Align and attach clamp B to the accessory crossbar, insert the knobs and tighten them properly. • Loosen the side clamp knobs of the crossbar and mount the crossbar on the rods of the cart. •...
Page 3 • Insert the 91cm rod into both the clamp holes. • Tighten the ratchet knob of clamp B. Horseshoe Mounting • Slide the Horseshoe Mount onto the 91cm Rod. Note: You can change the position of the Horseshoe Mount on the Rod as per your requirement.
Page 4 • Cart setup with Camera Mount System is ready. YOUR PROAIM CAMERA MOUNT SYSTEM FOR CAMERA CART ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
