PROAIM P-GMBC-01 Assembly Manual

Download this manual

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

Big Weights: 4

Small Weights: 6

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

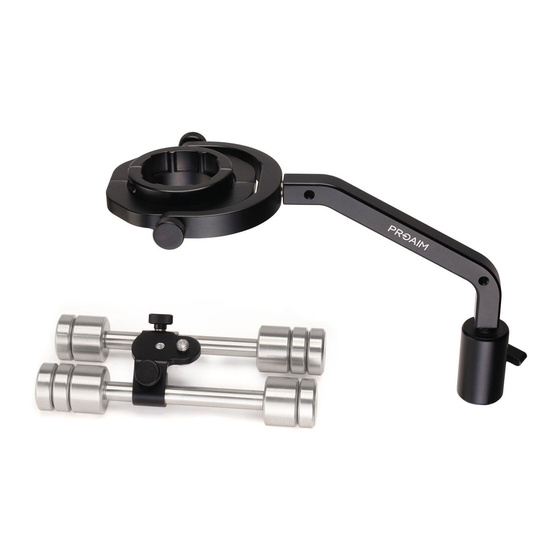

Gimbal Mount for DJI Ronin-S

A s s e m b l y M a n u a l

Weight platform

Mounting Adapter

Weight Rods

statutes or in writing by the Publisher.

Gimbal handle with

tighten knobs

(P-GMBC-01)

Outer Collar with screws

Inner collar with rubber

Spacer Set

Allen key

Page 1 Gimbal Mount for DJI Ronin-S (P-GMBC-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Gimbal Mount Setup  Insert Rubber Spacer Set into the inner collar, then tighten it with the help of provided Allen key.  The outer collar comes with already attached degree rotatable shanks. Attach the outer collar outside the inner collar as shown in the image.
Page 3  Loosen the knob & mount the converter adaptor onto the C-Stand.  Insert the assembled collar into the adapter , after that mount your camera.  converter adaptor is also compactable with 12mm to 16mm vest diameter hole.  Insert the weight platform nto the Ronin-s gimbal base/lower side &...
Page 4 YOUR PROAIM GIMBAL BRACE MOUNT FOR DJI RONIN-S, ZHIYUN CRANE 2 & STABILIZER ARM VEST ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
