1

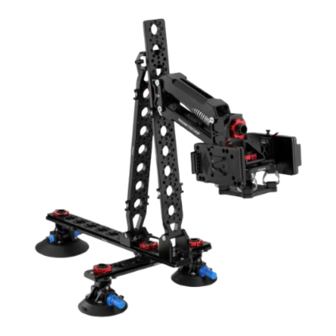

Fistgrip Car Mount with Shock Absorbing System
(GP-FTGP-01)
A s s e m b l y M a n u a l

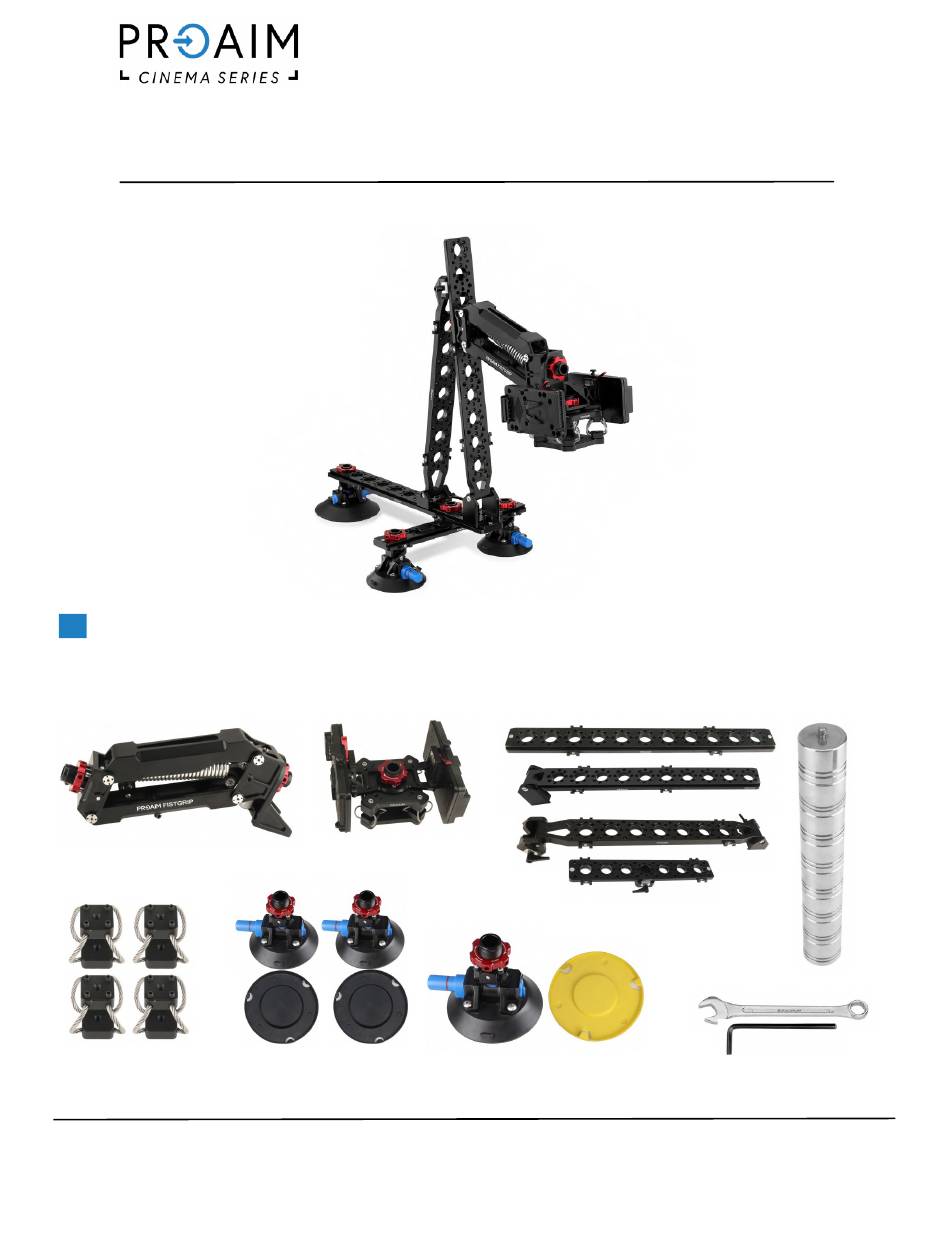

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Shock-Absorbing Head with
Shock-Absorbing Arm
2 x V-Mount Battery Plate
4 x Dovetail Plates
8 x Counterweight
4 x Shock-Absorbing
1 x Spanner (Size:13)
2 x Small Suction Cup
1 x Large Suction Cup with
Adapter
1 x L-Type Allen key (4mm)
with Dust Cover (Black)
Dust Cover (Yellow)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM GP-Fistgrip-01
Summary of Contents for PROAIM GP-Fistgrip-01
- Page 1 Fistgrip Car Mount with Shock Absorbing System (GP-FTGP-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 1 x DJI - QR Plate 2 x Safety Belt (Pair) P-QRG Bag Packing Fistgrip Car Mount Setup • Remove the blue dust cover of the Suction Car Mount. NOTE: All suction cups come with dust covers to protect grippers from dust & provide maximum surface adhesion.
- Page 3 • Mount a dovetail plate on the suction cup and properly attach it. • Tighten the assembly with the castle ring and also, tighten and attach the other rings. • Properly tighten the castle ring with the help of the Allen key, as shown in the image. •...
- Page 4 • Mount the dovetail plate properly by aligning it with the adapter. NOTE: Multiple free holes have been provided in the dovetail plate. The dovetail plates come with multiple built-in expansion screws to flexibly link the plates together to achieve any desired shooting angle possible.
- Page 5 • Retighten the knob of the dovetail plate, as shown in the image. Large Suction Cup Assembly • Remove the yellow dust cover of Suction Car Mount. • Loosen and remove the castle ring on the suction cup. • Insert the suction cup into the end hole of the dovetail plate, and then mount it on your vehicle’s bonnet.
- Page 6 • Tighten the castle ring using the Allen key, as shown in the image. • Loosen and remove the castle ring of the shock absorbing arm. • Match the shock absorbing arm to the free holes of the dovetail plate, and then insert it. Secure it from the back end of the dovetail plate using the castle ring.
- Page 7 • Attach DJI-QR plate to the bottom plate of the shock absorbing head. • Match the threads of the shock absorbing head with DJI-QR plate to insert the bolts and then tighten them using the Allen key. • Then attach the (P-QRG) plate with Ronin Gimbal (Not Included) and tighten it properly...
- Page 8 • One of the safety belts has a hook, while the other has both a hook and a ratchet. • Insert the safety belt into one of the holes of the dovetail plate and then tie it into a strong knot.
- Page 9 • It lets you set up your camera in a multitude of positions onto the car through a smartly featured modular dovetail mounting frame and enhanced suction system. NOTE: Test all fixtures before driving. NOTE: It has two cable blocks to support the gimbal and absorb inertial motion.
- Page 10 YOUR PROAIM FISTGRIP CAR MOUNT WITH SHOCK ABSORBING SYSTEM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
