1

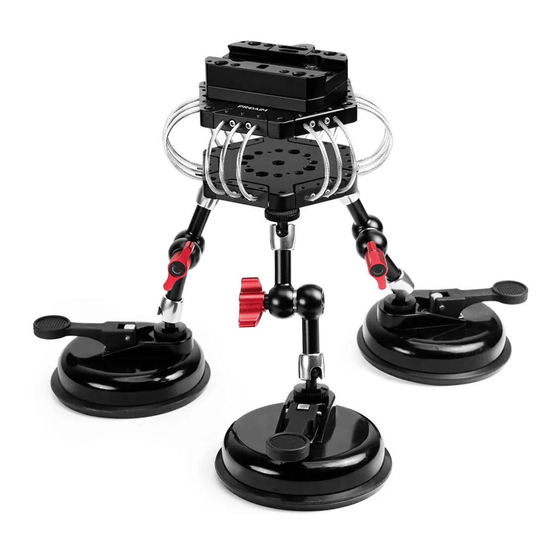

Iso-Grip Vibration Isolator Car Camera Suction Mount
(CM-ISGP-01)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
3 x Dust Covers
1 x DJI - QR Plate
3 x Allen Keys
(sizes: 2.5mm, 3mm, 4mm)
1 x Suction Car Mount
LN CSK Bolts
Bag Packing
2 x 1/4"x 30mm
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PROAIM CM-ISGP-01
Summary of Contents for PROAIM CM-ISGP-01
- Page 1 Iso-Grip Vibration Isolator Car Camera Suction Mount (CM-ISGP-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Iso-Grip Vibration Isolator Setup • Remove the black dust covers of the Suction Car Mount. • Open the quick lock lever manually, as shown in the image. • Place your first suction cup on selected position where you want to shoot and Mount the suction cup gripper on a flat surface, as shown in the image.
- Page 3 • Place the DJI-QR Plate onto the Suction Car Mount. • Then insert an Allen CSK Bolt and tighten properly using a 4mm Allen key. • Follow the same process on the other Allen CSK Bolt. • Loosen the knob of the DJI-QR Plate. •...
- Page 4 NOTE: It has wire cable blocks that absorb inertial movements and support a 3-10 kg / 6-22lb heavy payload; Use these blocks in different configurations to precisely achieve the lift needed. Load Adjustment, Removable Cables & Tie-Down Blocks YOUR PROAIM ISO-GRIP VIBRATION ISOLATOR CAR CAMERA SUCTION MOUNT ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
- Page 5 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
