PROAIM P-WV-2PP Assembly Manual

7' wave-2 camera jib crane, pan tilt, dolly stand
Hide thumbs Also See for P-WV-2PP:

Advertisement

Quick Links

Download this manual
1
7' Wave-2 Camera Jib Crane, Pan Tilt, Dolly Stand
(P-WV-2PP)
A s s e m b l y M a n u a l

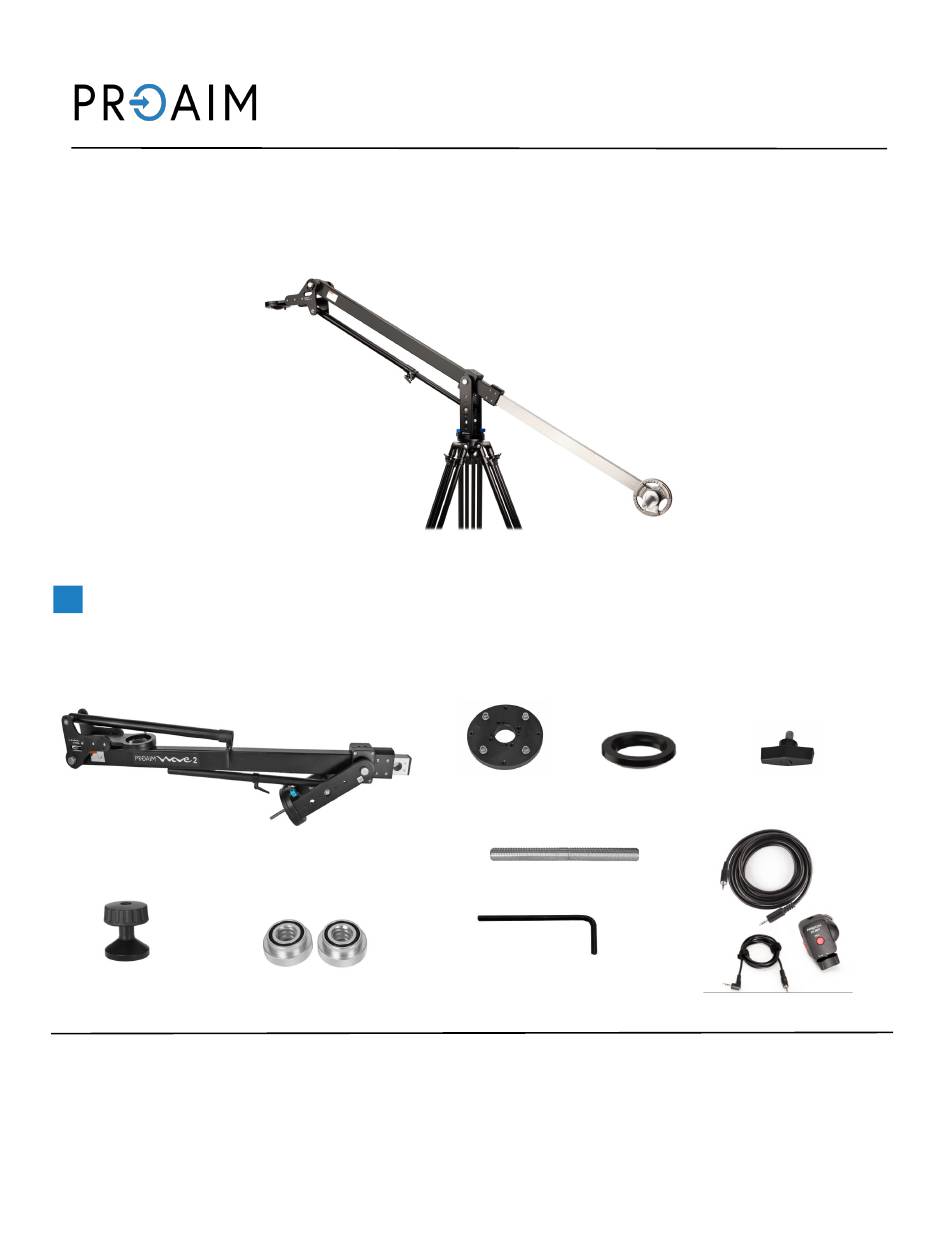

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
75 mm
Knob
Flat Base Plate
Conversion
7' Wave Jib Crane with 100mm Bowl
Weight Rod
Weight Closers
1 X L-Type Allen Key
Locking Knob
Proaim Lanc Zoom Controller
(Size: 3/16")
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

loading
Need help?

Need help?

Do you have a question about the P-WV-2PP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM P-WV-2PP

Summary of Contents for PROAIM P-WV-2PP

  • Page 1 Weight Closers 1 X L-Type Allen Key Locking Knob Proaim Lanc Zoom Controller (Size: 3/16”) All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
  • Page 2 Jr. Pan-Tilt Head 12V AC Adapter 3 mtr Cable, 12V Joystick Controller 15 mtr XLR Cable 2 x Fuse Safety cap Universal Adapter Jr. Pan -Tilt Head 2 X L-Type Allen Keys 1/4” MS Check (Size: 2mm, 3/16”) 4 x Wings Nut CST-100 Tripod Stand , Spreader &...

  • Page 3: Table Of Contents

    INDEX Sr. No Particulars Page No. CST-100 Tripod Stand Assembly Aluminum Tripod Spreader Portable Dolly Assembly CST-100 Stand Mounting on Dolly Jib Section Assembly Jib mounting on Tripod Stand Weight Rod & Weight Mounting 75mm Conversion Ring setup 10-11 100mm Bowl setup Flat Base Plate Setup Jr.

  • Page 4: Cst-100 Tripod Stand Assembly

    Camera Jib Setup CST-100 Tripod Stand Assembly • Stretch and open the legs of the Tripod Stand. • To adjust the height of the tripod, loosen all three adjustment knobs. • Adjust the tripod at the desired height and re-tighten the knobs to secure the tripod. NOTE: The Stand has a minimum and maximum height of 33.5"...

  • Page 5: Aluminum Tripod Spreader

    Aluminum Tripod Spreader • Unlock the Spreader's knob and extend the foot's length. • Once the foot has been extended to the desired length, re-lock the knob to secure it. • Repeat the same process to extend the length of the remaining two Spreader feet. NOTE: Each leg has adjustable knobs that allow for stable adjustment of the tripod's height.

  • Page 6: Portable Dolly Assembly

    Portable Dolly Assembly • Loosen the side bolt of the portable Dolly using the 13mm spanner. • Remove the Bolt nut, washer, and Bolt. • Repeat the same steps to remove the side Bolt from the other side of the Dolly. •...

  • Page 7: Cst-100 Stand Mounting On Dolly

    CST-100 Stand Mounting on Dolly • Now, place the tripod foot on the Dolly and tie it down with the help of elastic clips, as shown in the picture. • Press the clamps to lock the wheels at a static position.

  • Page 8: Jib Mounting On Tripod Stand

    NOTE: Ensure the central fork is properly seated in the tripod bowl, maintaining a perpendicular position. Any off-axis installation can hinder the jib's movement. During installation, the arm will be front-heavy; therefore, use a grip stand or have an assistant hold the camera end to prevent it from falling. Similarly, when mounting the camera, you may need a grip stand or assistance at the rear of the jib to ensure stability and prevent any mishaps.
  • Page 9 • After adding weight, insert a weight closure to secure the weight from falling. NOTE: It's crucial to ensure that the opposite end of the jib arm is correctly secured to prevent any sudden upward movement when adding additional weights. This measure is essential to maintain stability and safety during operation.

  • Page 10: 75Mm Conversion Ring Setup

    75mm conversion Ring 100mm conversion Ring Flat Base Plate 75mm Conversion Ring Setup NOTE: Wave jib has a 100mm bowl attached to its Camera plate. • Attach the 75mm conversion ring to the 100mm bowl. • Now, mount 75mm Fluid head (Not Included) on the Conversion ring and...
  • Page 11 • Your Camera is now securely mounted on the fluid head. 100mm Bowl Setup • Mount the 100mm Fluid head (Not Included) on the 100mm bowl and secure it using the locking knob. • Remove Quick release plate (Not Included) from the Fluid head.

  • Page 12: 100Mm Bowl Setup

    Flat Baseplate Setup NOTE: Remove the 100mm Bowl before mounting the Flat baseplate. • Remove the bolts and attach the Flat Baseplate to the bottom of the camera mount. • Now, insert the bolts as shown in the image. NOTE: Attach the flat base plate to the bottom of the camera mount for the underslung Camera setup.

  • Page 13: Balancing Tips

    NOTE: Jib Section is adjustable, so the balancing chart is flexible, not exact. Balancing Tips : 7ft Length Self Balance 2.48 kg With 1kg Setup 2.48 kg +1.26kg 4.10ft Length Self Balance 33.45 kg With 1kg Setup 33.45 kg + 9.78kg...
  • Page 14 YOUR PROAIM 7' WAVE-2 JIB CRANE / GIMBALS / PAN TILT HEADS/DOLLY STAND ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts.
