Summary of Contents for Displays2go gravitee GK-2023

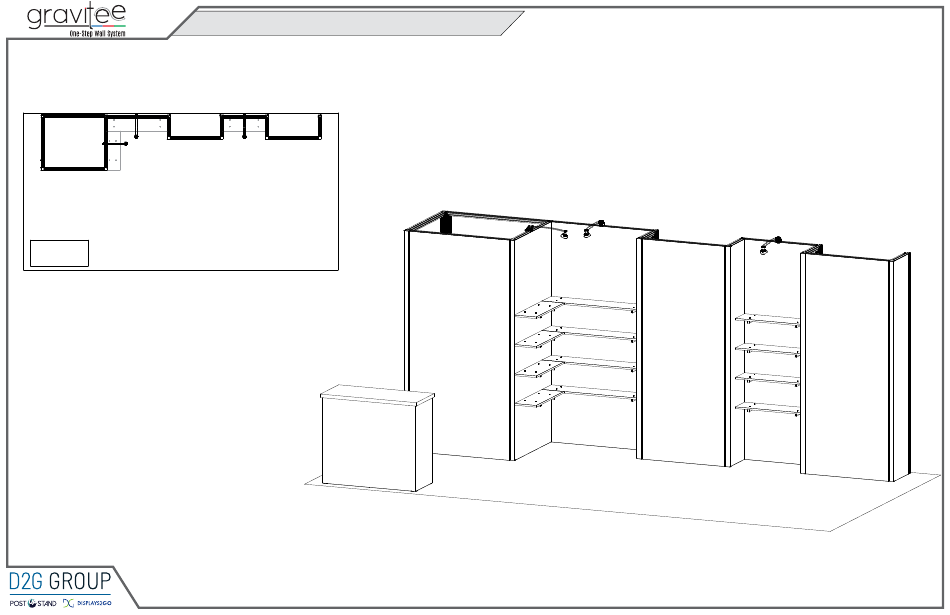

- Page 1 © 2022 Order #XXXXX GK-2023 - 10’ x 20’ Display 10’ 20’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: Plan View
© 2022 Order #XXXXX Plan View = 1 sq foot... -
Page 3: General Setup Instructions
© 2022 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. -
Page 4: Side-By-Side
© 2022 Order #XXXXX Gravitee Assembly Assembly Assembly Cont’d Push pin lock into hole of connecting frame. Note: Block of pin lock will secure in groove. Side-by-Side Assembly Corner Connector 1) Frames: Place frames side-by-side with one higher than the other, then slide panel down to lock panels securely together. - Page 5 © 2022 Order #XXXXX Crate Packing CRATE PACKING Crate 1 of 1...
-
Page 6: Top View
© 2022 Order #XXXXX Backwall Assembly Item Qty. Description 38”w x 95”h Gravitee panel w/ S44 94.5”h Gravitee corner post w/ caps 46”w x 95”h Gravitee lightbox panel 94.5”h Gravitee corner post w/ caps 38”w x 95”h Gravitee panel w/ Door 94.5”h Gravitee corner post w/ caps 46”w x 95”h Gravitee panel TOP VIEW... - Page 7 © 2022 Order #XXXXX Light Connection Steps: 1) Connect power cords to LED lights in panels [3], [13] & [21]. Light Connection detail. Light Connection L i g h t Light to Light Attachment P a n e L i g h t P a n e Connect lights together as shown.
- Page 8 © 2022 Order #XXXXX SEG Graphics Steps: 1) Apply SEG Graphics to panels as shown. 2) Attach Perf Light to top of panels [1,9,17]. See Light Attachment detail. S E G G r a p SEG Graphic Installation h ic S E G Corner A Corner B...
-
Page 9: Side View
© 2022 Order #XXXXX Shelf Attachment Item Qty. Description Steps: 29.875”w x 10”d Shelf w/ Z31 1) Attach Shelves to vertical extrusions in panels [9], [17] & [1] as shown. 32.25”w x 10”d Shelf w/ Z31 Shelf Attachment detail. 45.75”w x 10”d Shelf w/ Z31 When assembled 47.75”w Shelves 32.25”w Shelves... - Page 10 © 2022 Order #XXXXX GJOD-1558 Counter Assembly Item Qty. Description Steps: 38”h Gravitee Corner Post w/ Door Attachment 1) Assemble Gravitee panels and posts in numerical order, as shown, 14.125”w x 38”h Gravitee Panel Frame making sure Velcro is facing inward. See Gravitee Panel Assembly 38”h Gravitee Corner Post sheet, for instruction.
- Page 11 © 2022 Order #XXXXX GJOD-1558 Counter Assembly (cont’d) Steps: 1) Wrap SEG Graphic around front and sides of assembled counter. See SEG Graphic Installation sheet for instruction. 2) Connect shelf supports to Velcro, then place shelf on top of supports. 3) Lock counter top to panels [26] and [31].
