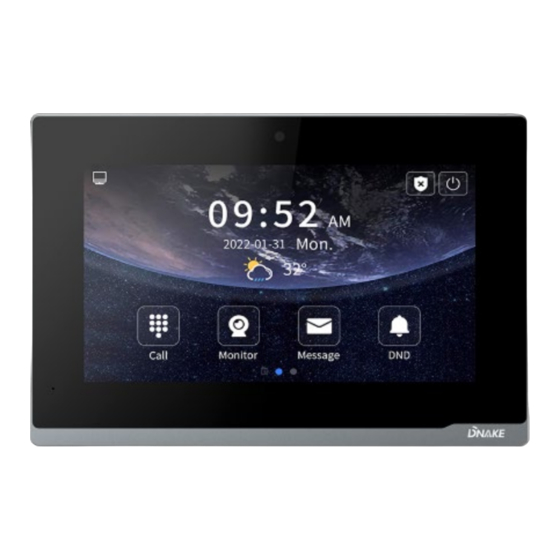

Dnake E416 User Manual

Indoor monitor
Hide thumbs Also See for E416:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
———
DNAKE E416

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E416 and is the answer not in the manual?

Questions and answers

Related Manuals for Dnake E416

Summary of Contents for Dnake E416

  • Page 1 User Manual ——— DNAKE E416...
  • Page 3 REMARK Please follow the user manual for correct installation and testing. If there is any doubt please call our tech-supporting and customer center. Our company applies ourselves to reformation and innovation of our products. No extra notice for any change. The illustration shown here is only for reference. If there is any difference, please take the actual product as the standard.

  • Page 4: Table Of Contents

    CATALOG PRODUCT FEATURE ..........1 TECHNICAL PARAMETER ........1 PACKAGE CONTENT ..........2 OVERVIEW .............. 3 BASIC OPERATION ..........4 DEVICE SETTING ..........11 WEB SETTING ............17 SYSTEM DIAGRAM ..........24 DEVICE WIRING ........... 25 INSTALLATION ............27 TROUBLESHOOTING ........... 29 SAFETY INSTRUCTION ........

  • Page 5: Product Feature

    PRODUCT FEATURE 1. Android 10 System 2. Powered by PoE or power adapter (DC12V/2A) 3. Support SIP 2.0 protocol, easy integration with other SIP devices 4. Compatible with 3rd party application 5. Support monitoring 16 IP cameras TECHNICAL PARAMETER System: Android 10 RAM: 1 GB ROM: 8 GB Front Panel: Plastic...

  • Page 6: Package Content

    PACKAGE CONTENT MODEL: E416 E416 Wiring Cover PM4×20 (2 pcs) Diode (3 pcs) Quick Start Guide Desktop Stand (Optional)

  • Page 7: Overview

    OVERVIEW...

  • Page 8: Basic Operation

    BASIC OPERATION 1. Call Go to Call > Dial and enter Building number + Building + Riser number + Riser + Room number + dial icon to call Indoor Monitor (such as 1 + Building + 1 + Riser + 1111 + Dial button). 2.
  • Page 9 4. DND Click DND icon to enable do not disturb function. No calls can call in. 5. Quad Splitter On the 2 homepage, click Quad Splitter. Click any screen of IPC to make it full screen. Click left or right arrow to check other pages. Up to 16 IPC can be added. 6.
  • Page 10 Or go to Call > Phonebook. Select the name on the phonebook and press dial button to call. 7. QR Code Click QR Code and scan by Smart Life app to add this Indoor Monitor to your phone. Only when the license is filled in Internet-connected Indoor Monitor, QR code will be available.
  • Page 11 8.1. ON/OFF Click Out, Home, or Sleep icon to activate the scene for alarm sensors, the icon on the main interface will light up with a beep sound; OFF: Click OFF to disable scene; Within Activation Time, click the OFF icon and enter password to terminate the alarm sending to Master Station (the default password is 1234);...
  • Page 12 Emergency: once Panic button is triggered, only Master Station will receive alarms secretly; 24 hours standby even if the security is off; (Panic, Pull Cord) 24H: 24 hours standby even if the security is off (Smoke, Gas, Flood); Mode: 3C: for the sensor with 2.2KΩ resistance; Regardless of the connection to NC or NO, the alarm can be triggered normally;...
  • Page 13 New security password of the Device; Confirm: Confirm security password of the Device; 9. Concierge Press the Concierge icon to call Master Station. 10. Elevator Press the Elevator icon to call control elevator (DNAKE Elevator Control Module is needed). 11. Add More Indoor Monitors...
  • Page 14 Keep Building, Riser, Apartment No., Sync the same as other Indoor Monitors, and Device number should be different. The Device number can be from 0 to 9. But you must have one Indoor Monitor’s Device number is 0 and keep it online because 0 here stands for the main one.

  • Page 15: Device Setting

    DEVICE SETTING Connect Indoor Monitor and other devices to a network switch in the same LAN. Go to Settings to configure the device. 1. Display Brightness level: Screen brightness adjustment; Sleep: Screen sleep time (15s, 30s, 1min, 2mins, 5mins, 20mins, 30mins); 2.
  • Page 16 Intercom Vol: Volume of Intercom can be set from 1 to 6; Button: The keytone; Ringtone: The ringing sound; 3. Date & Time Automatic date time: Enable to synchronize computer time; Time Zone: A region that observes a uniform standard time; 12H/24H: The format of time;...
  • Page 17 You need to click search icon to add Door Stations to Indoor Monitor and click tick to save before monitoring. Click funnel icon to pin the selected device to the top. Click pen icon to edit devices. 6. Version Firmware: Firmware version of the device;...
  • Page 18 DHCP: Enable DHCP (Dynamic Host Configuration Protocol) to dynamically distributing network configuration parameters; Configure Static IP address to manually distributing network configuration parameters; Mask: Subnet mask; Gateway: A component that is part of two networks, which use different protocols; DNS: Domain Name Server of the device;...
  • Page 19 Build: Number of the building (Building range: 1-999); Riser: Number of the unit (Unit range: 1-99); Apartment No.: Number of the room; Device: Number of the device (Unit range: 1-9); Sync: A number used to synchronize to other Indoor Monitors; CMS IP: Server address of CMS;...
  • Page 20 12. More > Apps Apps: 3rd party apps can be managed here; 13. More > Reset Reset: Reset to factory settings;...

  • Page 21: Web Setting

    IP address of Indoor Monitor in the web browser search bar and log in with the default account (admin) and password (123456). This is where you can configure the device. To get the IP address, you can search by DNAKE Remote Upgrade Tool installed in the same LAN with the devices. 1. Main When you first log in to the web interface, you can find basic information displayed in this dashboard.
  • Page 22 DHCP: Enable DHCP (Dynamic Host Configuration Protocol) to dynamically distribute network configuration parameters; Configure Static IP address to manually distribute network configuration parameters; Mask: Subnet mask; Gateway: A component that is part of two networks, which use different protocols; DNS: Domain Name Server of the device;...
  • Page 23 Build: Number of the building (Building range: 1-999); Unit: Number of the unit (Unit range: 1-99); Room: Number of the room; Device: Number of the device (Unit range: 1-9); Sync: A number used to synchronize to other Indoor Monitors; Server: Server address of CMS;...
  • Page 24 SIP enable: Enable to use SIP; Proxy: SIP Server Host of SIP; the default port is 5060; Realm: Realm of SIP; the default port is 5060; Outbound: Outbound Proxy of SIP; the default port is 5060; Username: Username of SIP; Password: Password of SIP;...
  • Page 25 Quick Call & URL: URL of the concierge button; RSTP Feed: The video source for Indoor Monitor when call another Indoor Monitor. Local Relay Delay: The length of unlock delay time (1-9s); Local Relay Type: Type of local relay (Open Door is for lock/Chime Bell is for doorbell);...
  • Page 26 Reboot: Reboot the device; 8. License The license column will be hidden in the near future. 9. System The system column is designed for packet capture and logs capture.
  • Page 27 Tcpdump: Capturing packets can help developers reproduce positioning problems; Logcat: Device logs; 10. Logout The logout column is designed for logout.

  • Page 28: System Diagram

    SYSTEM DIAGRAM...

  • Page 29: Device Wiring

    DEVICE WIRING 1. Network (PoE) Standard RJ45 interface used to connect to the Master Station, Indoor Monitor and/or other network equipment via a network switch. PSE shall comply with IEEE 802.3at (PoE+) and its output power not less than 30W and its output voltage not be less than 50V. 2.
  • Page 30 Warning! 1. When connecting to an inductive load device such as a relay or electromagnetic lock, you are recommended to use a diode 1A/400V (included in the accessories) in anti- parallel with the load device to absorb inductive load voltage peaks.

  • Page 31: Installation

    INSTALLATION Surface Mounting-86 Mounting Box Product size: 195 × 130 × 14.5 mm...
  • Page 32 Desktop Mounting Product size: 195 × 130 × 14.5 mm Tips: The camera should be 1450~1550mm above the ground. The camera at this height can capture human face perfectly.

  • Page 33: Troubleshooting

    TROUBLESHOOTING The Indoor Monitor cannot start up or power off automatically. Check whether it has power-failure, and power it on again  The Indoor Monitor display screen is too dim. Check whether the brightness and contrast settings of screen are correct. ...

  • Page 34: Safety Instruction

    SAFETY INSTRUCTION In order to protect you and others from harm or your device from damage, please read the following information before using the device. Do not install the device in the following places:  Do not install the device in high-temperature and moist environment or the area close to ...
  • Page 35 V1.2 EASY SMART INTERCOM SOLUTIONS...
