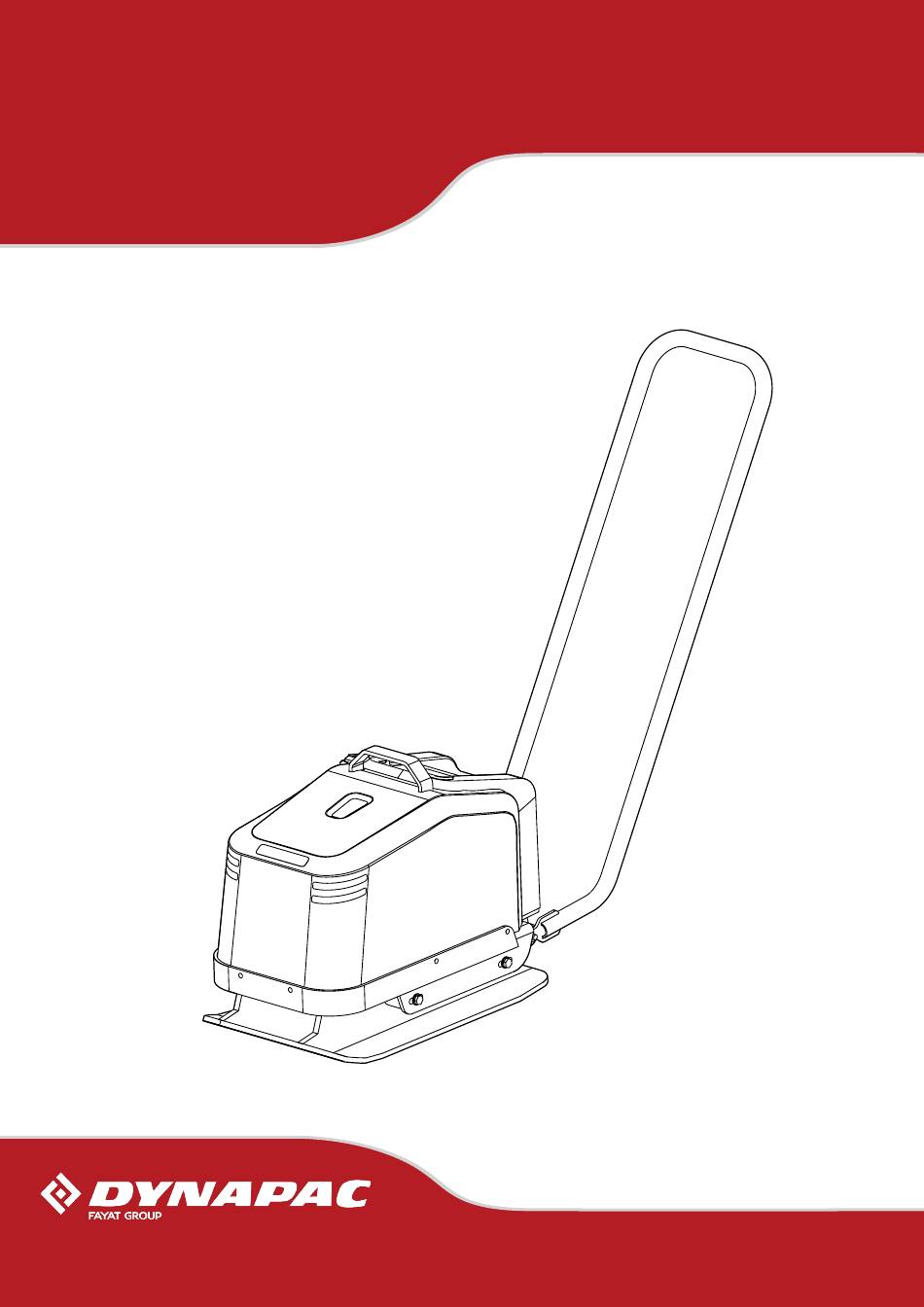

- Page 1 USER MANUAL IN ORIGINAL DFP5X e Doc: 4812085313-GB 2246...
-
Page 2: Use / Introduction
INTRODUCTION DYNAPAC DFP5X e Thank you for purchasing a DYNAPAC DFP5X e. is used to pack ballast under foundations, on garage This manual contains information on how to use it; please approaches and on pavements, etc. The machine is also... -
Page 3: Table Of Contents
DFP5X e CONTENTS USE / INTRODUCTION ..........STANDARDS ............... SAFETY INSTRUCTIONS ..........4; 5; 6 SIGNS .................. TECHNICAL DATA ............FUNCTION ............... TECHNICAL DESCRIPTION ........DAILY CHECKS ........................V-BELT DRIVE STARTING ..............STOPPING ..............OPERATION ..............DIMENSIONS............CLEANING STORAGE and DISPOSAL............. -
Page 4: Standards
DFP5X e STANDARDS SAFETY INSTRUCTIONS Noise This manual and subcontractors manuals may be provided Measurement in accordance with the standard with important safety messages. Please read these messages EN 500-4 Rev. 1:1998, Annex C: carefully. A safety message alerts you to potential hazards Measurement uncertainty ±... - Page 5 DFP5X e • When the battery pack is not in use, keep it away from Battery charger safety other metal objects, like paper clips, coins, keys, nails, 1. Before using the battery charger, read all instructions and screws or other small metal objects, that can make a cautionary markings on battery charger, battery pack and connection from one terminal to another.
- Page 6 DFP5X e • Do not charge if the electric outlet is loose. • Do not charge if the battery charger, AC cable, or the electric outlet is damaged or deformed. If the AC cable is damaged, contact your servicing dealer for replacement. •...
-
Page 7: Signs
DFP5X e SIGNS Warning signs Before use, carefully read the manual and its safety instruc- tions so that you can handle the machine safely. Ensure that the manual is always accessible. 1. Manufacturer 2. Place, country of manufacture. 3. CE mark. 4. -
Page 8: Technical Description
DFP5X e TECHNICAL DESCRIPTION 1. Operating handle 2. Protective cover 3. Electric engine 4. Rubber dampers 5. Vibrating element 6. Bottom plate 7. Motor plate 8. V-Belt 9. Pulley 10. Battery 11. Yoke 12. Start/Stop button 13. Indicator light for error codes 14. -
Page 9: Daily Checks
DFP5X e DAILY SUPERVISION Precautions, Chargers The sparking phenomenon is normal when connected to the battery due to high current. Charging 1. Check if your local area network is consistent with the The charger is designed to charge only LITHIUM batteries. charger input voltage of 230V. -
Page 10: V-Belt Drive
DFP5X e V-belt drive START Check the tension and condition of the tyre regularly. Start the machine by pressing the start button in position 1. Replace damaged V-belt for new type XPZ662 for DFP5X e. NOTE: When replacing a V-belt, remove the protective cover NOTE: The vibrations start straight away. -
Page 11: Dimensions
DFP5X e DIMENSIONS in mm Dimensions 1050 www.dynapac.com... -
Page 12: Cleaning Storage And Disposal
DFP5X e CLEANING RECYCLING Instruction Uttjänta batterier lämnas alltid till återvinning. Referral of damage to the components! Se till att alltid anlita en auktoriserad • In event of damage to the battery or charger: återvinningsföretag. contact the service partner Instruction Referral of damage to the components! •... -
Page 13: Transportation
DFP5X e TRANSPORT Lift with crane Attach a sling to the machine's lifting eye. Disassembly of handle It is easy to remove the handle without tools, and the luggage compartment of a regular passenger car is sufficient for transport. Remove the handle by tipping it forward and pulling apart the booms so that the fasteners release. -
Page 14: Battery
DFP5X e BATTERY Is certified according to: UN 38.3 Rev. 6 IEC 62619 NOTES www.dynapac.com... - Page 15 DFP5X e NOTES www.dynapac.com...
-
Page 16: Declaration Of Conformity
DFP5X e Declaration of conformity Manufacturer Dynapac GmbH Ammerländer Str. 93 26203 Wardenburg - Germany 1. Category: Plate compactor 2. Type: DFP5X e 3. Motor efficiency: DFP5X e 1.7kW The product complies with the following directives: 2006/42/EC 2000/14 /EC 2004/108/EC EN 500-1 EN 500-4 Technical documentation available from:... - Page 17 www.dynapac.com...
