Summary of Contents for Schaller M30

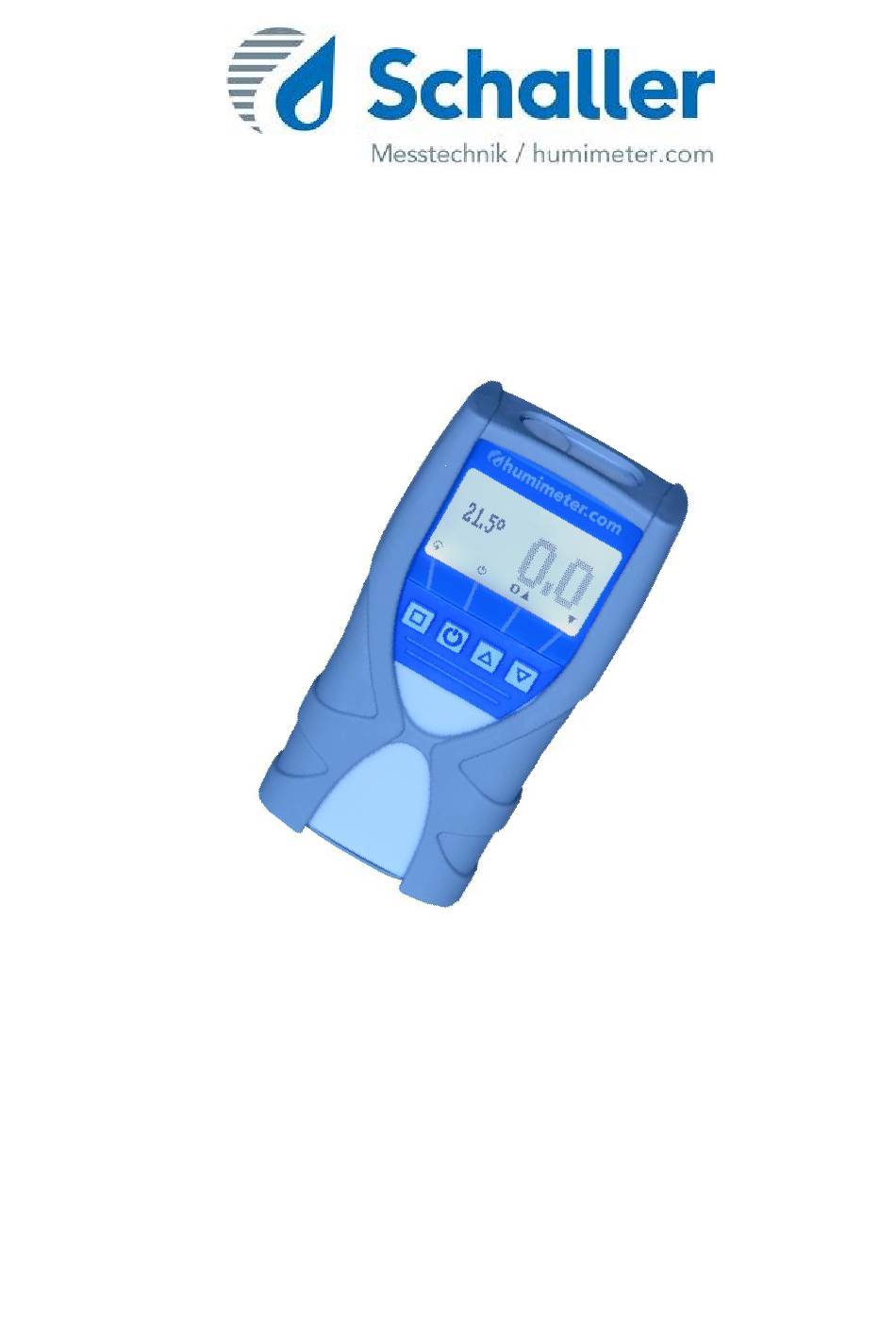

- Page 1 User manual humimeter M30 universal material moisture meter version 1.1_en © Schaller GmbH 2019...
- Page 2 ➢ There are 10 free calibration curves available. These calibration curves can be used for measuring special products. ➢ First of all the calibration curves have to be created! ➢ On request Schaller GmbH can create customer-specific calibration curves for your products. version 1.1...
-

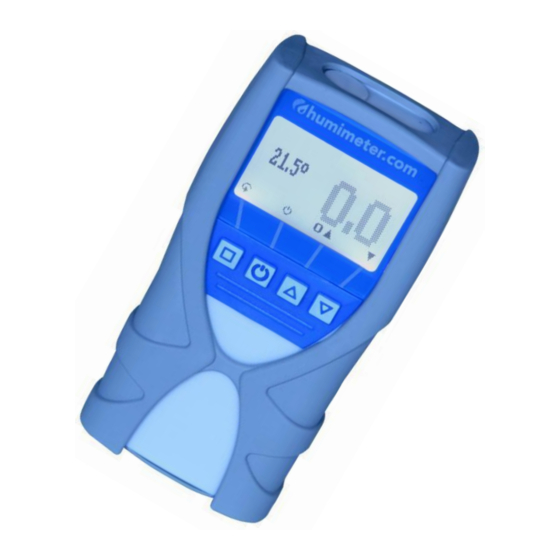

Page 3: Design Of The Device
Design of the device name of calibration curve measuring value temperature empty 1 measuring value water content rolling menu resp. hold button ON-OFF button selection of calibration curve rubber protection cover batteries slot (flipside) Version 1.1... -
Page 4: Menu Level Overview
Keypad symbols Menu level overview Measuring window: Rolling Menu Type selection menu Power ON / OFF Switch upper Next calibration curve Switch lower Previous calibration curve Power off Save Hold Store menu Autolog Watch saved data Watch last log Enter supplier´s Save new value data Power off... -
Page 5: Changing The Batteries
26.0°C. Switch on the instrument and select the calibration curve „reference“ using the arrow keys. Hold the humimeter M30 in one hand right up in the air. Please make sure that there is no material or anything similar in front of the measuring plate. - Page 6 (see picture), press the button to confirm. Hold the humimeter M30 in one hand up in the air and make sure that there is no material in front of the measuring field (black plate). Now press the second button ( ) with one finger.
- Page 7 • It is obligatory that the measuring instrument rests on an even measuring area without any air space! • The measuring depth of your humimeter M30 is 30 mm • Please ensure that during the measurement there is NO metal or...
-
Page 8: Technical Data
147 x 75 x 30 mm Weight 260g (incl. batteries) Protection class IP 40 Scope of supply humimeter M30, 4 pieces 1.5Volt AA Alkaline batteries, rubber protection cover, user manual Options data interface module incl. software and cable, mobile printer (only with option 1) version 1.1...
