Summary of Contents for jbc CD-SC

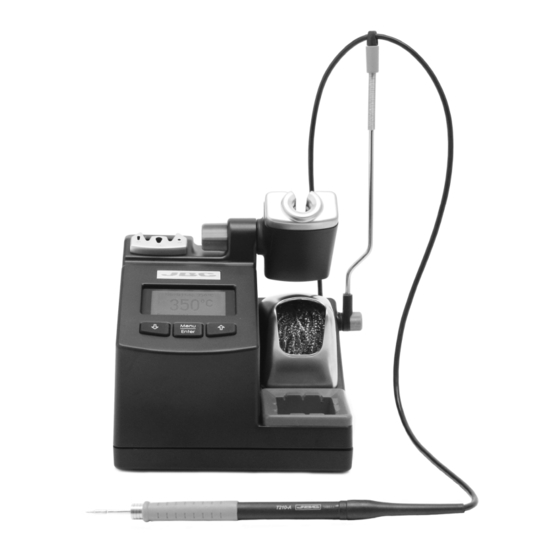

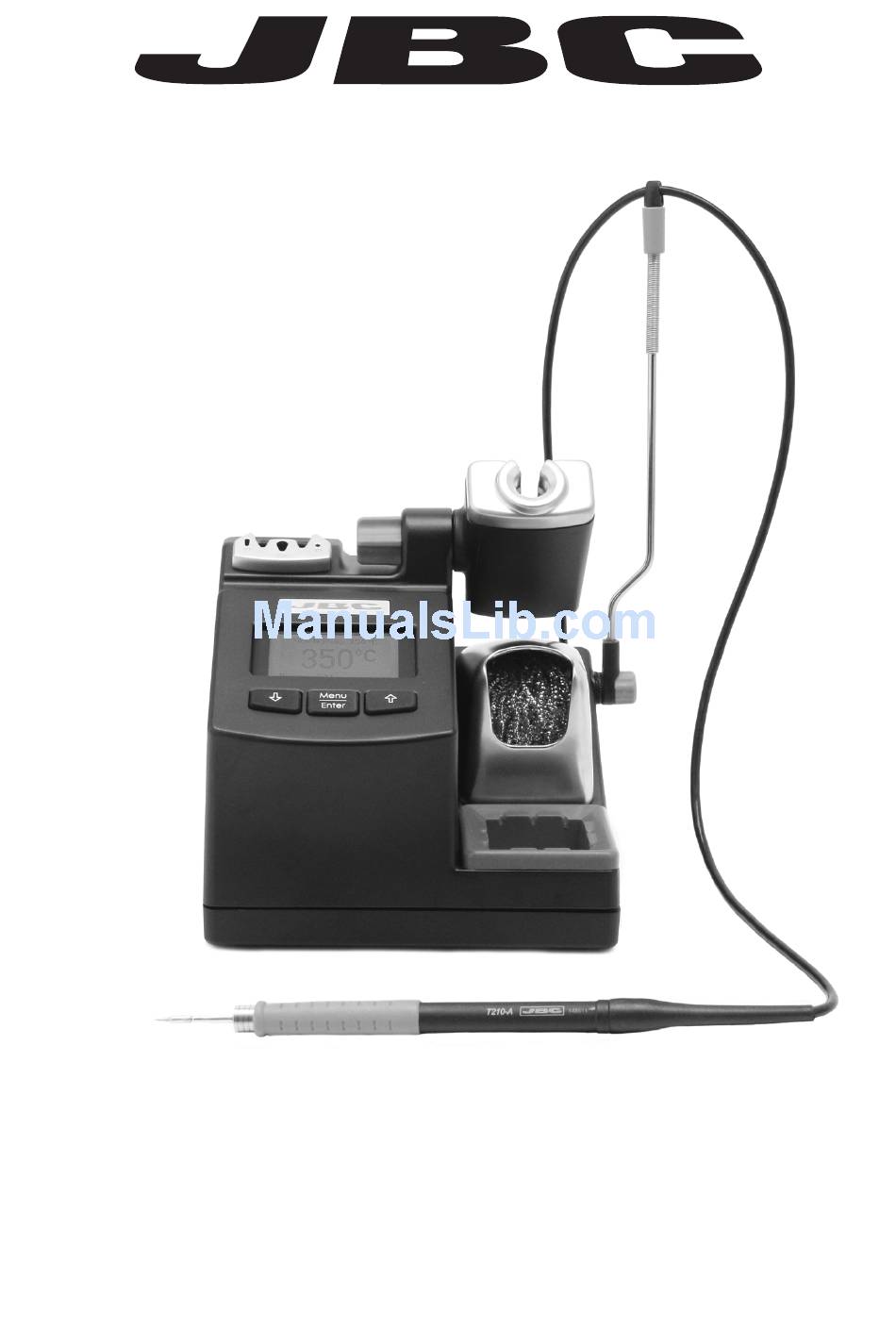

- Page 1 Precision Soldering Station Ref. CD-SC...
- Page 2 CD-SC / PRECISION SOLDERING STATION CD-2C / CD-1C / CD-9C T210-A Control Unit Precision Handpiece C210001 C210008 Cartridges CL6210 Brass Wool S0354 Sponge MANUAL POWER CORD w w w.jbctools.com Precision Soldering Station Ref. CD-SC...
-
Page 3: Installation
INSTALLATION CONTROL UNIT T210-A Precision Handpiece Main switch Fuse Power Cord Socket USB-B connector to PC: Equipotential connection - Update station software - Create graphs of the soldering process Cable collector - Manage and monitor parameters via PC PART NAMES Intelligent Heat Management Quick Tip Changer Process Control... -
Page 4: Adjustable Stand
CD-SC / PRECISION SOLDERING STATION ADJUSTABLE STAND The tool stand is easily adjustable. Loosen the tightening knob to adjust the position. CABLE COLLECTOR Loosen the tightening knob to adjust the Slide the green piece down to place the wire. position of the cable collector. -
Page 5: Cleaning Options
CLEANING OPTIONS Full set of clean option: sponge, metal wool and brush S0331 Sponge S0354 Sponge The smoothest cleaning method. The sponge has to be kept wet (not soaked) using distilled water. CL6205 Inox Wool CL6220 Brushes Provides a deeper cleaning on the tip. More agressive on the tip than the wool. - Page 6 CD-SC / PRECISION SOLDERING STATION QUICK TIP CHANGER Place the handpiece in the extractor and Place the handpiece on top of the new remove the cartridge. cartridge, press it slightly down and remove the handpiece from the extractor. Alignment Press the cartridge into the opening A, B or C: Important A.
- Page 7 HANDPIECE T210-A Precision Handpiece These handpieces are perfect For precision applications with medium power requirements. Use C210 cartridge range ACCESSORIES F3450 Fume Extractor (not included) Easily clips onto the handpiece and can be quickly removed for easy maintenance. CONNECTABLE HANDPIECES T210-PA Precision Blue Handpiece The blue grip allows the user to differentiate the tool for leaded jobs from the lead-free ones.
-
Page 8: Control Screen
CD-SC / PRECISION SOLDERING STATION CONTROL SCREEN Selected temp. 3 5 0 Tip temperature P o w e r 1 0 % % Instant power supplied to the tool Decrease & Increase & move up move down Access Menu &... -
Page 9: Heat Management
HEAT MANAGEMENT JBC stations intelligently manage the tool temperature and it helps to extend the tip life: Expected life (hours)* Temp (ºC) Sleep Working Temp Temp Work mode: Lift tool from the stand and the tool tip heats up to the selected temperature. -
Page 10: Maintenance
MAINTENANCE Before carrying out maintenance or storage, always allow the equipment to cool. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Maintenance shall not be carried out by children unless supervised. - Page 11 SAFETY It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
-
Page 12: Technical Specifications
- Size: 150 x 175 x 145 mm - Temperature selection from 90°C (190°F) to 450°C (840°F) (±5%). - Output Peak Power CD-SC: 40W. - Safety transformer, mains separator and double isolation. - CD-2C 230V 50/60Hz. Input fuse: 1A. Output: 23,5V.
