Summary of Contents for Titan Fitness 401136

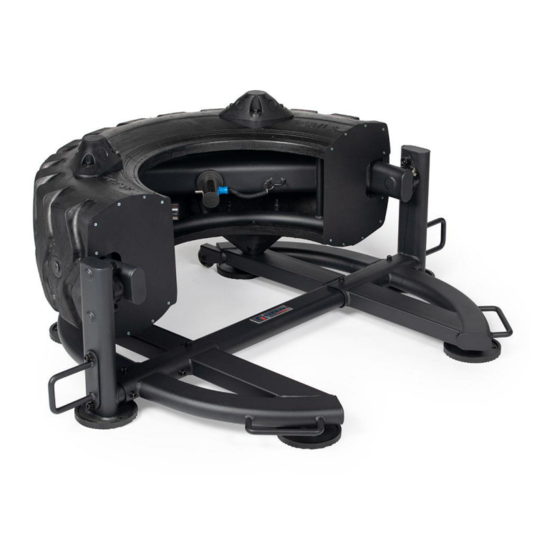

- Page 1 INDOOR TIRE FLIPPING MACHINE STTRM 401136 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 PARTS DIAGRAM / EXPLODED VIEW...
- Page 3 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION UPRIGHT FRAME LEFT BASE FRAME RIGHT BASE FRAME TURNOVER FRAME BATTLE ROPE FIXING PLATE COVER PLATE 390*306.7*3 RUBBER BUFFER 230*136*98 TIRE 15.5-25 E3/L3 A SHORT PIN ASSEMBLY (10) BIG WASHER Ф60*Ф22*3 (11) FOOT PAD Ф166*17 (12) WHEEL Ф70*23.4 (13)
- Page 4 ASSEMBLY INSTRUCTIONS STEP 1 Assemble Upright Frame (1), Left Base Frame (2) and Right Base Frame (3) using Flat Washer Φ11* Φ20*2 (19), Hex Bolt M10*75 (26), Hex Bolt M10*120 (27) and Nut M10 (30) .
- Page 5 ASSEMBLY INSTRUCTIONS STEP 2 Fix Battle Rope Fixing Plate (5) to the Upright Frame (1) using Flat Washer Φ11*Φ20*2 (19), Spring Washer Φ10 (21) and Hex Bolt M10*20 (25). PLEASE TIGHTEN ALL THE BOLTS AND NUTS.
- Page 6 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 7 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2022 Titan Brands...
