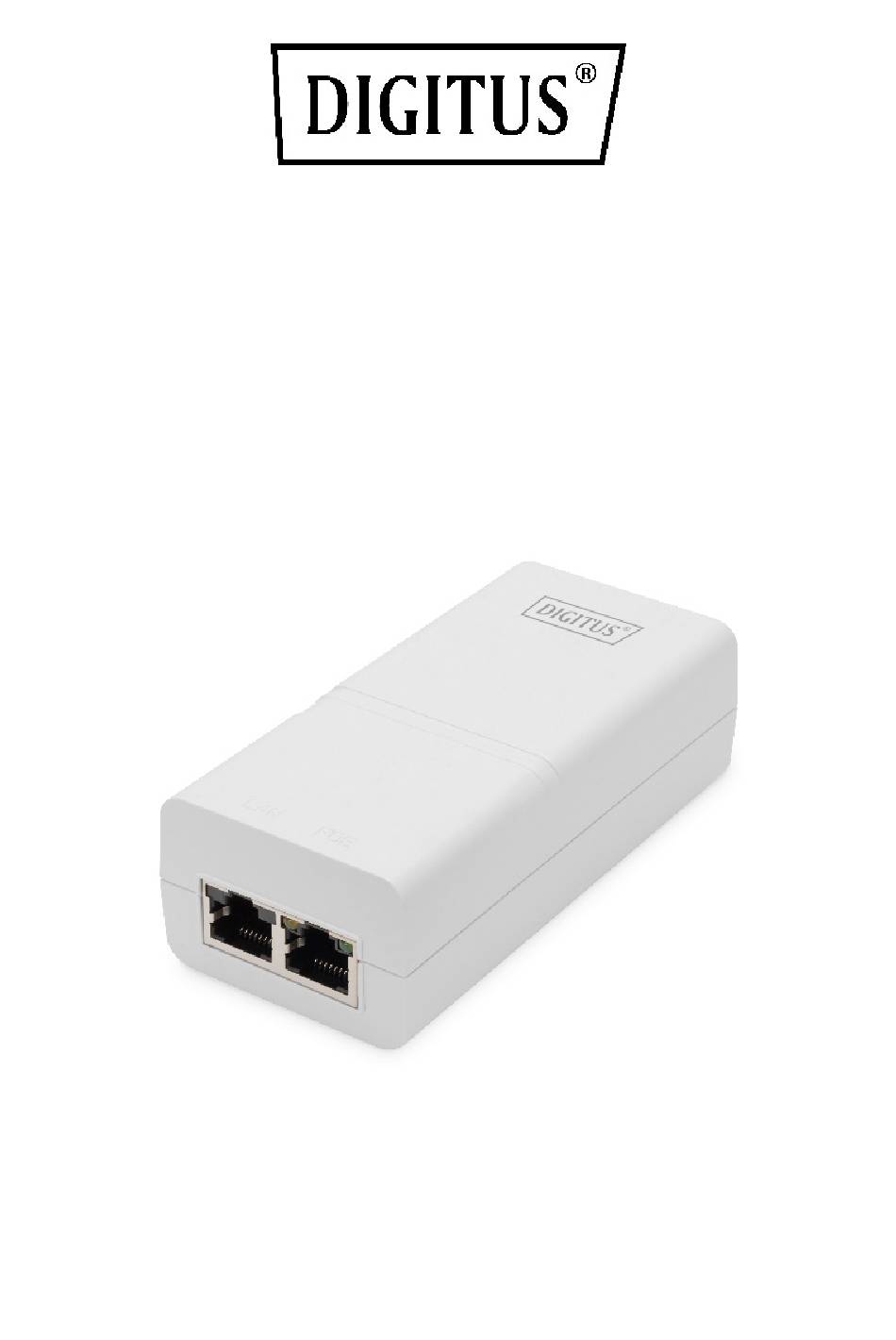

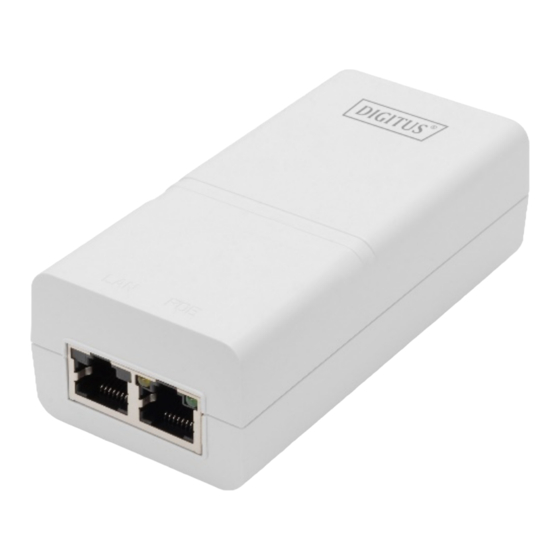

- Page 1 GIGABIT ACTIVE 802.3at PoE MIDSPAN Quick Installation Guide DN-95132...
- Page 2 Introduction DN-95132 is an indoor rated active PoE midspan Injector specially designed for complex backhaul and networking applications. It provides 52Vdc, 0.58A power for remote PDs over 2 pairs output. It supports both 10/100 Base-T and Gigabit device. It works for 30W PoE PDs, such as wireless...
- Page 3 • Each output port has output current limited, short-circuit protection, complete Powered Device (PD) detection and classification • The Injector can be used independent of operating system Package Contents • DN-95132 PoE Injector • Power Cord x 1 • Quick Installation Guide x 1...
- Page 4 Technical Data • IEEE802.3 10Base-T Ethernet • IEEE802.3u 100Base-Tx Fast Ethernet • IEEE802.3ab 1000Base-T Gigabit Ethernet • Full compliant with IEEE802.3af/at PoE standard • Input :100-240Vac 1.0A 50/60Hz • Output: 52Vdc 580mA • Power Pins: 4/5(+), 7/8(-) • Data Speed: 10/100/1000Mbps •...
- Page 5 Product Description 1. LAN: Data Input Port 4. PoE Load Indicator 2. Power Indicator 5. AC Power Input 3. PoE: Data & Power Output Port...
- Page 6 Product Working Diagram 1. Wireless AP a. Data and power cable 2. IPC b. 100-240Vac power cable 3. 100-240Vac Power c. Data cable 4. Switch 5. DN-95132...
- Page 7 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
