- Page 1 10 Gigabit Ethernet PoE+ Injector, 802.3at, 30 W User Manual DN-95108...
-
Page 2: Table Of Contents
• Quick reference guide 1. Introduction The PoE+ injector from DIGITUS® offers a 30 watt PoE port as a midspan solution. Compact, cost-effective and fully IEEE802.3at-compliant. With support for 10 Gbps network connections, the PoE injector can also be used in environments where the highest possible data transfer speed is essential. -
Page 3: Features
2. Features Here are the features of 30W injector: • Power over Ethernet Injector for 10/100/1000/10G BaseT • Full IEEE802.3af/at compliant • Automatically detects and protects PoE equipment from being damaged by incorrect installation • Internal AC/DC converter-no need for external power brick •... -
Page 4: Hardware Description

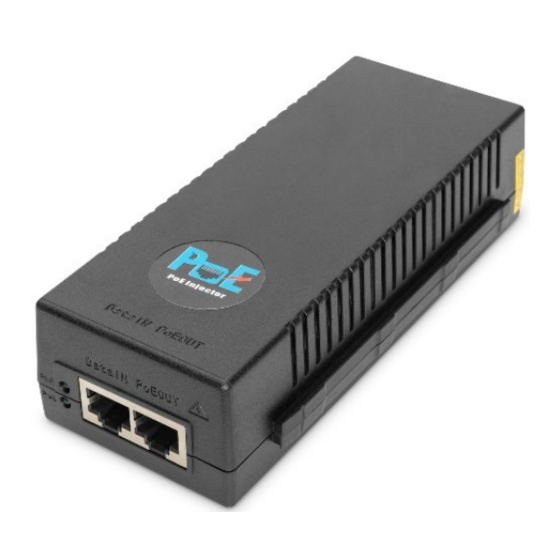

3. Hardware Description 1. AC Power Input Connector: This connector connects the AC power source to the PoE Injector. 2. Data IN: This port is an RJ-45 Ethernet connector where data is received and transmitted through the PoE Injector. 3. PoE OUT: This port is an RJ-45 Ethernet connector where data is received and transmitted through the PoE Injector and provides PoE power along with the Ethernet data to a PoE device. -
Page 5: Installation
4. Installation Before placing the Unit: • Do not to cover PoE Injector or block the airflow to the PoE with any foreign objects. Keep the PoE Injector away from excessive heat and humidity and free from vibration and dust. •... - Page 6 The PD does not operate: • Verify that the PoE Injector detects a PD. • Verify that the PD is designed for PoE operation. • Verify that you are using a standard Category 5/5e/6, straight-wired cable, with four pairs. • If an external power splitter is in use, replace it with a known-good splitter.
-
Page 7: Specifications
6. Specifications Description 1 x RJ-45 Connector for Data Interfaces 1 x RJ-45 Connector for PoE out +Data Indicators Power, PoE Standard IEEE802.3af, IEEE802.3at Power Method 100-240VAC, 50/60Hz Output Voltage 52VDC PoE Budget Output PoE Pin Assignment V+(RJ45 Pin3,6), V-(RJ45 Pin1,2) Dimensions 145.5 x 61.5 x 40 mm Weight...
