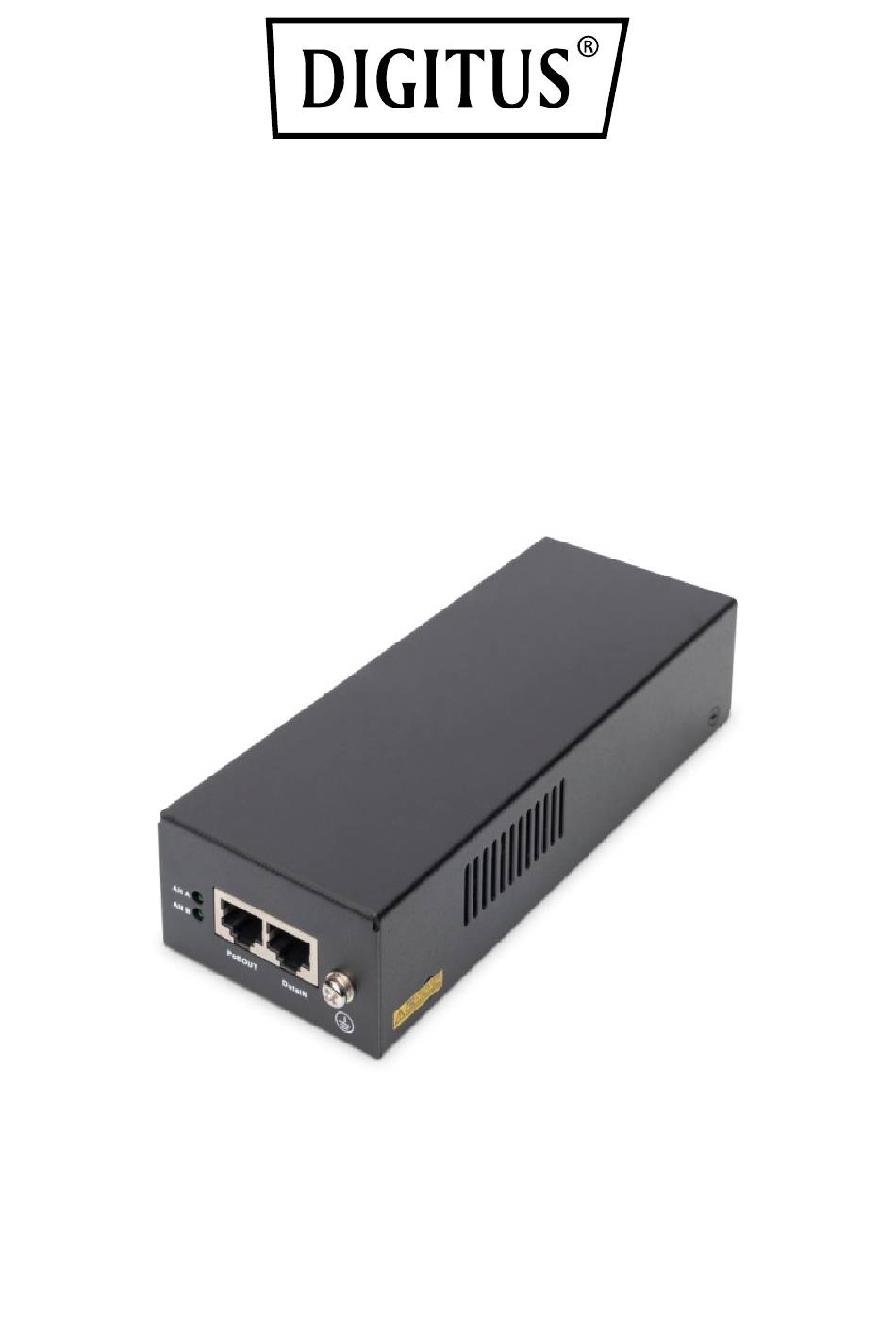

- Page 1 Gigabit Ethernet PoE++ Injector, 802.3bt, 85 W User Manual DN-95109...
- Page 2 • Quick reference guide 1. Introduction The 802.3bt injector from DIGITUS® offers an 85 watt PoE port as a midspan solution. Compact, cost-effective and fully IEEE802.3bt- compliant. The simple solution for remote power supply of wireless access points, IP security camera, VoIP phones, thin clients and other installations with PoE functionality.
- Page 3 2. Features Here are the features of 85W injector: Power over Ethernet Injector for 10/100/1000BaseT • Full IEEE802.3at /bt compliant • Automatically detects and protects PoE equipment from being • damaged by incorrect installation Internal AC/DC converter. No need for external power brick •...
- Page 4 3. Hardware Description 1. AC Power Input Connector: This connector connects the AC power source to the PoE Injector. 2. Data IN: This port is an RJ-45 Ethernet connector where data is received and transmitted through the PoE Injector. 3. PoE OUT: This port is an RJ-45 Ethernet connector where data is received and transmitted through the PoE Injector and provides PoE power along with the Ethernet data to a PoE device.
- Page 5 4. Installation Before placing the Unit: Do not to cover PoE Injector or block the airflow to the PoE with any • foreign objects. Keep the PoE Injector away from excessive heat and humidity and free from vibration and dust. •...
- Page 6 The PD does not operate: Verify that the PoE Injector detects a PD. • Verify that the PD is designed for PoE operation. • • Verify that you are using a standard Category 5/5e/6, straight-wired cable, with four pairs. If an external power splitter is in use, •...
- Page 7 6. Specifications Description 1 x RJ-45 Connector for Data Interfaces 1 x RJ-45 Connector for PoE out + Data Indicators PoE: Alt A, Alt B Standard IEEE802.3af, IEEE802.3at, IEEE802.3bt Power Method 100-240VAC, 50/60Hz Output Voltage 56VDC Power Supply PoE Budget Alternative A: V+ (RJ45 Pin3,6), V- (RJ45 Pin 1,2) Output PoE Pin Assignment...
