Quick Installation Guide

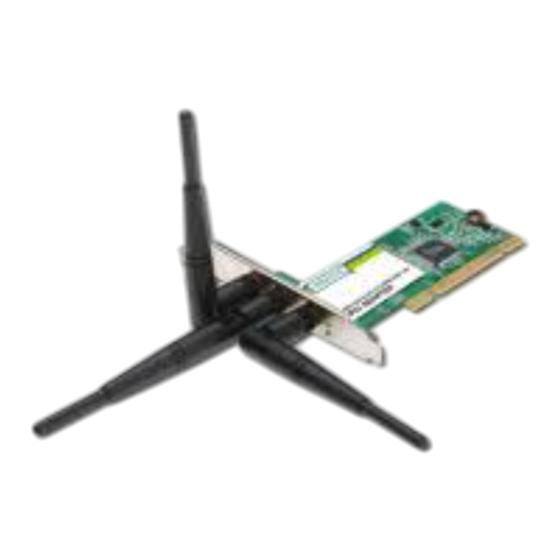

DN-7056 – WIRELESS LAN PCI ADAPTER
Package Contents ........................................................................ Page 1
Network Card Installation ...........................................................
Page 2
Connect to Wireless Access Point.............................................. Page 4
Package Contents
Before you starting to use this wireless network card, please check if there' s anything
missing in the package, and contact your dealer of purchase to claim for missing items:
PCI Wireless Network Card .... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .... ... ... ... ..... . 1
Quick installation guide (1 pcs) ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ..... . 2
User manual / device driver CDROM (1 pcs) ... ... ... ... ... .... ... ... ... ... ... ... ... ..... . 3
Antenna (3 pcs) ... ... ... ... ... ... ... ... ... ... ... ..... ... ... ... ... .... ... ... ... ... ... ... ... ... ..... . 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus DN-7056
Summary of Contents for Digitus DN-7056
- Page 1 Quick Installation Guide DN-7056 – WIRELESS LAN PCI ADAPTER Package Contents ................ Page 1 Network Card Installation ............Page 2 Connect to Wireless Access Point..........Page 4 Package Contents Before you starting to use this wireless network card, please check if there’ s anything missing in the package, and contact your dealer of purchase to claim for missing items: PCI Wireless Network Card .…...
- Page 2 Network Card Installation Please follow the following instructions to install your new PCI wireless network card: 1. Turn off your computer, and remove the case as required so you can see PCI expansion slots (PCI slots are usually colored as white), and then insert the PCI wireless network card into any available the PCI slot.
- Page 3 3. Switch the computer on now, and log in the Windows system. The following message will appear on your computer, click ‘ Don’ t show this message again for this device’ . 4. Insert device driver CDOM into the CD/DVD ROM drive of your computer, and execute ‘...
- Page 4 6. Please select ‘ Optimize for WiFi mode’ for wireless compatibility, then click ‘ Next>’ . If you want to enhance wireless performance, please select ‘ Optimize for performance mode’ . However, wireless compatibility is not guaranteed in this mode. Please refer to user manual for details of performance mode.
- Page 5 Connect to Wireless Access Point Using Configuration Utility to Connect to Wireless Access Point 1. After installation is complete, wireless configuration utility will be shown as an icon at the lower-right corner of your windows desktop. Please click the icon by right mouse key, and select ‘...
- Page 6 4. If the wireless access point uses encryption, you have to input WEP passphrase or WPA preshared key. Please ask the owner of the wireless access point you want to connect, and input the correct passphrase / preshared key here, then click ‘ OK’ . If the value you inputted here is wrong, you will not be able to connect to wireless access point.
