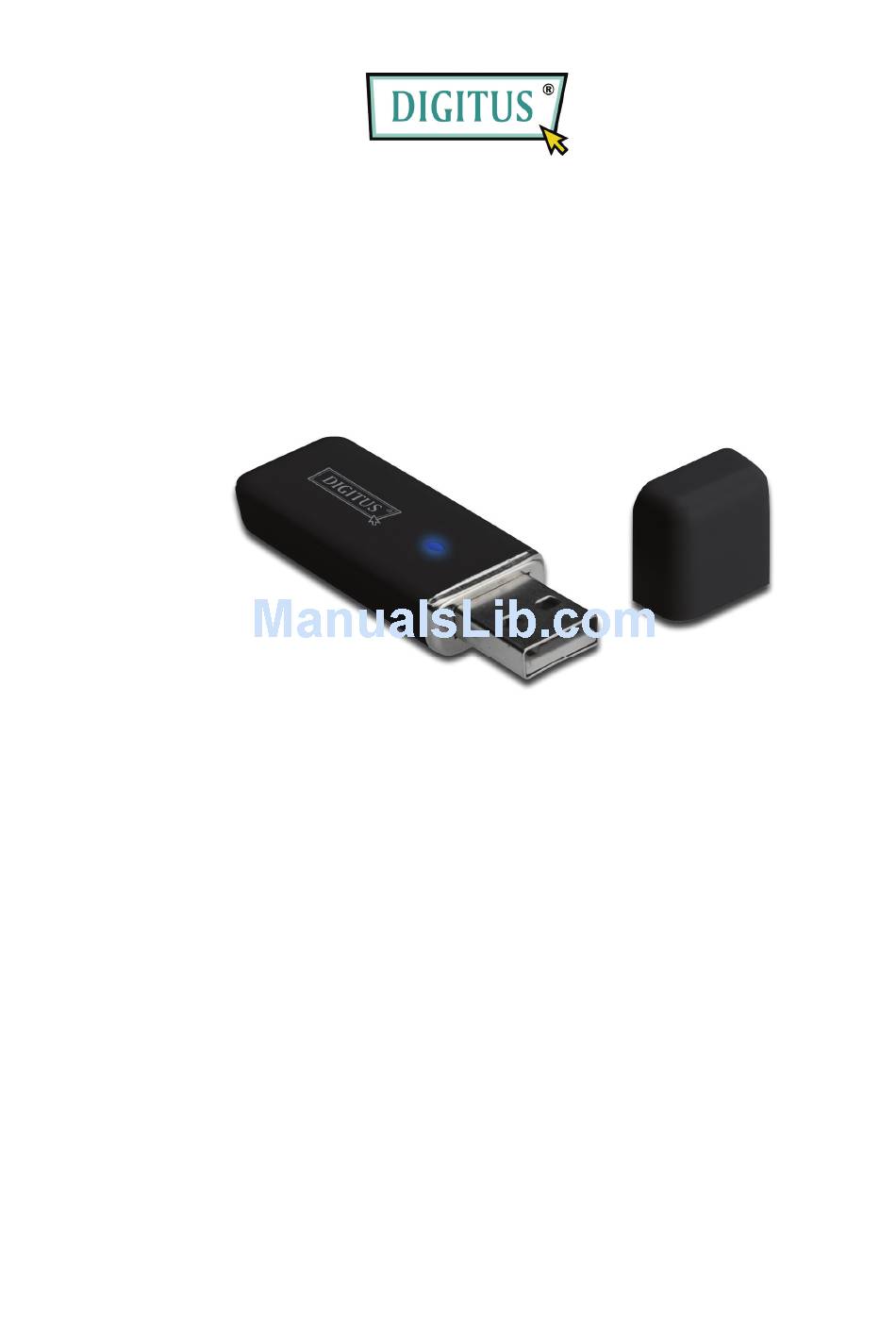

- Page 1 Wireless 802.11b/g/n USB Adapter Quick Installation Guide DN-7045 1 / 12...
-
Page 2: Driver Installation
1. Driver Installation Please follow the following instructions to install your new wireless USB Adapter: Insert the USB wireless network card into an empty USB 2.0 port of your computer when computer is switched on. Never use force to insert the card, if you feel it’s stuck, flip the card over and try again. - Page 3 Click ‘Install Driver’ to start the installation procedure Please select the language you wish to use, then click ‘Next’. Installation descriptions shown. Click ‘Next’ to 3 / 12...
- Page 4 continue Once the installation is finished the computer will be asked to reboot. you can click ‘Finish’ and reboot the computer to finish the installation of driver files. 4 / 12...
-
Page 5: Connect To Wireless Access Point
2. Connect to Wireless Access Point To use wireless network, you have to connect to a wireless access point first. You can either use Client utility (comes with network card driver), or Windows Zero Config utility (comes with Windows operating system). 2-1 Using Client Utility Please follow the following instructions to use Client configuration utility to connect to wireless access point. - Page 6 If the wireless access point you wish to connect does not appear here, you can click ‘Refresh’ button to scan for wireless access points again; if the wireless access point you’re looking for still not appear, try to move the computer closer. When the access point you’re looking for is on the list, left-click it and then double click it or click ‘Add to Profile’.
- Page 7 2-1-5. Network card will attempt to connect to access point now, this may require few seconds to minutes, please be patient. When the ‘Status’ become ‘Associated’ , your computer is connected to access point you selected. Click ‘Close’ to close configuration menu. 7 / 12...
- Page 8 NOTE: If you connected to an access point but the connection has been dropped soon, please check security settings and re-check password spelling. 2-2 Using Windows Zero Configuration Windows XP and Vista has a built-in wireless network configuration utility, called as ‘Windows Zero Configuration’ (WZC).
- Page 9 Zero. NOTE: To return to use Client utility, uncheck ‘Windows Zero Config’ box. 2-2-4. Click ‘Start’ button (should be located at the bottom-left corner of windows desktop), click ‘Control Panel’, then click ‘Network and Internet Connections’ in Control Panel. 2-2-5. Double click ‘Network Connections’. 9 / 12...
- Page 10 2-2-6. Right-click ‘Wireless Network Connection’ (it may have a number as suffix if you have more than one wireless network card, please make sure you right-click the Wireless LAN 802.11n USB Network Adapter), then select ‘View Available Wireless Networks’. 2-2-7. All wireless access points in proximity will be displayed here. If the access point you want to use is not displayed here, please try to move your computer closer to the access point, or you can click ‘Refresh network list’...
- Page 11 2-2-8. If the access point is protected by encryption, you have to input its security key or passphrase here. It must match the encryption setting on the access point. If the access point you selected does not use encryption, you’ll not be prompted for security key or passphrase.
- Page 12 12 / 12...
