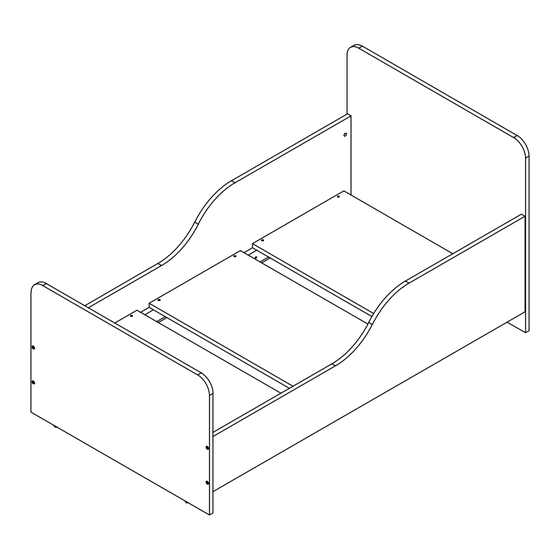

- Page 1 Version 1.1 Cabin Toddler Bed fantasticfurniture.com.au...
- Page 2 We're thrilled you've chosen Fantastic Furniture to help create a home you'll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...
-
Page 3: Assembly Checklist
Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
What you need to assemble the product Head Board (P1) Side Panel L (P4) Centre Support Side Panel R (P3) Other tools you need (P5) Phillips head screwdriver, soft headed mallet. Parts list Box 1: Foot Board Head Board (P1); (P2) Foot Board (P2);... - Page 5 Step 1 You will need 8 x Barrel Nuts 2 x Cam Nuts M6 (H1) (H5) 2 x Cam Bolts Phillips Head (H6) Screwdriver Insert 2 x cam nuts (H5) into panel (P3). Insert 8 x barrel nuts (H1) into panels (P4) & (P5). Screw 2 x cam bolts (H6) into panels (P4) &...
- Page 6 Step 3 You will need Phillips Head Screwdriver This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
-
Page 7: Job Complete
Slat Position Step 5 You will need Gap 30mm ± First Slat 12 x Screws Phillips Head Gap 51mm± (H4) Second Slat Screwdriver Gap 51mm± Third Slat Gap 30mm± Secure panels (P6) with 12 x screws by using a philips head screwdriver. Please note the gap dimensions in the above diagram.
