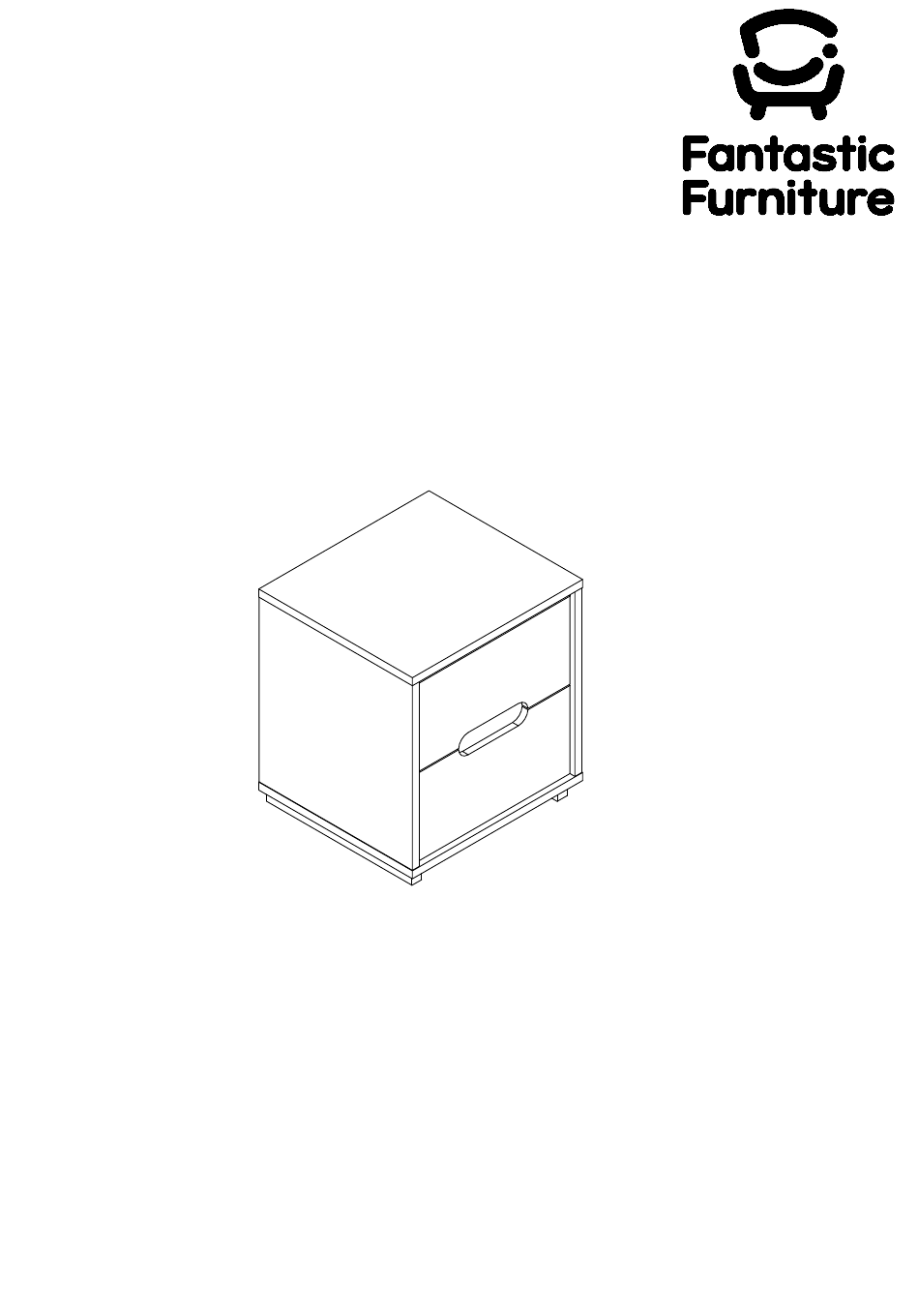

- Page 1 Version 1.2 Cabin Bedside 2 Drawer www.fantasticfurniture.com.au...
- Page 2 www.fantasticfurniture.com.au Page 2...
-
Page 3: Assembly Checklist
Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled. - Page 4 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture www.fantasticfurniture.com.au Page 3...
-
Page 5: What You Need
What you need to assemble the product DO NOT USE Other tools you need: Flat head screwdriver, Phillips head screwdriver, Mallet (soft headed); Parts list Box 1: 2 x Long Bottom Rails(P1); 2 x Short Bottom Rails (P2); 1 x Base Panel (P3) ； 1 x Left Side Panels (P4) ；... - Page 6 Step 1 You will need 8 x Bolts (H4) Phillips head screwdriver Attach 2 x Long Bottom Rails (P1), 2 x Short Bottom Rails (P2) to Base Panel (P3) with 8 x Bolts (H4) by using a Phillips head screwdriver. Step 2 You will need 20 x Cam Bolts...
- Page 7 Step 3 (H6) (H7) You will need (H6) (H9) 12 x Screws 2 x Runner (H6) Tracks(H7) 2 x Runner Phillips head Tracks(H9) screwdriver Attach 2 x Right Runner Tracks (H9) to Right Side Panel (P5) and 2 x Left Runner Tracks (H7) to Left Side Panel (P4) with 12 x Screws (H6) by using a Phillips head screwdriver.
- Page 8 Step 6 You will need 8 x Cam Nuts Phillips head (H2) screwdriver Insert 8 x Cam Nuts (H2) into holes on (P9) & (P10), rotate the Cam Nuts, so the arrow point towards the incoming Cam Bolts. Attach Left Drawer Side (P9) and Right Drawer Side (P10) to the Drawer Front (P8) &...
- Page 9 Step 9 You will need (H6) (H6) 12 x Screws 2 x Drawer (H10) (H6) Runners (H8) (H8) 2 x Drawer Phillips head Attach 2 x Left Drawer Runners to 2 x Left Drawer Side (P9) and Runners (H10) screwdriver 2 x Right Drawer Runners to 2 x Right Drawer Side (P10) with 12 x Screws (H6) by using a Phillips head screwdriver.
-
Page 10: Job Complete
Step 12 Seek advice from a qualified trades You will need person on how to attach this safety strap to your specific wall. 1 x Washer Phillips head (H11) screwdriver Screw and wall plug which are not provided. Please use appropriate fixtures for your wall.
