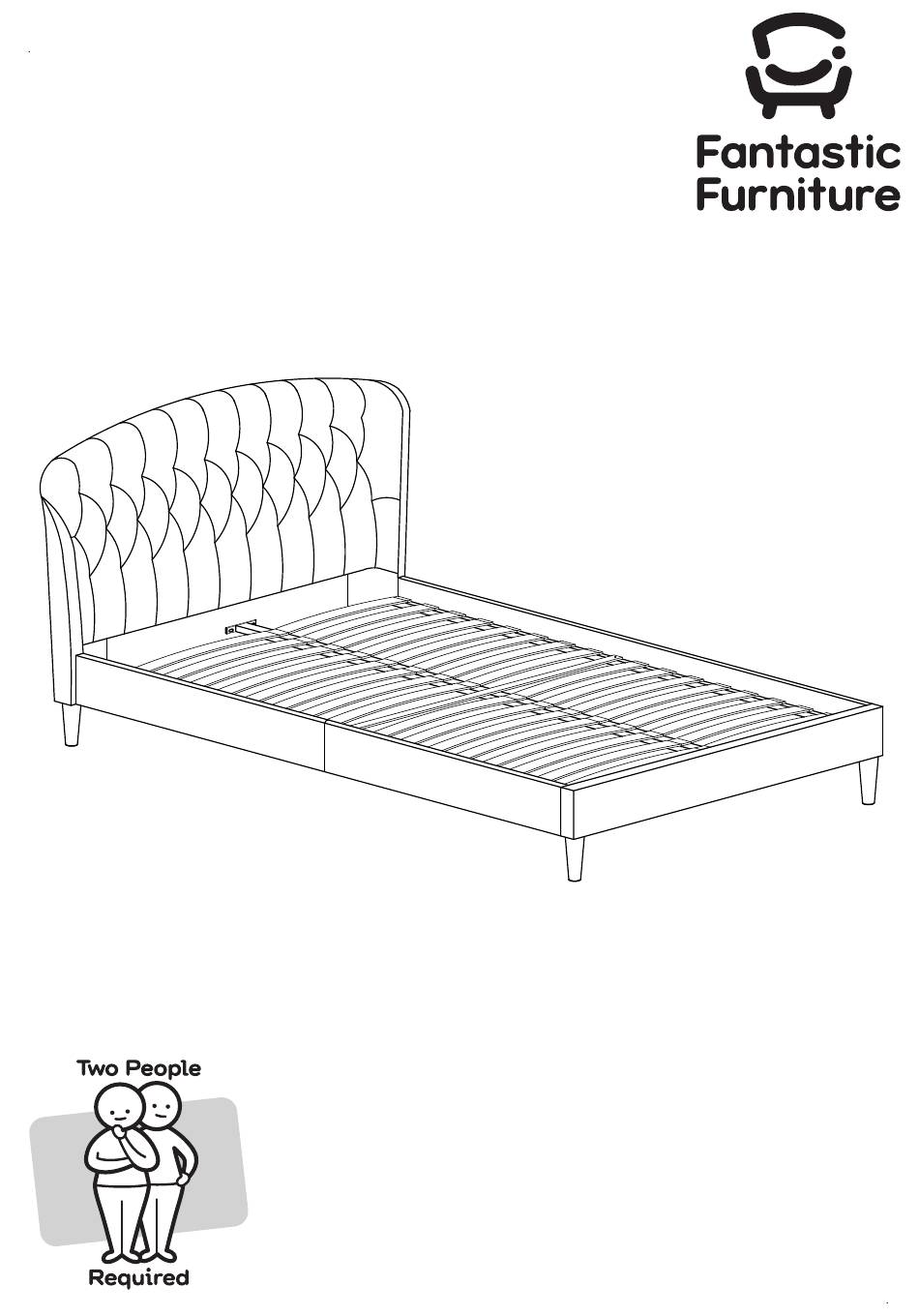

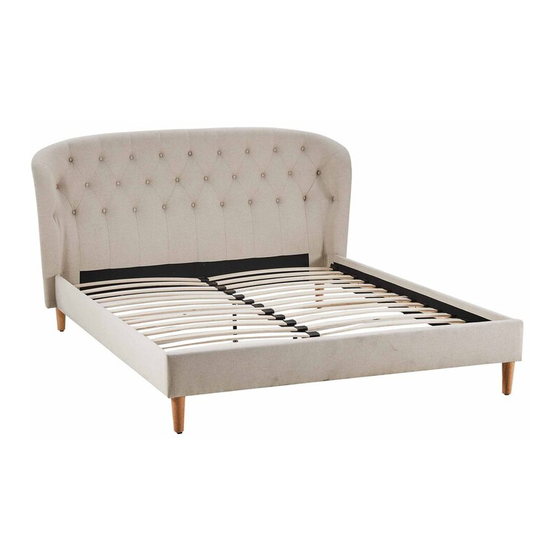

- Page 1 Version 1.0 Carrington Bed Queen fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au fantasticfurniture.com.au...
-
Page 4: What You Need
What you need to assemble the product Headboard (P1) Other tools you need: Side Rail-R (P4) Phillips head screwdriver Headboard and Timber Cross Rail Footboard Legs (P3) (P8) Side Rail-L (P5) Centre Rail (P7) Footboard (P2) Support Legs Support Legs Headboard and (P6) (P6) - Page 5 Step 1 (P1) (P3) (P3) Attach 2 x headboard legs (P3) to the bottom of the headboard (P1) and rotate clockwise to secure. Step 2 (P2) (P3) (P3) Attach 2 x fooboard legs (P3) to the bottom of the footboard (P2) and rotate clockwise to secure.
- Page 6 Step 3 You will need Allen Key x M5 4 x Bolts x 18mm 4 x Bolts x 20mm (H1) (H6) (H2) Headboard Footboard (P1) (P1) (P4) (P5) (H2) (H6) (P4) (P5) (P2) (P2) (P4) (P5) (H6) (H1) Insert 4 x bolts (H2) into the nuts of the headboard (P1) and install 4 x big head bolts (H1) to the brackets of footboard (P2), and tighten two thirds of the way with the allen key (H6) as shown.
- Page 7 Step 4 You will need (H6) 2 x Bolts x 20mm 2 x Washers x M8 Allen Key x M5 (H2) (H2) (H4) (H6) (H4) (P6) (P7) Attach 2 x support legs (P6) to the centre rail (P7) as shown using 2 x bolts (H2) and 2 x washers (H4), tightening with the allen key (H6).
- Page 8 Step 6 You will need 32 x End 16 x Centre (P11) (P11) Connectors Connectors (P10) (P10) (P9) (P9) (P9) 32 x Slats (P11) Connect 2 x End Connectors (P9), 2 x slats (P11) and a Centre Connector (P10) together as shown.
- Page 9 Repeat for every bed slat until finished. Step 7 You will need 1 x Felt Pad Phillips head Screwdriver Allen Key x M5 2 x Screws x 32mm 1 x 40 x 20 x 3mm (not provided) (H6) (H3) (H5) Make sure screws (H3) (P1) are fully tightened.
-
Page 10: Job Complete
Step 8 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 10...
