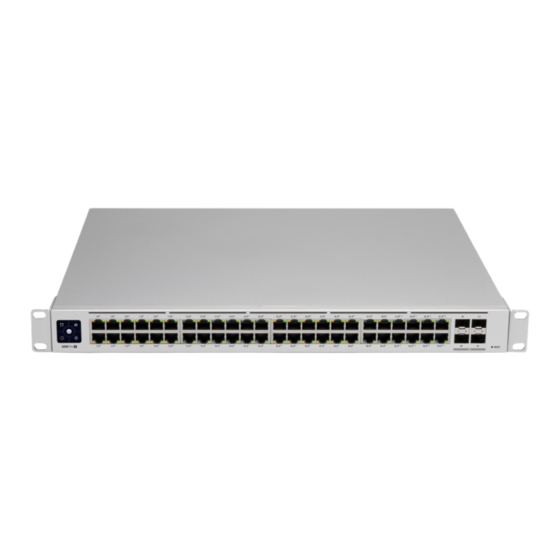

Ubiquiti USW-48-POE Quick Start Manual
Hide thumbs Also See for USW-48-POE:

Advertisement

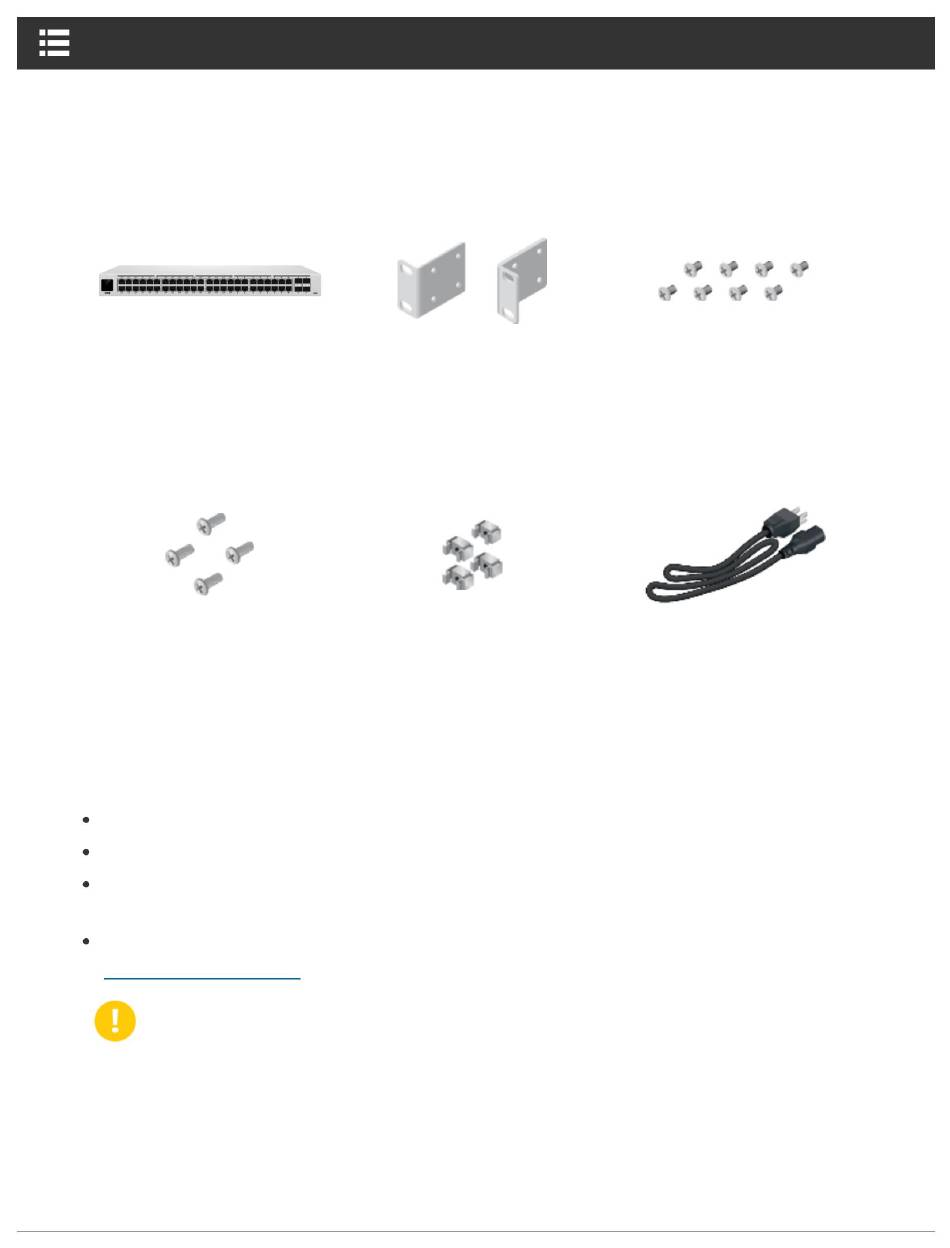

Package content
UniFi Switch
Clamping screws (4)
System Requirements
Linux, Mac OS X or Microsoft Windows
7/8/10 Java Runtime Environment 1.6 (1.8 or later is recommended)
Web browser: Google Chrome (other browsers may have limited functionality).
UniFi Controller Software v5.12.x or later, available at:
ui.com/download/unifi
IMPORTANT:
supporting an uninterruptible power supply to prevent equipment damage
due to local AC power stability issues.
Device Overview
USW-48-POE Quick Start Guide
Rack mount brackets
(qty: 2)
Cage Nuts (Qty: 4)
We strongly recommend using power regulation and
Screw Clamps (8)
Power cord

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USW-48-POE and is the answer not in the manual?

Questions and answers

Summary of Contents for Ubiquiti USW-48-POE

  • Page 1 USW-48-POE Quick Start Guide Package content UniFi Switch Rack mount brackets Screw Clamps (8) (qty: 2) Power cord Clamping screws (4) Cage Nuts (Qty: 4) System Requirements Linux, Mac OS X or Microsoft Windows 7/8/10 Java Runtime Environment 1.6 (1.8 or later is recommended) Web browser: Google Chrome (other browsers may have limited functionality).
  • Page 2 USW-48-POE Quick Start Guide Luces LED Touch screen startup animation Starting. Factory defaults, pending approval. fixed white light Network approval successful and correct operation. steady blue light This indicates you have clicked Locate in the UniFi location animation controller software. The software will also show the location of the device on the map.
  • Page 3: Installation Requirements

    Green Link established at 1000 Mbps USW-48-POE Quick Start Guide Blinking indicates activity SFP Speed/Link/Activity LED (Ports 49 - 52) not connected disabled Link established at 1 Gbps Green Blinking indicates activity RJ45 (ports 1 - 32) RJ45 ports support 10/100/1000 Ethernet connections and an 802.3af/at PoE output.
  • Page 4: Device Installation

    We recommend that you protect your networks from harmful outdoor environments and USW-48-POE Quick Start Guide electrostatic discharge phenomena with Ubiquiti's industrial-grade shielded Ethernet cable. For more details, visit: ui.com/toughcable Note: Although the wiring can be run outside, the UniFi Switch must be stored inside a protective case.
  • Page 5: Power Connection

    USW-48-POE Quick Start Guide Power connection...
  • Page 6: Ethernet Connection

    USW-48-POE Quick Start Guide ethernet connection...
  • Page 7: Sfp Connection

    USW-48-POE Quick Start Guide Note: If you are connecting PoE devices, look at the display to determine the available PoE wattage. SFP connection...
  • Page 8: Software Installation

    USW-48-POE Quick Start Guide For more information on compatible fiber SFP modules, visit: ubnt.link/ UniFi_SFP_DAC_Compatibility Software installation Download and install the latest version of the UniFi driver software at ui.com/download/ unifi and follow the instructions on the screen.
  • Page 9 Note: If you already have UniFi Controller version 5.12.x or later installed, go to the USW-48-POE Quick Start Guide to the "UniFi Switch Deployment" section. Once you have installed the software and run the UniFi Setup Wizard, a login screen for the UniFi Controller management interface will appear.
  • Page 10 USW-48-POE Quick Start Guide 2. On the Devices screen, locate the UniFi Switch in the list of devices in the Model column. To approve the UniFi Switch, click Adopt. 3. The screen will turn blue to confirm successful deployment. specs...
  • Page 11: Safety Instructions

    USW-48-POE USW-48-POE Quick Start Guide With rack mounting brackets 4,61 kg (10,16 lb) Interfaces 48 10/100/1000 RJ45 ports 4 1G SFP Ethernet ports Ethernet and bandwidth Management feeding method 100-240 V AC, 50/60 Hz, universal input Power supply CA/CC, interno, 240 W...
  • Page 12 WARNING: To reduce the risk of fire or electric shock, do not expose the USW-48-POE Quick Start Guide product to rain or moisture. WARNING: Do not use this product in a place where it can be submerged in water. WARNING: Avoid using this product during a lightning storm.
  • Page 13: Online Resources

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions . 1. This device may not cause harmful interference, and 2. This device must accept any interference, including interference that may may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 14 USW-48-POE Quick Start Guide © 2021 Ubiquiti Inc. All rights reserved.
