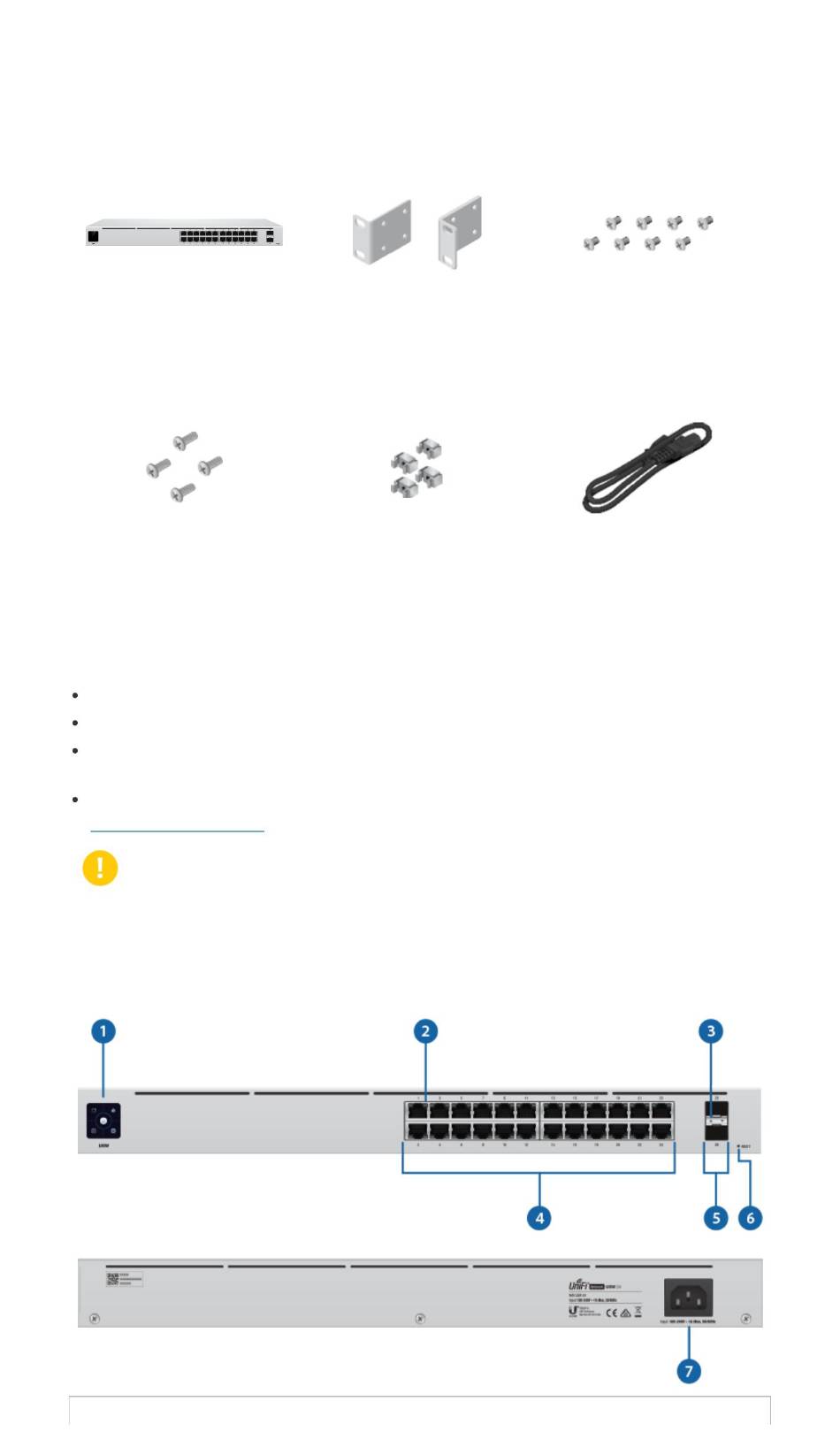

Package content

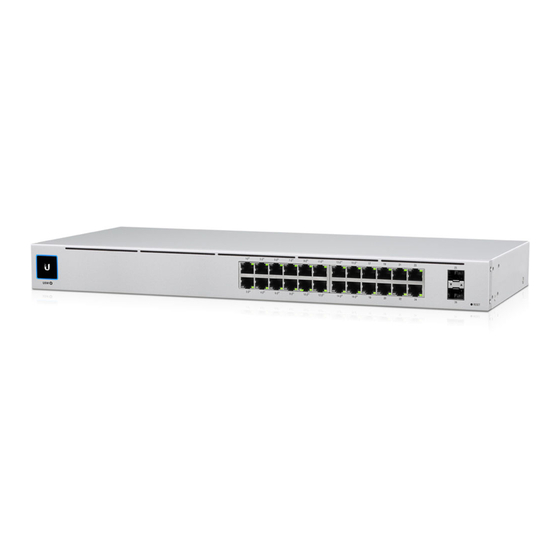

UniFi Switch
Set Screws (Qty: 4) Cage Nuts (Qty: 4)
System Requirements
Linux, Mac OS X or Microsoft Windows 7/8/10
Java Runtime Environment 1.6 (1.8 or later is recommended)
Web browser: Google Chrome (other browsers may have limited
functionality).
UniFi Controller Software v5.12.x or later, available at:
download/unifi
IMPORTANT:
supporting an uninterruptible power supply to prevent equipment damage
due to local AC power stability issues.
Device overview
USW-24 Quick Start Guide
Rack mount brackets
(qty: 2)
We strongly recommend using power regulation and
Bracket Screws (Qty: 8)
Power cord
ui.com/
