USW-48-POE Quick Start Guide
Package Contents

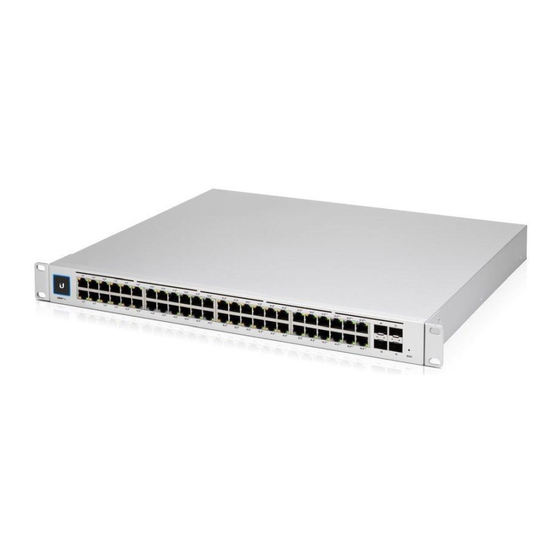

UniFi Switch
Mounting Screws (Qty. 4)
System Requirements
Linux, Mac OS X, or Microsoft Windows 7/8/10
Java Runtime Environment 1.6 (1.8 or newer recommended)
Web Browser: Google Chrome (Other browsers may have limited functionality.)
UniFi Controller software v5.12.x (or newer), available at:
IMPORTANT:
prevent equipment damage due to stability issues with local AC power.
Hardware Overview
LEDs
https://dl.ubnt.com/qsg/USW-48-POE/USW-48-POE_EN.html[02.11.2020 10:38:54]
USW-48-POE Quick Start Guide
Rack-Mount Brackets (Qty. 2)
Cage Nuts (Qty. 4)
We strongly recommend using UPS backup and power regulation to
Bracket Screws (Qty. 8)
Power Cord
ui.com/download/unifi
