Machine Translated by Google

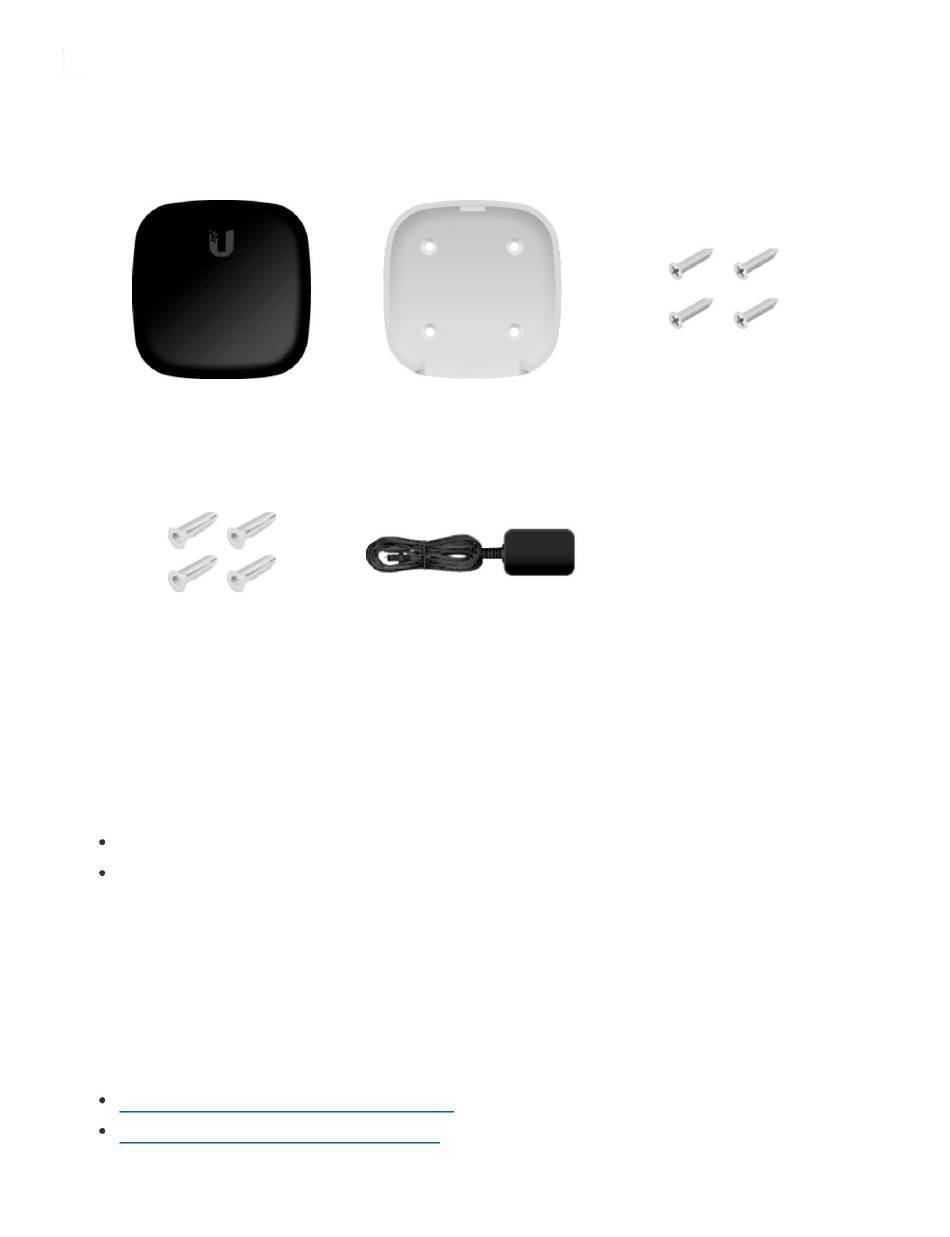

Package content

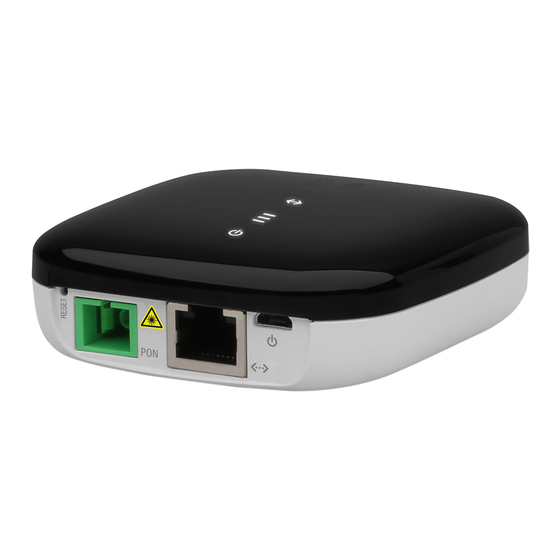

UFiber loco
Screw plugs (qty: 4)
*
Included only in the single package of the UF-LOCO.
System Requirements
Linux, Mac OS X o Microsoft Windows 7/8/10
Web browser: Google Chrome (other browsers may have limited functionality)
Before starting
Designing your first deployment of a GPON network requires specific planning and
knowledge. For more information on designing and installing a GPON network, including
important considerations and best practices, see:
ubnt.link/UFiber-GPON-Getting-Started
ubnt.link/Designing-a-GPON-Network
To learn more about how to configure UFiber devices for the first time to allow the
Optical Network Unit (ONU) LAN ports to provide
UF-LOCO Quick Start Guide
wall mount bracket
power adapter
Micro-USB* (5 V, 1 A)
Screws (qty: 4)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UF-LOCO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti UF-LOCO

Summary of Contents for Ubiquiti UF-LOCO

  • Page 1 Screw plugs (qty: 4) Micro-USB* (5 V, 1 A) Included only in the single package of the UF-LOCO. System Requirements Linux, Mac OS X o Microsoft Windows 7/8/10 Web browser: Google Chrome (other browsers may have limited functionality)

  • Page 2: Hardware Description

    UF-LOCO Quick Start Guide hardware description Reset button The Reset button has two functions for the UF-LOCO: Reset – Quickly press and release the Reset button. All three signal LEDs will flash amber. Restore Factory Default Settings: Press and hold the Reset button for more than five seconds.
  • Page 3 Machine Translated by Google UF-LOCO Quick Start Guide Micro-USB power adapter connects to this port to supply power. ethernet power The RJ45 Ethernet LAN port supports 10/100/1000 Mbps connections and 24V passive PoE to power the device. LED the Ethernet...

  • Page 4: Hardware Installation

    Check the fiber cables and connectors and UF-LOCO Quick Start Guide make sure the OLT is working properly. no authority The UF-LOCO has not been authorized or it cannot communicate with the OLT. Check passwords and OLT settings. Power LEDs disabled...
  • Page 5 Machine Translated by Google UF-LOCO Quick Start Guide...
  • Page 6 Machine Translated by Google UF-LOCO Quick Start Guide...
  • Page 7 Machine Translated by Google UF-LOCO Quick Start Guide...

  • Page 8: Fiber Connection

    Machine Translated by Google UF-LOCO Quick Start Guide fiber connection WARNING: Never look directly into the ends of the fiber or modules. The light they emit can cause eye damage. WARNING: Until ready to use, keep fiber patch cables and modules covered with the included protective caps to ensure connections remain clean.
  • Page 9 Machine Translated by Google UF-LOCO Quick Start Guide LAN connection Power connection...
  • Page 10 UF-LOCO Quick Start Guide Note: The airCube provides Wi-Fi connectivity with a PoE gateway, making it the ideal complement to the UF-LOCO in CPE installations. WARNING: The port switch must meet the power specifications listed in this quick start guide.
  • Page 11 Machine Translated by Google UF-LOCO Quick Start Guide Access to the configuration interface 1. Make sure your computer (or other host system) is connected to the device. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet.
  • Page 12 The device is compatible with most major OLT (Optical Line Terminal) brands and offers four compatibility profiles. By default, the device is set to Profile 1 - UFiber OLT from Ubiquiti. For other brands, manually select Profile 2, 3 or 4. 1. Log in to the UFiber configuration interface.
  • Page 13 Machine Translated by Google 3. On the Network screen, click the System tab. UF-LOCO Quick Start Guide 4. Select the appropriate profile from the OLT Profile dropdown menu: Profile 1 (Profile 1) OLT UFiber from Ubiquiti Profile 2 (Profile 2)

  • Page 14: Safety Instructions

    10 to 90% non-condensing Certifications CE, FCC, IC Included only in the single package of the UF-LOCO. safety instructions 1. Read, follow and save these instructions. 2. Pay attention to all warnings. 3. Only use the devices or accessories indicated by the manufacturer.

  • Page 15: Electrical Safety Information

    Machine Translated by Google product to rain or moisture. UF-LOCO Quick Start Guide WARNING: Do not use this product in a location where it may be submerged in water. WARNING: Avoid using this product during a lightning storm. There is a remote possibility of an electrical discharge caused by lightning.

  • Page 16: Weee Compliance Statement

    Warning: This equipment complies with Class A of CISPR 32. In a residential environment, it may cause radio interference. CE marked The CE marking of this product indicates that the product complies with all applicable directives. WEEE Compliance Statement Declaration of conformity online resources © 2021 Ubiquiti Inc. All rights reserved.
