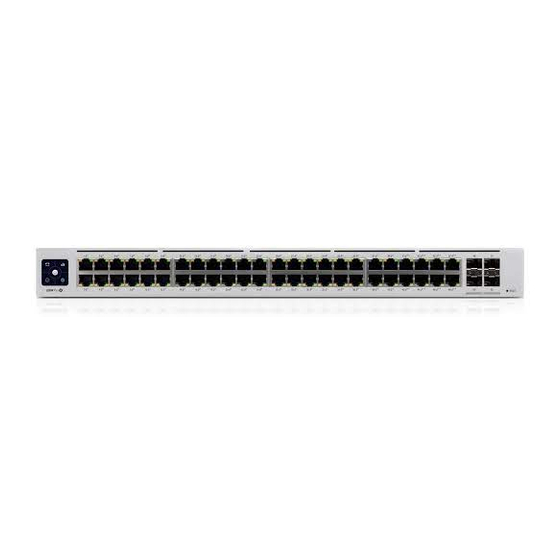

Summary of Contents for Ubiquiti UniFi USW-48-POE

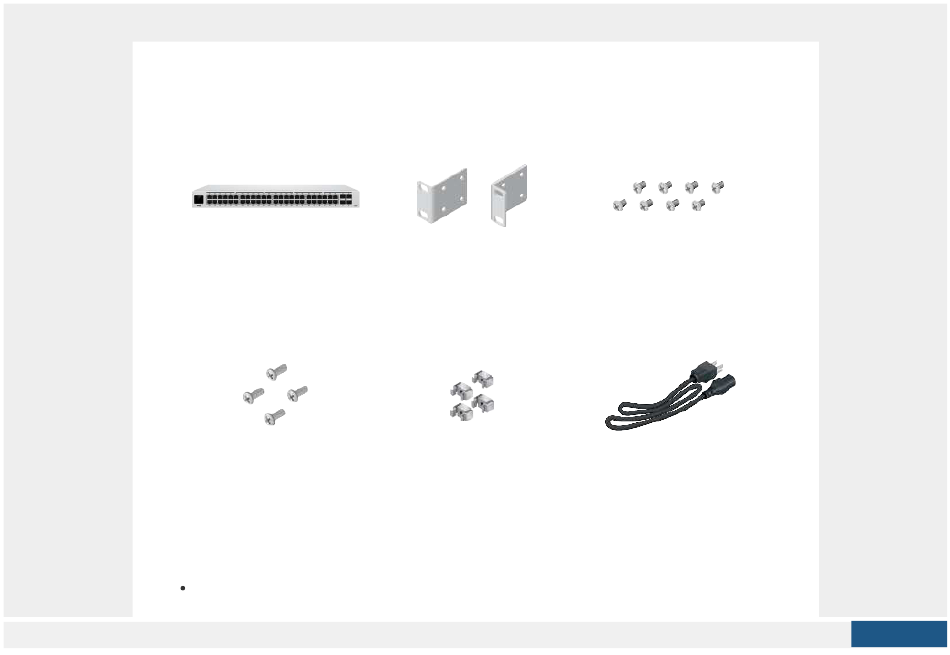

- Page 1 Package Contents UniFi Switch Rack-Mount Brackets (Qty. 2) Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 2: Hardware Overview
Java Runtime Environment 1.6 (1.8 or newer recommended) Web Browser: Google Chrome (Other browsers may have limited functionality.) UniFi Controller software v5.12.x (or newer), available at: ui.com/download/unifi IMPORTANT: We strongly recommend using UPS backup and power regulation to prevent equipment damage due to stability issues with local AC power. Hardware Overview LEDs Touchscreen Display... - Page 3 Bootup Animation Initializing. Steady White Factory defaults, waiting for adoption. Successfully adopted by a network and working Steady Blue properly. This indicates that you clicked Locate in the UniFi Location Animation Controller software. The software will also display the location of the device on the map. RJ45 PoE LED (Ports 1 - 32) No PoE Amber...
-
Page 4: Installation Requirements
Green Link Established at 1 Gbps Flashing Indicates Activity RJ45 (Ports 1 - 32) RJ45 ports support 10/100/1000 Ethernet connections and 802.3af/at PoE output. RJ45 (Ports 33 - 48) RJ45 ports support 10/100/1000 Ethernet connections. SFP (Ports 49 - 52) Hot-swappable SFP ports support 1 Gbps connections. -
Page 5: Hardware Installation
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable Note: Although the cabling can be located outdoors, the UniFi Switch itself should be housed inside a protective enclosure. - Page 6 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 7 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 8 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 9: Connecting Power
Connecting Power Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 10 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 11: Connecting Ethernet
Connecting Ethernet Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 12 Note: If you are connecting PoE devices, check the display to see how much PoE wattage is available. Connecting SFP Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 13 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 14: Software Installation
For information about compatible fiber SFP modules, visit: ubnt.link/UniFi_SFP_DAC_Compatibility Software Installation Download and install the latest version of the UniFi Controller software at ui.com/download/unifi and follow the on-screen instructions. Note: If you already have UniFi Controller v5.12.x or newer installed, skip to “Adopting the UniFi Switch”. - Page 15 After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface. Enter the admin name and password that you created and click Sign In. You can manage your network and view network statistics using the UniFi Controller management interface.
- Page 16 2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model column. To adopt the UniFi Switch, click Adopt. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 17: Specifications
3. The display will turn blue to confirm that it has been successfully adopted. Specifications USW-48-POE Dimensions 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72") Weight 4.52 kg (9.97 lb) With Rackmount Brackets 4.61 kg (10.16 lb) Interfaces Networking (48) 10/100/1000 RJ45 Ports... -
Page 18: Safety Notices
USW-48-POE Power Method 100-240VAC, 50/60 Hz, Universal Input Power Supply AC/DC, Internal, 240W Supported Voltage Range 100 to 240VAC Max. Power Consumption (Excluding PoE Output) LEDs RJ45 Data Ports PoE; Speed/Link/Activity SFP Data Ports Link/Activity ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV Shock and Vibration ETSI300-019-1.4 Standard Operating Temperature... -
Page 19: Electrical Safety Information
1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 20: Limited Warranty
c. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment. d. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection. e. Protective bonding must be installed in accordance with local national wiring rules and regulations. -
Page 21: Declaration Of Conformity
ISED Canada CAN ICES-3(A)/NMB-3(A) Australia and New Zealand Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. - Page 22 © 2020 Ubiquiti Inc. All rights reserved. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
