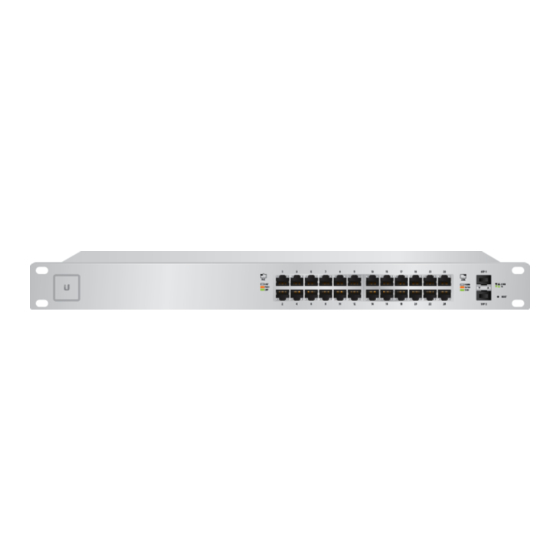

Ubiquiti US-24-250W Quick Start Manual
Hide thumbs
Also See for US-24-250W:
- Quck start gude (23 pages) ,
- Quick start manual (23 pages) ,
- Quick start manual (14 pages)
Table of Contents
Advertisement
Quick Links
US-24-250W Quick Start Guide
Package content
installation requirements
•Phillips screwdriver
•Standard size, 19" rack width with a minimum 1U height •For indoor
applications, use Category 5 (or higher) UTP cabling certified for indoor use. •For outdoor
applications, Category 5 (or higher) shielded cabling must be used for all Ethernet connections
and must be connected to the AC ground of the power supply. •We recommend that you protect
your networks from harmful outdoor environments and electrostatic discharge phenomena with
Ubiquiti's industrial grade shielded Ethernet cable.
For more details, visit:
ui.com/toughcable
Advertisement
Table of Contents
Related Manuals for Ubiquiti US-24-250W
Summary of Contents for Ubiquiti US-24-250W
- Page 1 Category 5 (or higher) shielded cabling must be used for all Ethernet connections and must be connected to the AC ground of the power supply. •We recommend that you protect your networks from harmful outdoor environments and electrostatic discharge phenomena with Ubiquiti's industrial grade shielded Ethernet cable. For more details, visit: ui.com/toughcable...
-
Page 2: System Requirements
System Requirements •Linux, Mac OS X or Microsoft Windows 7/8/10 •Java Runtime Environment 1.6 (1.8 or later is recommended) •Web browser: Mozilla Firefox, Google Chrome, Microsoft Edge or Microsoft Internet Explorer 11 •UniFi Controller v5.4. xo superior hardware description... -
Page 3: Panel Posterior
Panel posterior... -
Page 4: Hardware Installation
hardware installation... -
Page 5: Ethernet Connection
ethernet connection... - Page 6 Use SFP ports For more information on supported fiber SFP modules, visit: community.ubnt.com/unifi...
-
Page 7: Software Installation
Software installation Download and install the latest version of the UniFi driver software at ui.com/download/unifi follow the instructions on the screen. Once you have installed the software and run the UniFi Setup Wizard, a login screen for the UniFi Controller management interface will appear. Enter the administrator name and password you created and click Sign In. - Page 8 Implementing the UniFi Switch 1. From the UniFi controller panel, click Devices on the bar left of the menu. 2. Locate the UniFi switch in the list of devices in the Model column. Click Adopt. 3. The UniFi Switch system LED will turn blue to confirm that the successfully implemented.
- Page 9 Configuring PoE Settings 1. On the Devices screen, locate the UniFi switch. Click on the switch to access its settings. 2. Click the Ports tab. 3. Click Actions for the port you want to configure.
- Page 10 4. Select the appropriate PoE setting: Off, 24V Passive, or PoE+. Then click Apply. For more information, please refer to the user guide located on our website: ui.com/download/ unifi...
-
Page 11: Specifications
Specifications... -
Page 12: Safety Instructions
safety instructions 1. Read, follow and save these instructions. 2. Pay attention to all warnings. 3. Only use the devices or accessories indicated by the manufacturer. electrical safety information 1. It is mandatory to comply with the current, frequency and voltage requirements indicated on the manufacturer's label. - Page 13 limited warranty ui.com/support/warranty The limited warranty requires arbitration to resolve disputes on a case-by-case basis and, where appropriate, specifying arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 14 CE marked WEEE Compliance Statement Declaration of conformity online resources...
