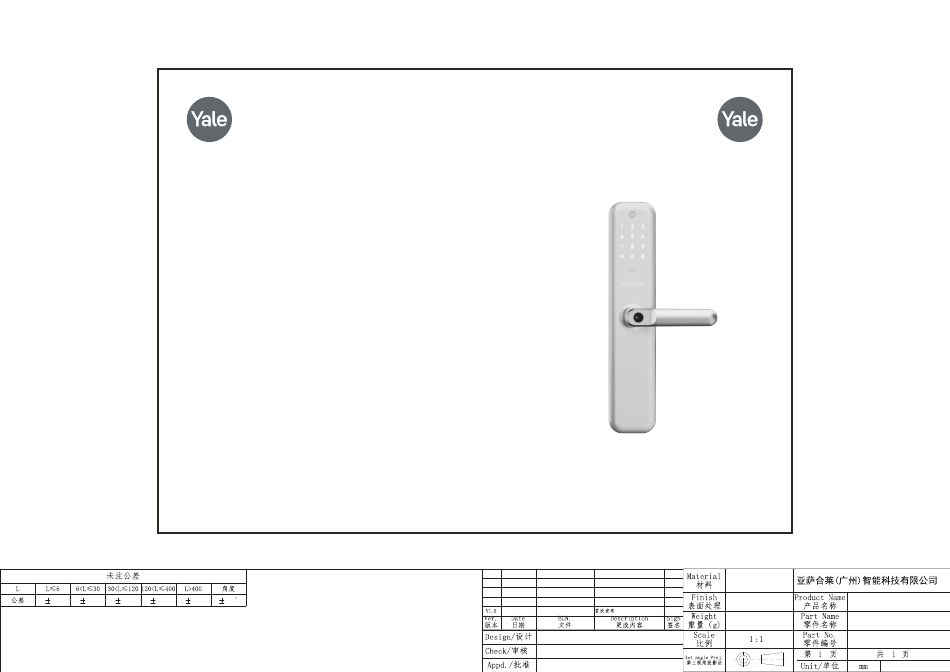

材质： 封面126g铜版纸， 内页100g双胶纸 双面单色印刷 装订册
尺寸： 205*140mm 20页
Part of ASSA ABLOY
0.5
0.5
1.0
2.0
技术要求：
1、产品的材质，刀模裁切位，以签样为准；
2、产品表面无明显脏污，印刷不良不全，印刷模糊，重影，黑点，无明显毛边，变形，褪色等缺陷；
3、未标注公差请参照左上角公差表；
4、未标注尺寸请按图纸备注，所标尺寸为外尺寸；
5、符合RoHS要求;
5.0
0
Digital Door Lock User Guide
* The function and design of this product will be updated without notice
49S00167-V02
to improve the quality.
V4.0
2021.09.09
V3.0
2021.01.13
V2.0
2020.10.14
2020.08.07
Terry
Len，Yin
Michael
Helios S
印刷纸
Terry
删除语音韩文选项 （2处）
Terry
修改客服电话， 调整排版， 内容图标
修改名字，目录
Terry
Terry
2020.08.07
2020.10.14
2020.10.14
Helios S
Helios S 操作说明
49S00167-V01
Advertisement
Table of Contents
Related Manuals for Yale Helios S
Summary of Contents for Yale Helios S
- Page 1 Yale Helios S 操作说明书 材质： 封面126g铜版纸， 内页100g双胶纸 双面单色印刷 装订册 尺寸： 205*140mm 20页 Digital Door Lock User Guide Helios S * The function and design of this product will be updated without notice 49S00167-V02 to improve the quality. Part of ASSA ABLOY 印刷纸...
-
Page 2: Table Of Contents
Content ...........01 1. Product Introduction ...........01 1.1 Product Description ...........02 2. Key Guide ...........02 2.1 Indicator Light Description ...........02 2.2 Icon Description ...........03 2.3 Button Icon Description ...........04 3. Operation Settings ...........04 3.1 Normal Mode ...........06 3.2 Change Mode ...........07 3.3 Master Mode ...........09 4. -
Page 3: Product Introduction
Product Introduction Key Guide 1.1 Product Description 2.1 Indicator Light Description Keypad indicator light, press the button, the corresponding indicator will Front Body Main Body flash; during menu operation, only the light on button is allowed to operate; Battery Cover Figure: Slot for Remote module Keypad... -
Page 4: Button Icon Description
2.3 Button Icon Description Operation Settings This product has two operating modes, normal mode and master Touch the Keypad of the Front Body with your plam to begin mode. The factory default is a normal mode. Press * button on the Keypad 3.1 Normal Mode User can set password like user code, visitor code, onetime code and Press # button on the Keypad... -
Page 5: Change Mode
Automatic Lock Delete all credentials (Card Key) The factory default of the product is "Enable" to automatic lock Delete all Card (automatically lock and open), and the door is in a non-access door state. ① "Disable" Automatic Lock Notice After the operation, the automatic lock is turned off. After the first If a new user password is registered, the old user password will be automatically deleted;... -
Page 6: Master Mode
3.3 Master Mode 3.3.2 System Setting (Master Mode) Master mode is a mode in which only the administrator can set the door Registration process Continue / Complete lock and provide access to other users. 100 users password, 100 user card key, 100 users fingerprint and individual registration and deletion Automatic Lock of one-time passwords enable efficient management of visitors Enable... -
Page 7: Network Module (Optional)
※ Network Module (Optional) Product Function 5.1 How to Open the Door 4.1 Network Module Settings 5.1.1 Use Fingerprint, Pin Code, Card Key to Unlock ① Keypad ② Card Key Reader This product can use a variety of functions through simple settings; confirm the ③... -
Page 8: How To Lock The Door
5.1.3 Unlock the Door with Silent Mode 5.2.3 Indoor Lock Activate the silent mode, unlock the door when using PIN code, fingerprint, cards Use Thumb turn knob to manual lock from inside， it cannot unlock from outdoor, and it needs to unlock form inside. key with silent 5.3 Safe Handle Feature The criminals use a special tools to open the lock by press down indoor... -
Page 9: Emergency Power
Notice 5.3.3 Enable Safe Handle Setting Alarm sound is about 80db, and it will released after 3 minutes. Turn the fixing screw anticlockwise until the safe handle button comes out. 5.4.4 3-minute Lock Out Feature If an invalid user code, fingerprint or card key is entered five (5) times in a row, lock out mode is activated and all button on the front body are not activated for three minutes. -
Page 10: Reset Button
5.7 Reset Button When the system fails, press the reset button to restore the system to normal. Reset button Safety and Warning ① Do not install the digital door lock in an outdoor environment. ② Do not use water and any type of solvent to clean the product such as gasoline or benzene as they can cause damage to electronic circuit, deterioration and or paint peel-off.
